For this very simple radio you need:

a Raspberry zero W
a 5v micro usb power supply or build your own
PCM5102 I2S DAC GY-PCM5102 (ebay)
20x4 lcd display (ebay)
8gb micro sd card
minimal 9 dupont wires
a powered computer speaker set (second hand)

and optional: (some soldering skills needed)

a tactile button or touchpad TTP223B (the red one)
1 or 2 leds and resistors

See the chapter "power supply" if you want to build your own.

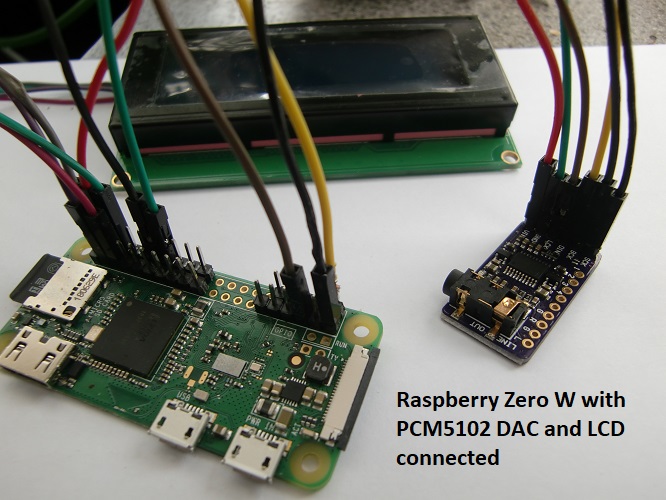

zero_1 rpi_zero_2
