Change RetrieveCertificate so that it resets the enrollment (if it exists) while retrieving the certificate

[maelvls]

This PR implements the design presented in Solution 3: request, then reset if retrieve returns “Click Retry” or “WebSDK CertRequest”.

This PR fixes #239.

Update 29 Nov 2022: I put this PR back to "draft" because I am less and less confident with the changes I am making here. I propose to first agree on a set of RetrieveCertificate tests in #270 before I make any change to it RetrieveCertificate. When we have merged #270, we can proceed with the current PR.
Update 5 Dec 2022: I am now confident with the PR, it can now be reviewed.

---

The problem: When enrolling a new certificate, for example by running vcert enroll or when using cert-manager, people get "stuck" with the error message:

500 Certificate \VED\Policy\Test\foo.com has encountered an error while processing,
Status: This certificate cannot be processed while it is in an error state. Fix any
errors, and then click Retry., Stage: 500.

or:

500 Certificate \VED\Policy\Test\foo.com has encountered an error while processing,
Status: WebSDK CertRequest Module Requested Certificate, Stage: 500.

This message occurs when a past enrollment has failed or an enrollment was still in progress for that certificate. The current workaround is to call to POST /reset with Restart=False, and then re-run the command vcert enroll (or renew the certificate in cert-manager).

The Jenkins build 2378 is passing for 63f7dff.

From a user perspective, nothing changes: the OAuth token scope is the same as before (certificate:manage).

Self-review:

• I went with a "mock" HTTP server due to the difficulty to get the 202 and 500 HTTP status codes "on demand" from TPP. I didn't add a "live test" because I don't know how to consistently force TPP to return a 500 without RDP'ing into the VM and putting a PowerShell script or turning off the Windows CA (it can't be a policy check such as the domain, as this would be a "Stage 0" error which is the only stage number which gets reset upon requesting a new certificate).
  • Fake server: use a fake server to test it, but there is currently no fake server (note that @wallrj started to write a fake server in WIP: Start a fake TPP server and run the TPP tests against it #262). The fake server, as opposed to the mock server, contains some logic.
  • Mock responses: use mock HTTP responses with a mock HTTP server.

Manual test performed:

Apart from the "mock" tests that I added, I also manually tested this change with a live TPP instance:

Reproducing the manual test

1. I spun up a TPP instance on CloudShare (using my Jetstack account), using the template "Master NGINX/K8s Blueprint" (snapshot "[6] training_2020-08-28") that comes with TPP 20.1.

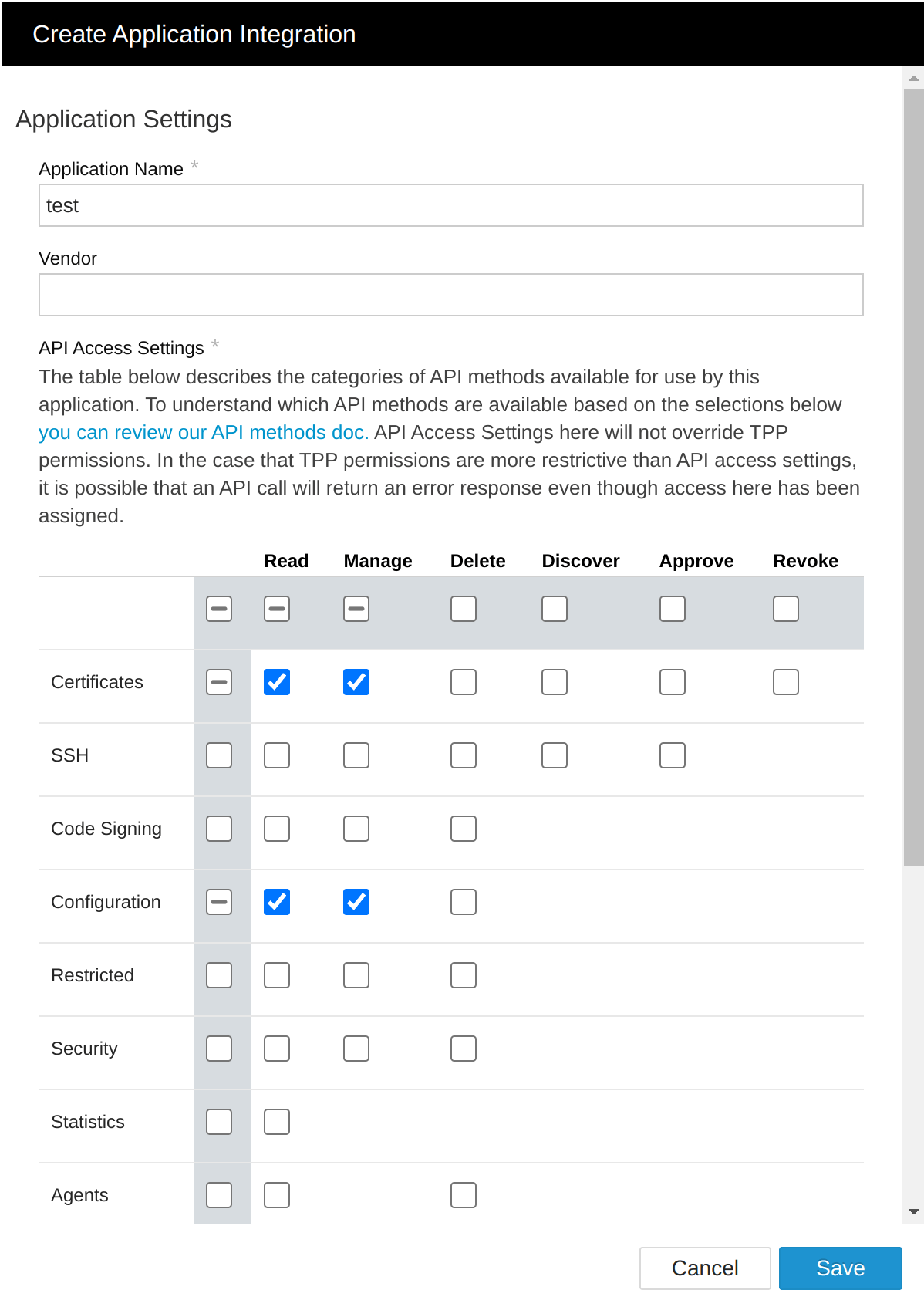

2. I went to https://uvo1dq3vmkecfydcwxm.env.cloudshare.com/aperture/application-integrations/ and create a new API integration, since none of the existing contains configuration:manage (which I need to set the correct policy):


3. I created a token and stored it in the env var TOKEN with the following:

   TPP_URL=https://uvo1dq3vmkecfydcwxm.env.cloudshare.com
   TPP_USER=tppadmin
   TPP_PASSWORD=
   TOKEN=$(vcert getcred -u $TPP_URL --username $TPP_USER --password $TPP_PASSWORD --client-id=test --scope='certificate:manage;configuration:manage' --format json | jq -r .access_token)

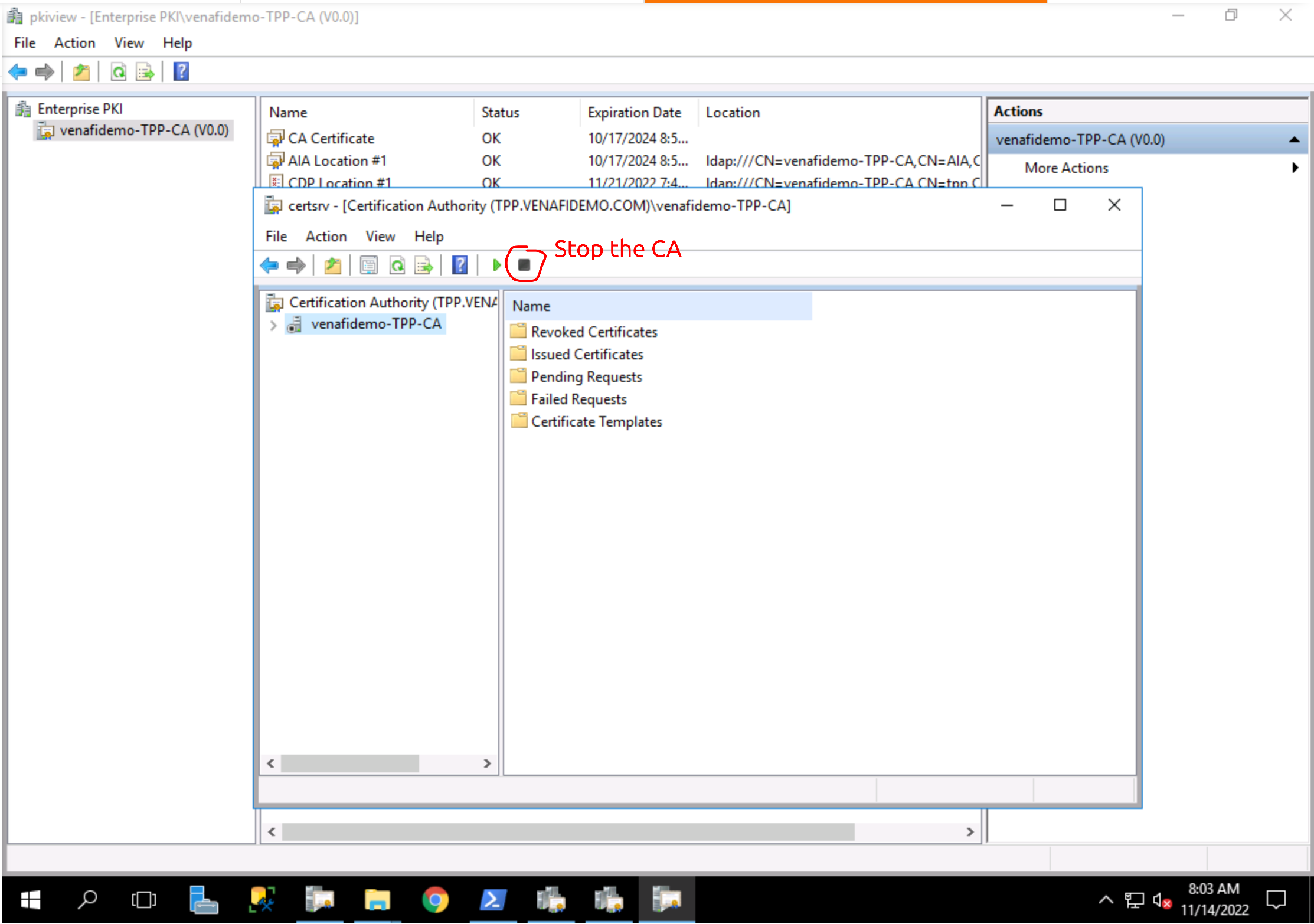

4. Since we need to trigger an enrollment failure at a stage higher than 0, we will purposefully break the CA. To do that, I RDP'ed into the TPP VM, I opened the program certsrv, right-clicked on the only entry, "Manage CA...", and then clicked the "Stop" button:



5. I then enrolled:

   vcert enroll -u "$TPP_URL" -t "$TOKEN" --cn example.com -z 'TLS/SSL' --san-dns=example.com

   As expected, it shows:

   vCert: 2022/11/14 14:58:38 unable to retrieve: Unexpected status code on TPP Certificate Retrieval. Status: 500 Certificate \VED\Policy\TLS/SSL\example.com has encountered an error while processing, Status: Post CSR failed with error: Cannot connect to the certificate authority (CA). Verify that your CA template settings are correct and that the remote server is available. For more information, search the Help system for Configuring the Microsoft Certificate Services Template Object., Stage: 500.

6. If we try to submit the certificate again, we still get the error at stage 500 (weirdly, the original disappeared and a generic message appears instead):

   vCert: 2022/11/14 14:59:43 unable to retrieve: Unexpected status code on TPP Certificate Retrieval. Status: 500 Certificate \VED\Policy\TLS/SSL\example.com has encountered an error while processing, Status: This certificate cannot be processed while it is in an error state. Fix any errors, and then click Retry., Stage: 500.

7. I then fixed the CA:



8. I then tried to enroll again, and the "old" error with the sage 500 still shows:

   vCert: 2022/11/14 15:06:30 unable to retrieve: Unexpected status code on TPP Certificate Retrieval. Status: 500 Certificate \VED\Policy\TLS/SSL\example.com has encountered an error while processing, Status: This certificate cannot be processed while it is in an error state. Fix any errors, and then click Retry., Stage: 500.

9. Now, from this project's folder, let us run vcert with the changes made in this PR:

   git fetch origin refs/pull/269/head:reset-before-request
   git checkout reset-before-request
   go run ./cmd/vcert enroll -u "$TPP_URL" -t "$TOKEN" --cn example.com -z 'TLS/SSL' --san-dns=example.com

   This time, the certificate gets properly requested.

Changes in error messages: this PR purposefully doesn't change any of the error messages.

Possible breakages to other projects:

• ✅ terraform-provider-venafi uses RetrieveCertificate in three locations. One of them matches on the following specific error message:

  "unable to retrieve: Unexpected status code on TPP Certificate Retrieval. Status: 400 Failed to lookup private key, error: Failed to lookup private key vault id"

  I added a test proving that this same error message will be shown in the same ciscumstances.
• ✅ vault-pki-backend-venafi won't be affected since it doesn't parses messages. It uses RetrieveCertificate once.
• ✅ cert-manager has a single call to RetrieveCertificate and doesn't look at the messages.

[inteon]

Thank you for fixing the remaining issues.

[rvelaVenafi]

There are too many unnecessary calls to reset if set unconditionally.
The logic to reset based on the request response is better and not more complex than this PR.
Just move this code to a separate function and validate the request response when statusCode == 500 and msg is the same as the expected JSON blob.
You can even wrap the current logic into another function with a boolean parameter

func (c *Connector) RequestCertificate(req *certificate.Request) (requestID) (requestID string, err error) {
        // first try with reset
        id, err := RequestCertificateWithReset(req, true)
        if err != nil && err == CertResetError{
                 // Second try with no reset
                 id, err := RequestCertificateWithReset(req, false)
        }
}

Then have the actual code be moved to a second internal function:

func (c *Connector) RequestCertificateWithReset(req *certificate.Request, reset bool) (requestID) (requestID string, err error) {
    // Current RequestCertificate logic here

   	requestID, err = parseRequestResult(statusCode, status, body)
	if err != nil {
                 if reset {
		        //invoke reset logic here
                         err = resetCertificateResource(certDN, false)
                         if err != nil {
                                 // error that happened during reset
                                 return "", err
                         }
                         // This error indicates the caller function that request failed because of 500 and a reset was attempted
                         return "", CertResetError
                 }
                 // return normal error
                 return "", err
	}
}

This way we can minimize the number of extra calls required for this use case

[maelvls]

The logic to reset based on the request response is better and not more complex than this PR.

I forgot to mention in the PR description that it is not possible to use POST /request as a mean to know whether this certificate should be reset.

The reason it is not possible is that POST /request always succeeds as long as the given CSR or certificate parameters are valid. Calling POST /request doesn't allow you to know whether POST /reset needs to be called or not. I have elaborated a bit on that in #269 (comment).

[maelvls]

I finished implementing Solution 3: request, then reset if retrieve returns “Click Retry” or “WebSDK CertRequest”. Please take another look.

[luispresuelVenafi]

@maelvls Why are resetting the certificate before enrollment and during the same workflow? As it is, it would make unnecessary call to TPP. It would be better as, what other team members already suggested, to add this command in an error logic, so it doesn't interrupt the workflow and only to make the call if the certificate that have errored by being in an bad status; e.g.:
pseudo code:

statuscode, err = request
if err and status = 500 {
 resetCertiicate() // reset certificate only on failure
}

[maelvls]

(from #269 (comment)) It is not possible to use POST /request as a mean to know whether this certificate should be reset. The reason it is not possible is that POST /request always succeeds as long as the given CSR or certificate parameters are valid. Calling POST /request doesn't allow you to know whether POST /reset needs to be called or not. I have elaborated a bit on this in #269 (comment).

[maelvls]

This PR made it into vcert v4.23.0. We can now close #239.

Update: this change was reverted in 4.24.0.

[maelvls]

This improvement was reverted in 4.24.0 (and later versions). You can read #273 (comment) to learn more.
