Parameter Reference

Parameter Reference

The test parameters panel has been extended to allow setting of parameters values during runtime by reference to other JSystem components.

Parameters values can refer to:

• RunProperties properties.
• Summary properties.
• Sut file.
• Random value by range (for numerical values).
• Random value from group.

The parameter types that can be referenced are: Strings, File, Date, Integer, Long, Float, Double. Value parameter types such as: enum, or boolean cannot have reference in them.

The general syntax for reference is: ${<Type>:<reference>}

Working with Parameter Values - Reference Example

In order to work with parameters values references, perform the following:

1. Write a test with parameter.
2. In JRunner select the test and add it to the scenario.
3. Open the parameters panel of the test.
4. Add a reference.

5. Zoom in:

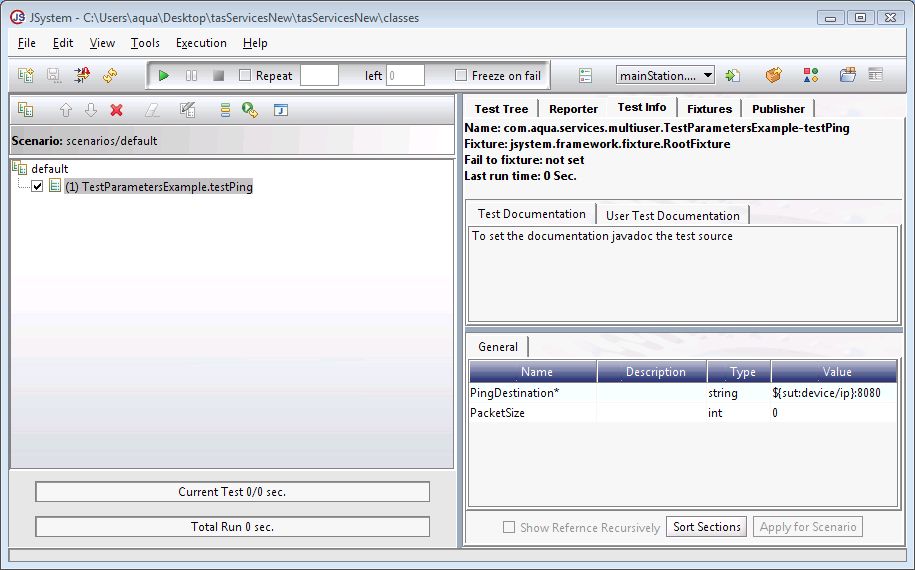

6. In this example we added a reference to the SUT file

At run time, before test is executed, the system will go to the SUT file, to the Xpath "device1/ip" and will replace "${sut:device1/ip}" with the value found in the SUT file.

RunProperties and Summary:

"RunProperties" and the "Summary" file can be accessed in the code as follows:

RunProperties.getInstance().setRunProperty(key,value).
Summary.getInstance.setProperty(key,value).**

The values can be gathered later on by using the parameters: ${run:\<key\>} or ${summary:\<key\>} accordingly.

Code Example

RunProperties.getInstance().setRunProperty("RunKey1","12");
Summary.getInstance.setProperty("SummaryKey1","C:\Program Files\");

JRunner parameter value: ${run:RunKey1} and ${summary: SummaryKey1}

Reference: More information on Run and Summary properties can be found in the Run and Summary Properties section.

SUT File:

The current SUT file tags can be accessed using the correct Xpath. The syntax is ${sut:<xpath>}

SUT Code Example

<sut>
    <device1>
         <class>sysobj.Device1</class>
         <password>guy</password>
    </device1>
     <obj>enter user name</obj>
</sut>

JRunner Parameter Values

${sut:device1/password}

${sut:obj}

Randomization

By Range - (for numerical parameters only) A number can be selected randomly within a given range. Syntax: ${random:\<Low Value\>:\<High Value\>}|

Code Example

${random:1:15}
${random:125.66:130.12}

From Group - (for all parameters) a value will be selected randomly from a given group. Syntax: ${random:(First Value;Second Value;Third Value…)}

Code Example

${random:(1;2;12;99)}
${random:("C:/Jsystem";"C:/Automation)}
