Scripts.Movement

Scripts - Movement

Requirements

Now requires that you make use of the "RainDropEffect" scripts that can be found here:

• https://github.com/EdoFrank/RainDropEffect or
• https://www.assetstore.unity3d.com/en/#!/content/59986

Both of the above are free.

What does this do?

---

Allows a player object to move around based on keyboard/controller input. Will play animations on Animators.

Who/What is this for?

---

This is for the player object only.

Setup

---

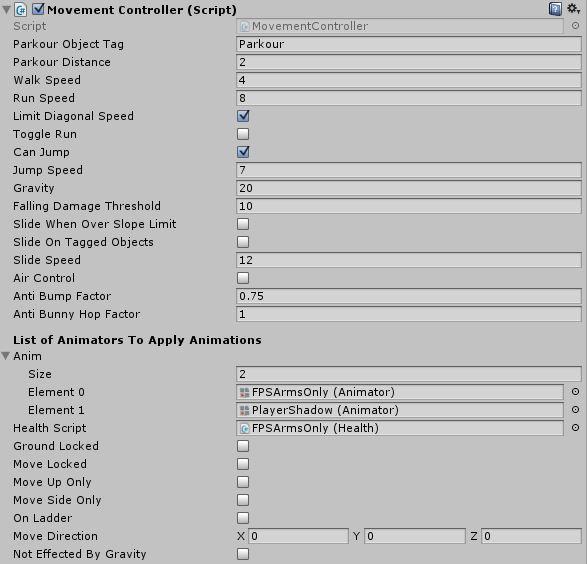

Example Movement Controller Setup:

Parameter	Type	Description
Parkour Object Tag	string	Tag name. Objects tagged with this will be able to be jumped or hurdled.
Parkour Distance	float	Raycast distance. How close you have to be to the tagged object to parkour on it.
Walk Speed	float	Move speed when not running.
Run Speed	float	Move speed when running.
Limit Diagonal Speed	bool	Prevent/Allow moving faster when holding down forward and sideways keys at the same time.
Toggle Run	bool	Legacy. Allow/Disallow toggling running.
Can Jump	bool	Allow/Disallow vertical movement when pressing the jump key.
Jump Speed	float	How fast/How high you will move vertically when pressing the jump key.
Gravity	float	How fast the player object will fall.
Falling Damage Threshold	float	How far the player object can fall before losing health. (Requires "Health" script to be attached at the same level)
Slide When Over Slope Limit	bool	Fall along object when character controller slope limit exceeded. (Requires character controller)
Slide On Tagged Object	bool	Tag Name. Tagged object will cause the player to continue to move in movement direction for a period of time.
Slide Speed	float	Move speed of the player to continue to move after not pressing any key.
Air Control	bool	Allow the player object to change direction in mid air.
Anti Bump Factor	float	Prevent jittering effect. Default value sufficient but change if jittering occurs. Only use on as needed basis.
Anit Bunny Hop Factor	float	Prevents a bouncing effect when holding the jump key.
Anim	Animator List	Mecanim Animator list to apply animation to when moving.
Health Script	Script	Apply the health script here. No other script will work.
Ground Locked	bool	Can/Cannot leave the ground.
Move Locked	bool	Can/Cannot move in any way.
Move Up Only	bool	Can/Cannot move in X,Z direction (Locks camera as well).
Move Side Only	bool	Can/Cannot move in forward or backward motion (locks camera as well).
On Ladder	bool	If enabled can only move up or down. Locks camera to only allow looking up or down.
Move Direction	Vector3	Legacy. Do not add anything here. For script access only.
Not Effected By Gravity	bool	To ignore the effect of gravity or not.

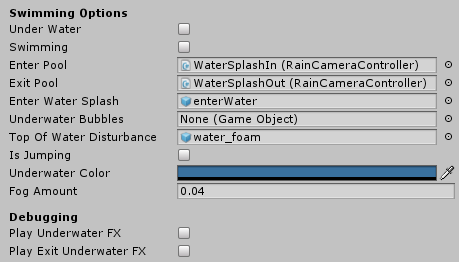

Under Water	bool	Debugging purposes. If underwater or not
Swimming	bool	Debugging purposes. If enabled will move in direction camera is facing
Enter Pool	RainCameraController	Requires external package. Play the bubbles effect from this package
Exit Pool	RainCameraController	Requires external package. Play the rain streaks effect from this package
Enter Water Splash	ParticleEffect	Play this effect when entering water
Underwater Bubbles	ParticleEffect	Continuously play this effect while underwater is true
Top of Water Disturbance	ParticleEffect	Continuously play this effect while swimming is true but underwater is false
Is Jumping	bool	Legacy? Just tells when the jump key is pressed
Underwater Color	Color	Apply this color to the underwater fog
Fog Amount	float	How thick the underwater color will be
Play Underwater FX	bool	Debugging. Play the bubbles effect
Play Exit Water FX	bool	Debugging. Play the rain streak effect
