Solving-Differential-Equations-using-Neural-Networks-

Consider the first order ODE: dΨ(x)/dx = f(x, Ψ) (1)

with x ∈ [0, 1] and with the Initial Condition Ψ(0) = A.

A trial solution is written as: Ψtrial(x) = A + xN(x, p)
where N(x, p) is the output of a ANN with one input unit for x and weights p.
Now all we need is a loss function, Ψtrial(x) is the solution of the differential equation

d Ψtrial(x) /dx ≈ f(x, Ψtrial)
d Ψtrial(x) /dx - f(x, Ψtrial) ≈ 0 (2)

we are trying to do is get (2) close to zero, then our trial solution approximates the analytical solution to a great accuracy.

So we define the loss function as:

LOSS = ∑{ (d Ψtrial(x) /dx) - f(x, Ψtrial) }2    for all x ∈ [0, 1]

Now we can use this loss to compute the gradients and do weight updation

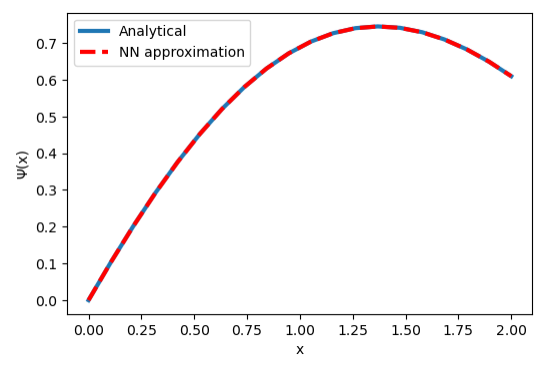

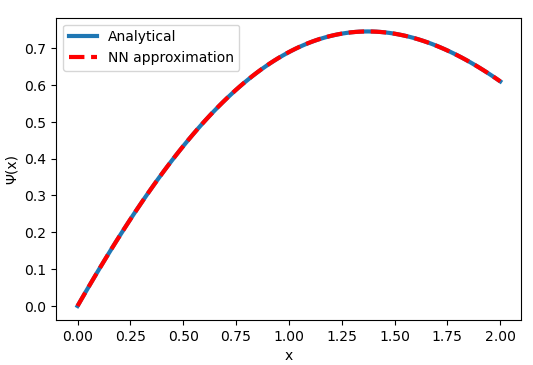

Question 1

  Ψ(0) = 0 and x ∈ [0, 2]

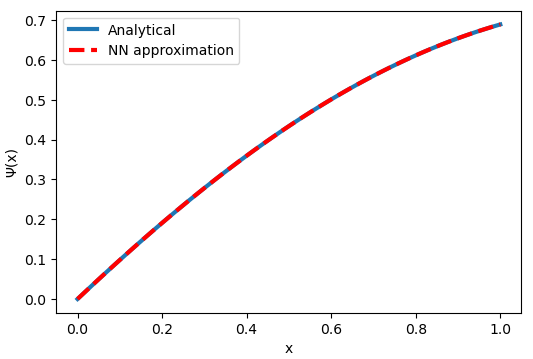

Question 2

  Ψ(0) = 1 and x ∈ [0, 1]

Consider the 2nd order ode:

d²Ψ(x)/dx² = f(x, Ψ, dΨ/dx)

The loss function is same as in the case of first order ode

Question 3

  Ψ(0) = 1, dΨ(0)/dx = 1, x ∈ [0, 2]

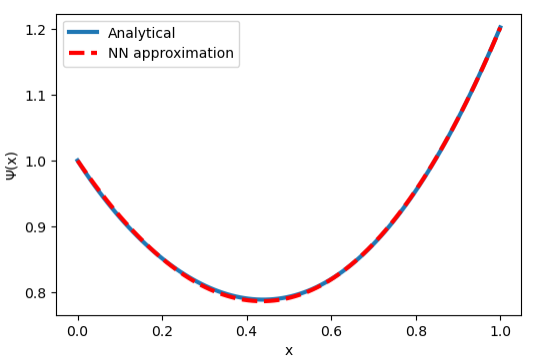

Question 4

  Ψ(0) = 1, Ψ(1) = sin(1)*e^(-1/5), x ∈ [0, 1]
