Vault

A self-hosted personal document management system. Upload files, tag, and search by text, set reminders, and export bundled items in a zip.

---

---

Features

• File management — Upload PDFs, images, scans, and receipts. Files are automatically tagged on upload with their filetype.
• OCR & text extraction — Automatic text extraction from images and PDFs via ocrmypdf + Tesseract
• Full-text search — PostgreSQL native full-text search with GIN-indexed tag filtering
• Thumbnails — Spawns async workers
• Bundles — Bundle your files
• Reminders —
• Self-hosted — No subscriptions

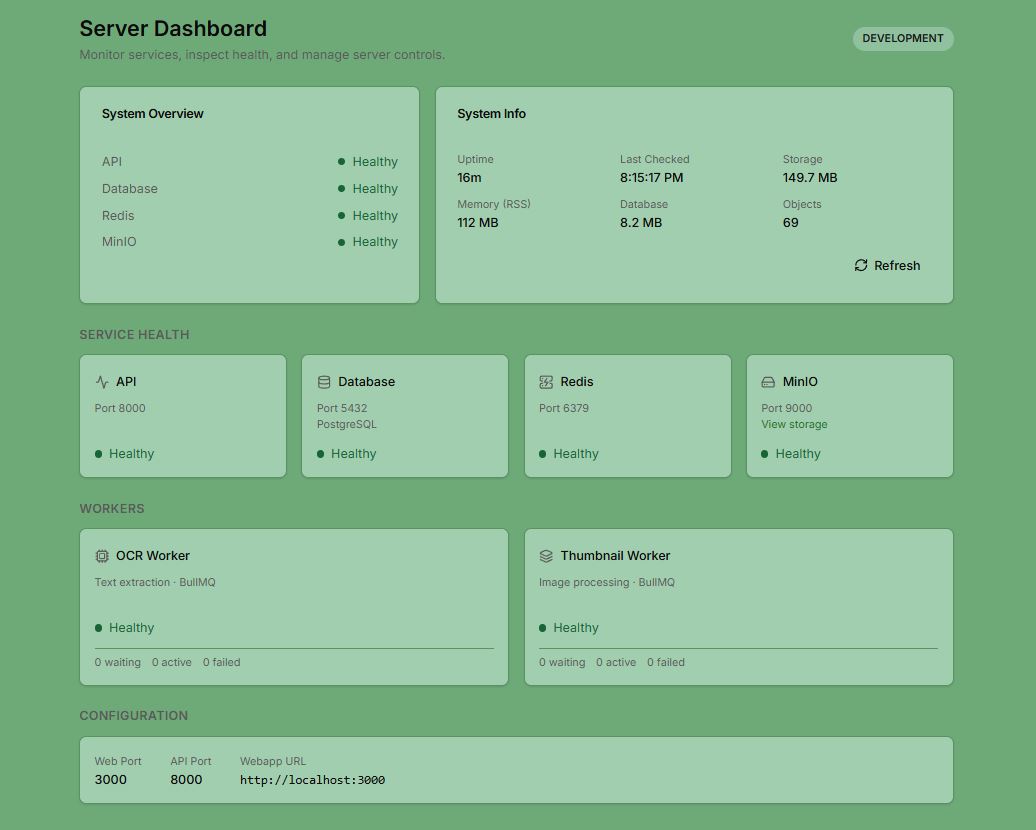

• Server dashboard — Monitor service health from a built-in dashboard

---

Tech Stack

Layer	Technology
Frontend	Next.js 16, React 18, TypeScript, Tailwind CSS 4, Radix UI
Backend	Fastify 4, Node.js ≥18.18, TypeScript
Database	PostgreSQL 16 (Prisma ORM)
Queue	BullMQ + Redis 7
Storage	MinIO (S3-compatible)
OCR	ocrmypdf, Tesseract, Ghostscript, qpdf
Image processing	Sharp, heic-convert, @napi-rs/canvas
Auth	JWT (access + refresh tokens), Argon2 password hashing

---

Project Structure

vault/
├── apps/
│   ├── api/          # Fastify REST API + BullMQ workers
│   └── web/          # Next.js frontend
├── packages/
│   ├── db/           # Prisma schema and client
│   └── types/        # Shared TypeScript types
├── infra/
│   └── docker/       # Dockerfiles and Compose configs
├── docs/             # OpenAPI spec, README screenshots
├── test-results/     # Generated HTML test reports
└── scripts/          # Install and run Docker containers on linux and windows

---

Local Setup

Windows

git clone https://github.com/rkcabell/vault.git
cd vault
vault-windows.bat

Double-click vault-windows.bat from the repo folder at any time — installs on first run, starts Vault on subsequent runs. Docker Desktop does not need to be pre-installed. If it was just installed, the script will ask you to restart and re-run.

Linux / macOS

git clone https://github.com/rkcabell/vault.git
cd vault
bash vault.sh

Run bash vault.sh at any time — installs on first run, starts Vault on subsequent runs. Requires Docker to be installed (Docker Desktop or Docker Engine).

---

Manual setup (advanced)

1. Install dependencies

pnpm install

2. Start infrastructure

pnpm run localdocker
# or: docker compose -f infra/docker/docker-minimal.yml up -d

Service	URL	Credentials
PostgreSQL	localhost:5432	see docker-minimal.yml
Redis	localhost:6379	—
MinIO API	http://localhost:9000	see docker-minimal.yml
MinIO Console	http://localhost:9001	see docker-minimal.yml

MinIO bucket: Log into the console at http://localhost:9001 and create a bucket named vault-media.

3. Configure environment

Create apps/api/.env:

NODE_ENV=development
HOST=127.0.0.1
PORT=8000
CORS_ORIGIN=http://localhost:3000

POSTGRES_URL=postgresql://<user>:<password>@localhost:5432/vault?schema=public

# Generate with: openssl rand -hex 32
JWT_SECRET=<your-secret>
JWT_REFRESH_SECRET=<your-refresh-secret>

S3_ENDPOINT=http://localhost:9000
S3_PUBLIC_ENDPOINT=http://localhost:9000
S3_REGION=us-east-1
S3_ACCESS_KEY_ID=<minio-access-key>
S3_SECRET_ACCESS_KEY=<minio-secret-key>
S3_BUCKET=<your-bucket-name>

REDIS_URL=redis://localhost:6379

4. Set up the database

pnpm run prismagen      # Generate Prisma client
pnpm run prismigrate    # Apply migrations

5. Start development servers

pnpm run boot

Alternatively, run each process in a separate terminal:

pnpm run api:dev              # API server   → http://localhost:8000
pnpm run web:dev              # Web app      → http://localhost:3000
pnpm -F api run worker:dev    # OCR + thumbnail workers

---

Available Scripts

Development

Command	Description
pnpm run boot	Start API + web + worker in dev mode (hot reload)
pnpm run start	Build, start infrastructure, and run API + web + worker
pnpm run api:dev	Start API server only (hot reload)
pnpm run web:dev	Start web app only (hot reload)
pnpm -F api run worker:dev	Start background workers only (hot reload)

Build & quality

Command	Description
pnpm run build	Build all packages
pnpm run lint	Run ESLint across API and web
pnpm run sweep	Clean, lint, and build all packages
pnpm run clean	Remove Next.js build output

Testing

Command	Description
pnpm run test	Run full test suite (API + web)
pnpm run test:api	Run API tests and generate HTML report
pnpm run test:web	Run web tests
pnpm run coverage	Run tests with coverage report

Database

Command	Description
pnpm run prismagen	Regenerate Prisma client
pnpm run prismigrate	Apply database migrations
pnpm run prismareset	Reset database — destructive

Infrastructure

Command	Description
pnpm run localdocker	Start local infrastructure (Postgres, Redis, MinIO)
pnpm run docker:build	Build images and start full Docker stack
pnpm run docker:rebuild-clean	Rebuild images without cache and start stack
pnpm run dockerup	Start full Docker stack (no build)
pnpm run dockerdown	Stop full Docker stack
pnpm run docker:logs	Tail Docker compose logs

---

Full Docker Stack

To run the entire application in Docker (API, web, workers, and all infrastructure):

pnpm run docker:build
# or: docker compose -f infra/docker/docker-compose.yml up -d --build

Configure services using .env.docker at the repo root. The Dockerfile supports three build targets: api, web, and jobs.

Services

Service	Role	Exposed port
api	Fastify REST API	8000
web	Next.js frontend	3000
nginx	Reverse proxy — routes /api/* to API (prod only)	80
jobs-ocr	OCR text extraction worker	—
jobs-thumb	Thumbnail generation worker	—
postgres	PostgreSQL database	5432
redis	Job queue backing store (BullMQ)	6379
minio	S3-compatible object storage	9000 / 9001
minio-init	One-time bucket creation (exits after init)	—

---

API

The REST API runs on http://localhost:8000. An OpenAPI specification is available at docs/api/openapi.yml.

Key endpoint groups:

Prefix	Description
/api/auth	Registration, login, token refresh
/api/media	Upload, list, search, update, delete files
/api/bundles	Create and manage bundles
/api/reminders	Create and manage reminders
/api/tags	List tags with usage counts
/api/profile	User profile management

---

License

PolyForm Noncommercial License 1.0.0 — free for personal and noncommercial use.
