MINIRT START 2023.05.31.

📖 Table of Contents

Table of Contents

1. Scene Examples
2. Support Operating Systems & Requirements
3. How to Install & Build
4. Project Structure Summary
5. How to implement Viewport
6. How to implement Objects
7. How to implement Lights
8. GUIDE for .rt format
9. Developers

---

Scene Examples

1. scenes/universe.rt

2. scenes/test1.rt

3. scenes/snowman.rt

4. scenes/among.rt

---

💻 Support Operating Systems & Requirements

1. OS

•

2. Requirements

• MiniLibX : https://harm-smits.github.io/42docs/libs/minilibx/getting_started.html

---

How to Install & Build

$ git clone https://github.com/minishell-yecseo/miniRT
$ cd miniRT
$ make bonus
$ ./miniRT_bonus <TEST.rt>

miniRT_bonus takes only one *.rt file as an input. So, you must write an *.rt file according to the guide below. If the file has error, the program should notice you the number of line of the first error.

---

Project Structure Summary

• Viewport & Camera with Rays
• Objects
• Lights

---

How to implement Viewport

---

How to implement Objects

For all rays, We can represent a point on a ray with camera's origin, ray direction, and t that decide length of ray. In a mathmatical expression,

• O = camera's origin == ray's origin
• v̂ = ray's normalized 3dimension direction vector
• t = length from Origin

P = O + tv̂

reference : http://www.illusioncatalyst.com/notes.php

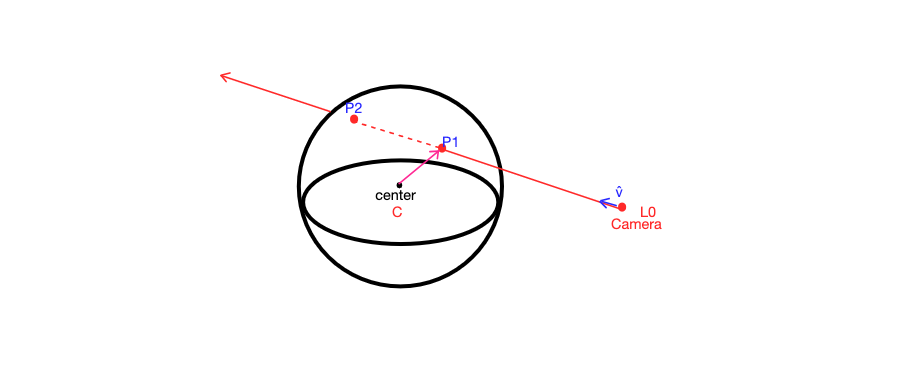

• Sphere

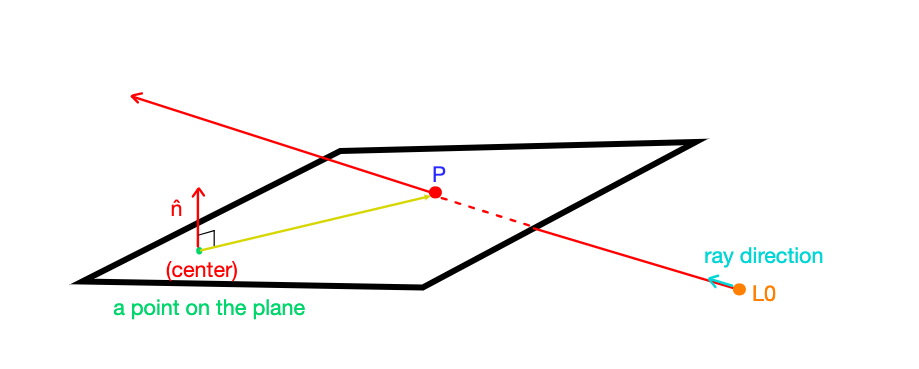

• Plane

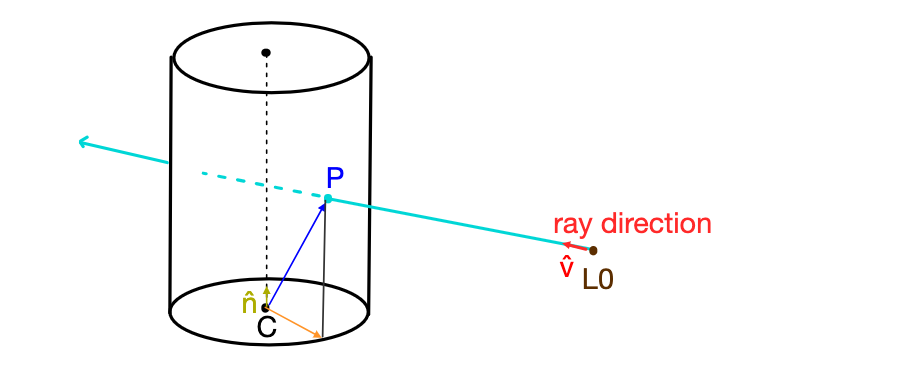

• Cylinder

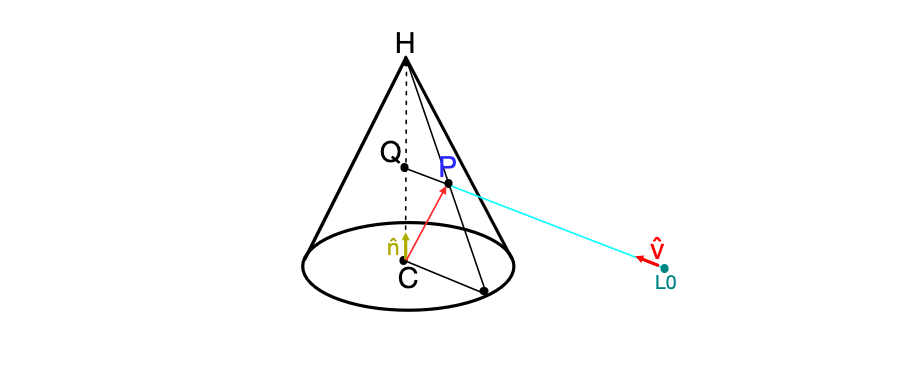

• Cone

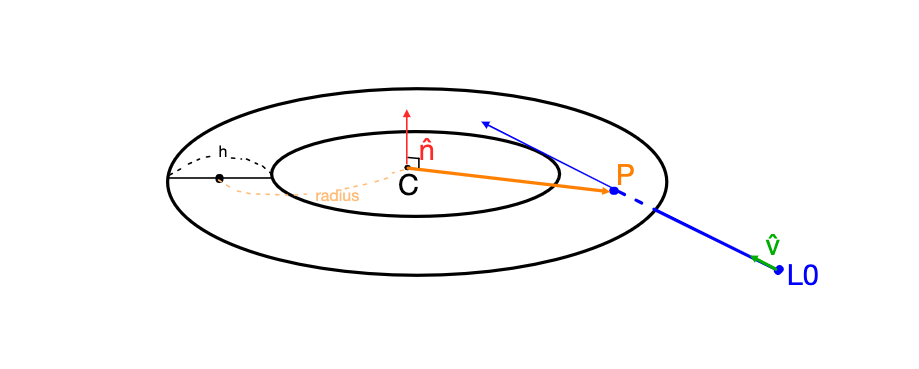

• Circle



---

How to implement Lights

---

GUIDE for .rt format

BONUS .rt FORMAT GUIDE

1. A, C are same with mandatory part.
2. L

• You can make lights more than one up to 1000.
• color can be specified.

3. Others (Objects)

• Every objects's line start with two common tokens, <object_type>, <surface_type, options>

[ object types ]

1) sp : sphere
2) pl : plane
3) cy : cylinder
4) co : cone
5) ci : circle

[ details ]

[ Sphere ]
	available token numbers : 5, 6
	sp surface center diameter

[ Plane ]
	available token numbers : 5, 6
	pl surface center norm

[ Cylinder ]
	available token number : 7, 8
	cy surface bottom_center axis diameter height

[ Cone ]
	available token number : 7, 8
	co surface bottom_center axis diameter height

[ Circle ]
	available token number : 7, 8
	ci surface center axis diameter width

[ surface ] Surface consists of type and options.

[ types ]
  	1) color : takes one option : <color vector>
  	2) checker : takes two options : <color vector> <color vector>
  	3) texture : takes two options : "texture.xpm" "bumpmap.xpm"

[ examples ]

1) sp       texture      images/test.xpm      images/test2.xpm     0,0,0      5
2) pl       color        255,25,255           0,0,0                0,1.0,0
3) co       checker      0,0,0                255,255,255          0,0,0      -0,2,1,0       10     20

---
