Introduction

gdrivesql is a module running on top of golang language that enable developers/devOps to automate daily process to backup both filesystems and databases(.sql) into Google Drive without having to do it manually. All these are done by executing golang binary file(executable file).

Since this package using Google Drive as a place to store backups files, its required few steps for authorization for the first time. For the subsequent execution, authorization no longer needed.

Until now, only MYSQL and postgreSQL are supported. For the backup, it doesn't has to backup both databases and filesystems at the same time. You may choose either one or both.

Demo

View demo below to get the whole picture and overview how things works.

Get Client Credentials

Getting client credentials and placed directly(credentials.json) into credentials folder of gdrivesql. You may defined your own folder to store credentials. Look section gdriveauth, gdrivesql for more details how to configure.

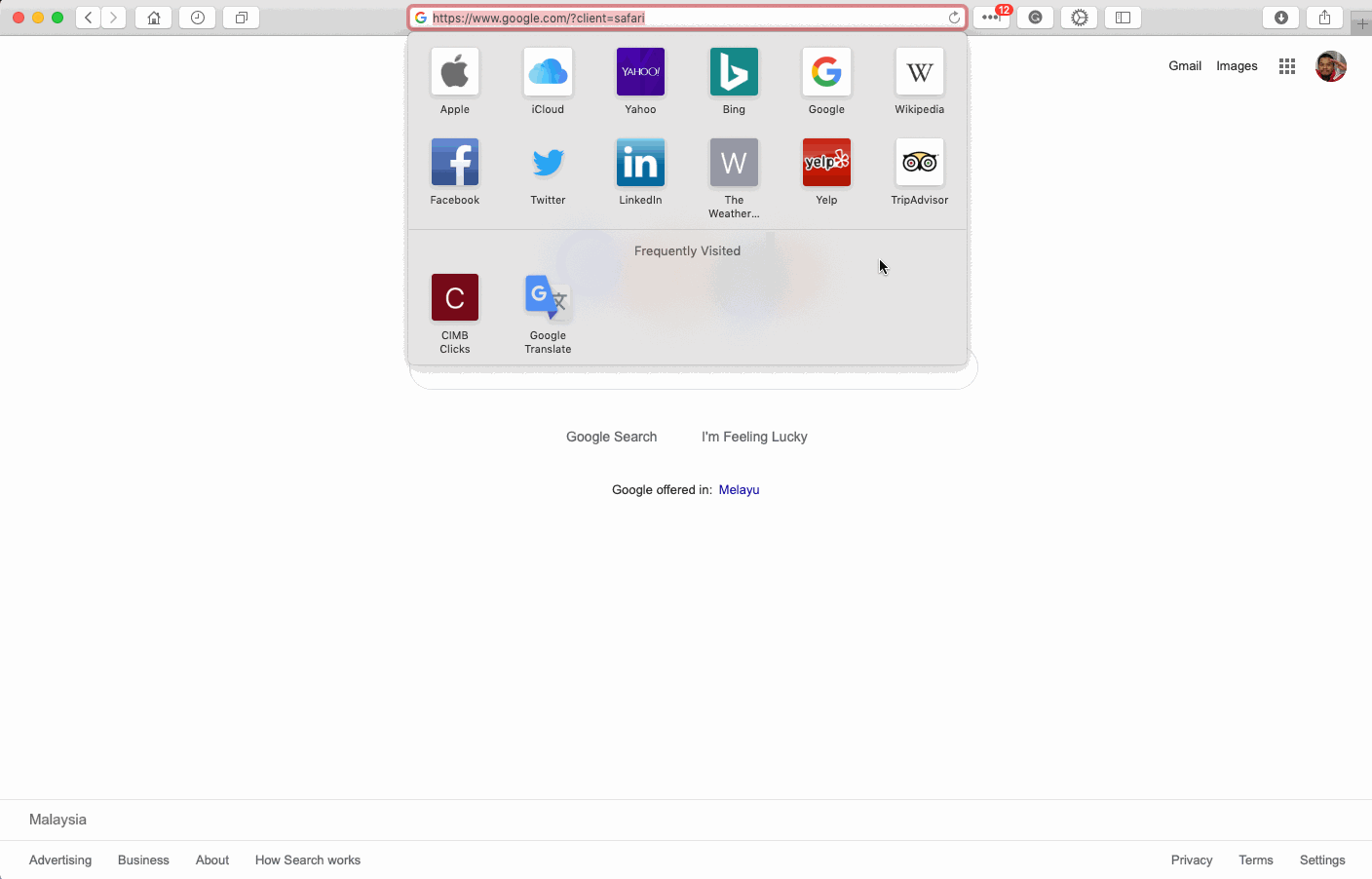

Head over to Google Drive Api Quickstart to get client credential file.

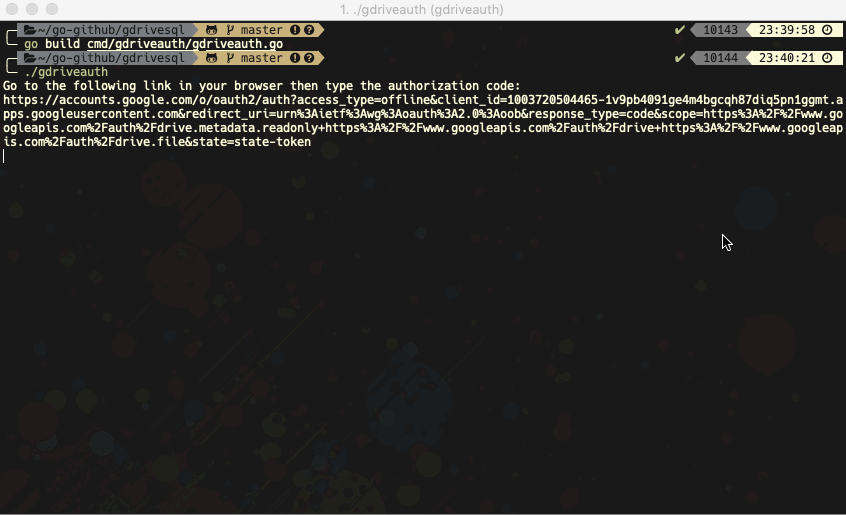

Get Consent Link

Get consent link by using gdriveauth executable to paste into browser URL

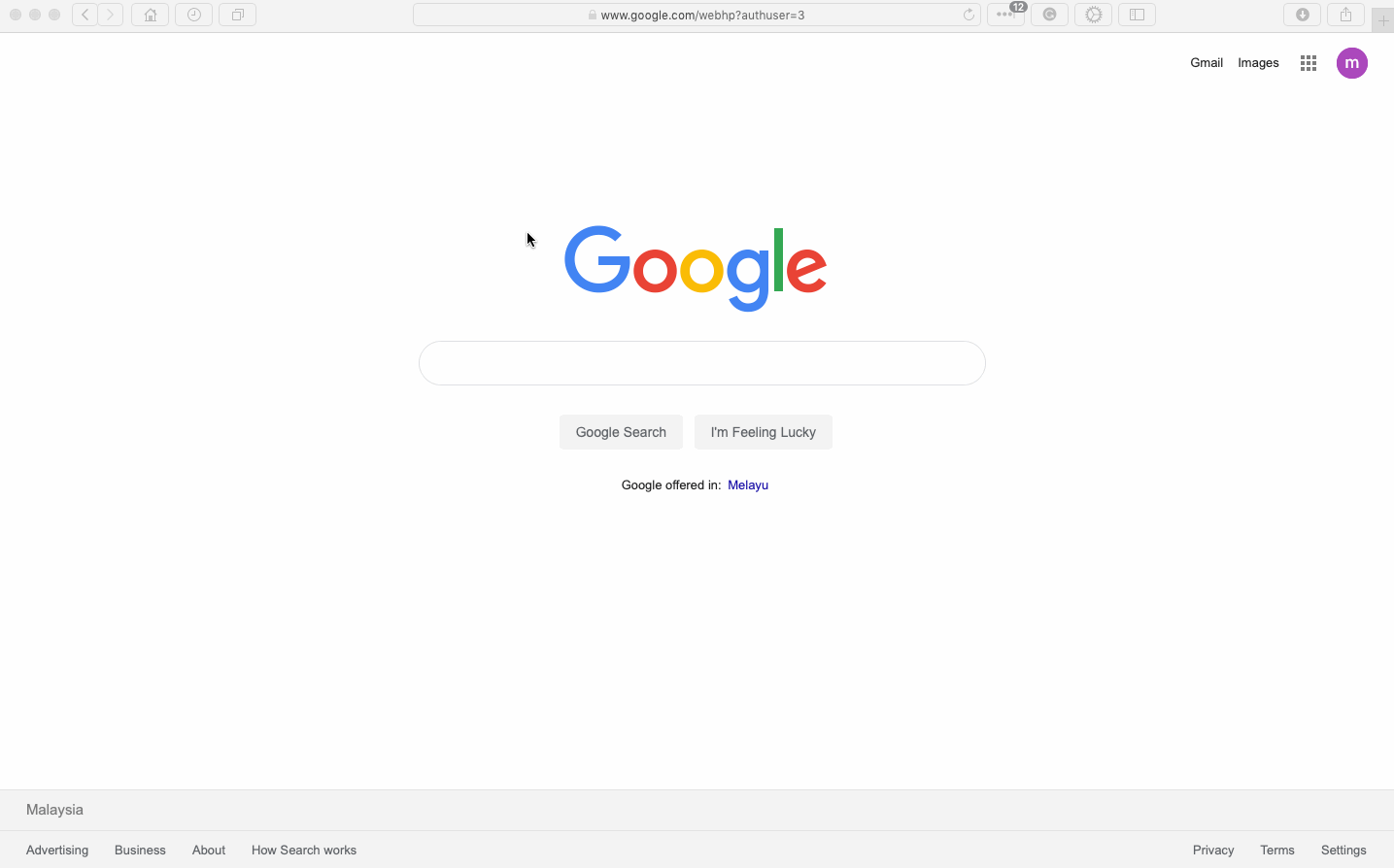

Get Authorization Key

Get authorization key

Paste Authorization Key

Paste authorization key back to terminal. This time, file token.json automatically created for you and placed under credentials directory

If you provide custom credentials folder path, script will automatically store inside path provided instead of the default path

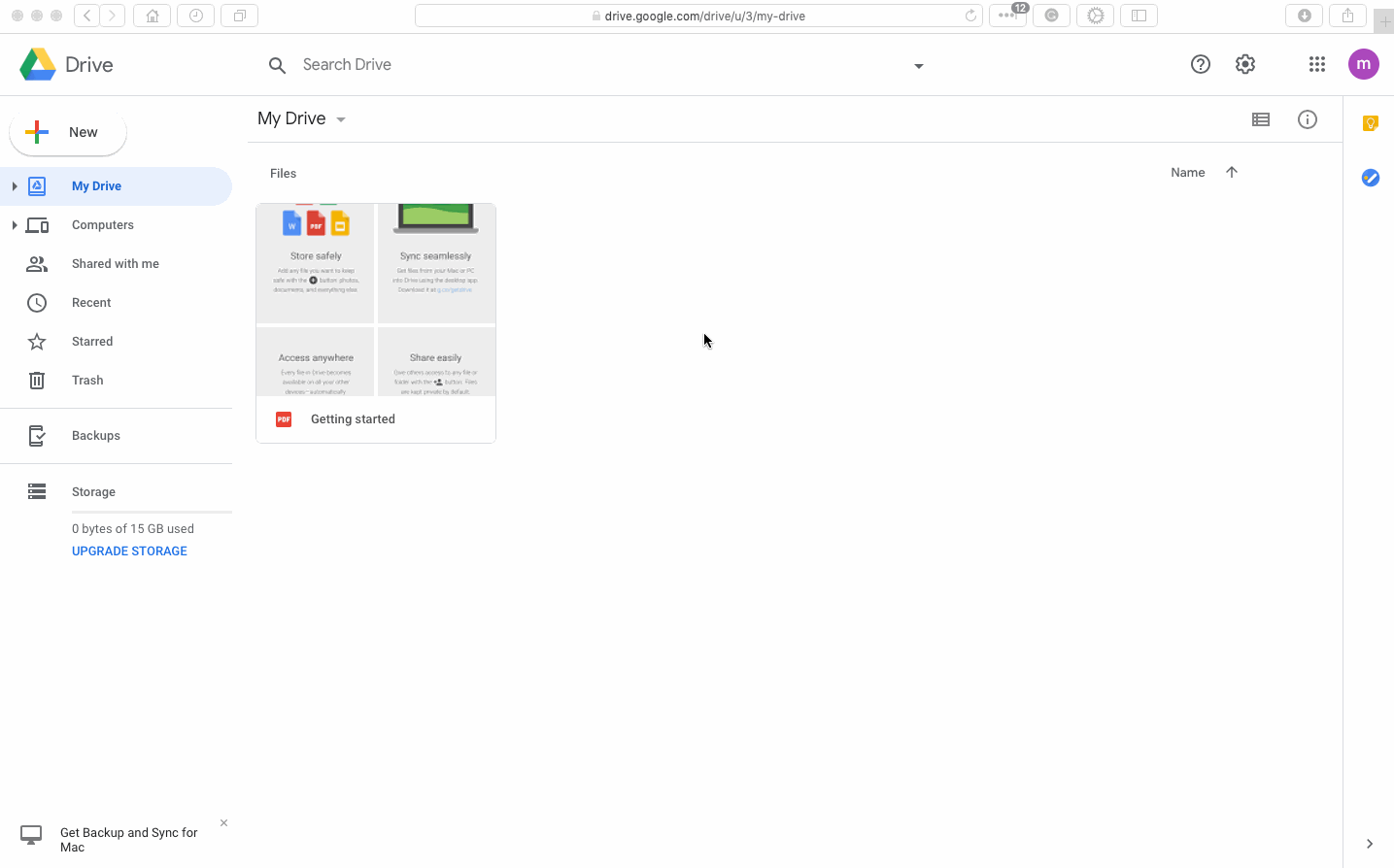

Get Google Drive ID

This module require Google Drive ID to upload backup files.

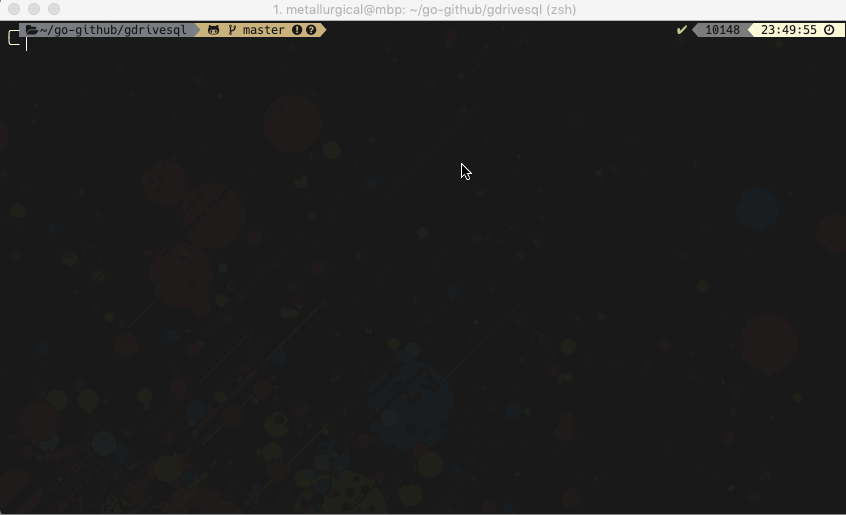

Backup and Upload Files

Use gdrivesql executable file to create a backup file and upload into google drive's folder

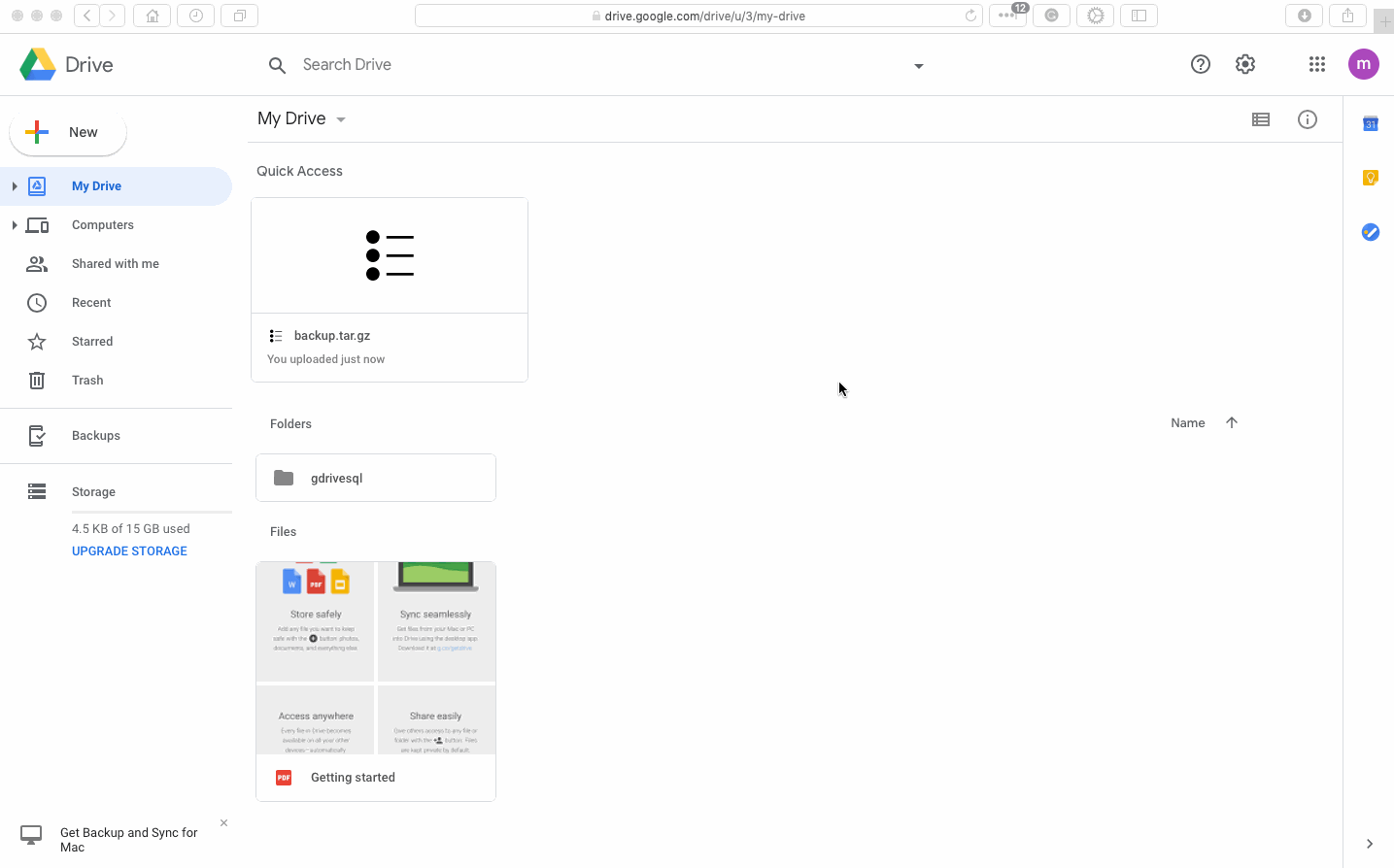

Done

Check google drive's folder for uploaded files

Configurations

This module provide 3 config files:

• Database config : List of database's name to export into .sql
• Filesystem config : List of absolute filesystem's(project) path that need to archive to backup into google drive
• Google drive config : Defined which filesystem and databases files(from above config) that able to upload into google drive
• Mail config : Defined email credentials to send mail notification after successful backup into google drive

Database Config

---
# List of connection's name
connections:
  - name: "connection_a"
    driver: "mysql"
    host: "127.0.0.1"
    port: "3306"
    user: "root"
    password:

  - name: "connection_b"
    driver: "mysql"
    host: "external_ip_address"
    port: "3306"
    user: "root"
    password: "root@1234"

  - name: "connection_c"
    driver: "postgres"
    host: "127.0.0.1"
    port: "5432"
    user: "postgres"
    password:


# List of available database's name that need to export.
databases:
  - connection: connection_a # Will use `connection_a`
    list:
      - DatabaseA
      - DatabaseB

  - connection: connection_c # will use `connection_c`
    list:
      - DatabaseC

From the above config, this module will export DatabaseA.sql, DatabaseB.sql and DatabaseC.sql into temp folder.

** Notes for postgreSQL, you may need to create .pgpass file under home directory. On windows the file is named %APPDATA%\postgresql\pgpass.conf while on linux/unix should be ~/.pgpass.

This file should contain lines of the following format:

hostname:port:database:username:password

On Unix systems, the permissions on a password file must disallow any access to world or group; achieve this by a command such as chmod 0600 ~/.pgpass. If the permissions are less strict than this, the file will be ignored. On Microsoft Windows, it is assumed that the file is stored in a directory that is secure, so no special permissions check is made.

Filesystem Config

---
# List of filesystem path's name.
path: # Absolute path to filesystem that need to be archive
  - "/Users/metallurgical/projects/automate" # "/path/to/the/folder/to/archive"

From the above config, this module will compress and create automate.tar.gz into temp folder.

Google Drive Config

---
# List of available database's name.
config:
  - folder: "automate" # Folder name to create inside temp folder to store backup files
    filesystem: true # Set to true to backup and upload along with
    driveid: "Google Drive ID" # Backup archive will be stored under this google drive's folder
    files: # Archived and database name that will stored under "automate" folder. E.g: automate.tar.gz and dbname.sql
      - "automate" # Filesystem: this name must be matched with folder defined inside filesystem.yaml(if exist)
      - "DatabaseA" # Database name defined inside database.yaml
      - "DatabaseB" # Database name defined inside database.yaml

From the above config, this module will move file automate.tar.gz, DatabaseA.sql, DatabaseB.sql into automate(depend on folder option) folder and finally compress those folder into automate.tar.gz.

gdrivesql module will upload automate.tar.gz into google drive's folder(depend on driveid option) with the name backup.tar.gz.

Mail Config

---
# Mail configurations
from: "from@example.com"
to: "to@example.com"
host: "smtp.mailtrap.io"
port: "2525"
username: "username"
password: "password"
encryption:

Simple as it is, script will sending notification mail after successfull upload into google drive along with Download Link and Parent Folder's link. To enable this option, provide option -m 1 to gdrivesql command. See gdrivesql section for more details.

Installation & Usage

Make sure you install golang in your server. Clone this repository somewhere. Head over into cloned repository and run below command to build:

$ cd gdrivesql

Build gdriveauth to get token.json. This command must be execute first before able to upload into google drive(required to run one time only)

$ go build cmd/gdriveauth/gdriveauth.go
$ ./gdriveauth

Build gdrivesql to do start backup filesystem and database

$ go build cmd/gdrivesql/gdrivesql.go
$ ./gdrivesql

Build gdriveclean to remove all leftovers files inside temp folder

$ go build cmd/gdriveclean/gdriveclean.go
$ ./gdriveclean

Available Options

gdriveauth

• Credentials folder path: Provide option -c to set custom credentials path that holds files credentials.json and token.json

Note: This option is compulsory if run the command outside of gdrivesql root folder. After run this command, script will store token.json into specified path.

E.g:

$ gdriveauth -c path/to/credentials/folder

gdrivesql

• Configs folder path : Provide option -conf to set custom configs folder path that holds files databases.yaml, gdrive.yaml and filesystems.yaml
• Temp folder path : Provide option -t to set custom temporary folder path that holds compressed file
• Credentials folder path: Provide option -c to set custom credentials path that holds files credentials.json and token.json. Script will looks the file token.json inside this folder to execute gdrive api thingy
• Send email : Sending an email to notify owner after successfully backup files into google drive. Provide option -m with value 1 to enable mail notification.

Note: This option is compulsory if run the command outside of gdrivesql root folder except send email option which is optional.

E.g:

$ gdrivesql -conf path/to/folder/configs -t path/to/folder/temp -c path/to/folder/credentials -m 1

gdriveclean

• Temp folder path: Provide option -t to set custom temporary folder path that holds compressed file. Script will looks into this folder and remove generated files

Note: This option is compulsory if run the command outside of gdrivesql root folder.

E.g:

$ gdriveclean -t path/to/folder/temp

Empowering the scripts with crontab

You may simplified tedious tasks automatically by run this scripts using crontab instead of execute manually in CLI.

Example usage with crotab

File : /etc/crontab

# Backrup script: upload into google drive
# Run script every 5th, 12th, 19th and 26th of a month at midnight
00 00 5,12,19,26 * * root gdrivesql -conf /path/to/gdrivesql/configs -t /path/to/gdrivesql/temp -c /path/to/gdrivesql/credentials > /path/to/gdrivesql/dummy.log 2>&1

# Cleanup script: delete all unused(generetad) files inside temp folder
# Run script every 6th, 13th, 20th and 27th of a month at midnight
00 00 6,13,20,27 * * root gdriveclean -t /path/to/gdrivesql/temp

# OR

00 00 6,13,20,27 * * root cd /path/to/gdrivesql/temp && find . ! -name .gitignore -delete

Importants Notice

Copy executable code into bin folder to make it global access:

# gdrivesql
$ cp /path/to/gdrivesql/gdrivesql-linux-386 /usr/local/bin/gdrivesql # linux 386
$ cp /path/to/gdrivesql/gdrivesql-386 /usr/local/bin/gdrivesql # apple darwin

# gdriveauth
$ cp /path/to/gdrivesql/gdriveauth-linux-386 /usr/local/bin/gdriveauth # linux 386
$ cp /path/to/gdrivesql/gdriveauth-386 /usr/local/bin/gdriveauth # apple darwin

# gdriveclean
$ cp /path/to/gdrivesql/gdriveclean-linux-386 /usr/local/bin/gdriveclean # linux 386
$ cp /path/to/gdrivesql/gdriveclean-386 /usr/local/bin/gdriveclean # apple darwin

This module assume the script will executed inside gdrivesql root directory, then no need to specify the option for credentials, configs and temp path. If run outside gdrivesql root directory(copy over executable files into /usr/local/bin), you may need to pass in the options mentioned above. Example of run outside could be if you like to automate call the scripts from crontab.
