swift-adwaita

An imperative Swift 6 wrapper for GTK4 and libadwaita, designed for building native GNOME desktop applications.

Documentation: API Reference

Quick guides:

Apps built with swift-adwaita

Swifty Notes

Demo app

Features

Imperative API — no declarative DSL; create and configure widgets directly
178 widget wrappers — 74 auto-generated Adwaita + 104 hand-written GTK widgets, including a WebView wrapper for WebKitGTK 6.0 (opt-in via the separate AdwaitaWebKit product)
Zero raw pointers in public API — all OpaquePointer/gpointer hidden behind Swift types
Type-safe enums — SignalName, PropertyName, CSSClass, IconName instead of raw strings
Fluent setters — method chaining: Label("Hi").halign(.center).cssClass(.title1)
Type-safe signals — 50+ signal signatures with @MainActor closures
Async/await — FileDialog.open(), UriLauncher.launch(), Clipboard.readText()
Keyboard shortcuts — enum-based Key + KeyModifiers API
Property bindings — GObjectRef.bind() for reactive connections
Container protocol — unified append()/remove() for Box, ListBox, FlowBox, WrapBox, Carousel
Convenience initializers — SwitchRow(title:), PreferencesGroup(title:description:), etc.
Menus & actions — GMenuRef, SimpleAction, MenuButton
Drag & drop — DragSource, DropTarget
CSS support — CSSProvider + type-safe CSSClass enum
Animations — TimedAnimation, SpringAnimation with callbacks
Drawing — DrawingArea with CairoContext wrapper
Text attributes — TextAttributes for styling Label, Entry, and EntryRow text
Media playback — MediaStream, Video, MediaControls
Localization — gettext integration via localized() and String.localized
@Setting property wrapper — type-safe GSettings binding
Adaptive layout — Breakpoint.minWidth(), Breakpoint.maxWidth() helpers
Swift 6 concurrency — full @MainActor isolation, Sendable types
1194 tests on Linux / 1181 on macOS, 78 demo examples, CI on Ubuntu + macOS

Requirements

Swift 6.2+
libadwaita 1.5+ development headers
GtkSourceView 5 development headers
Linux or macOS 13+ (Apple Silicon recommended; Intel best-effort)

The WebView wrapper additionally needs WebKitGTK 6.0; install only if your app embeds a web view.

Ubuntu/Debian

sudo apt install libadwaita-1-dev libgtksourceview-5-dev xvfb
# Optional, only if you use WebView:
sudo apt install libwebkitgtk-6.0-dev

Fedora

sudo dnf install libadwaita-devel gtksourceview5-devel xorg-x11-server-Xvfb
# Optional, only if you use WebView:
sudo dnf install webkitgtk6.0-devel

macOS (Homebrew)

brew install libadwaita gtksourceview5 adwaita-icon-theme pkgconf

The AdwaitaWebKit (WebView) product is Linux-only — the Homebrew webkitgtk formula refuses to build on macOS. macOS apps use the system WebKit framework directly via the Apple Cocoa APIs; the Adwaita WebView is for GTK4-on-Linux only.

libadwaita pulls gtk4, glib, cairo, pango, gdk-pixbuf, harfbuzz, librsvg, and ~30 more transitive dependencies — about 1.5–2 GB on disk after install.

Icons. adwaita-icon-theme is the symbolic icon set used by HeaderBar buttons, Banner, dialogs, and most widgets. Homebrew does not pull it in transitively, so without this package the demo and your own apps render with empty / missing icons on macOS.

Runtime env var (required). libadwaita aborts at startup with No GSettings schemas are installed on the system unless GLib can find Homebrew's compiled schemas. Add this to your shell rc, or prepend it to any swift run … / swift test … invocation:

export XDG_DATA_DIRS="/opt/homebrew/share:${XDG_DATA_DIRS:-/usr/local/share:/usr/share}"

Intel Macs: replace /opt/homebrew with /usr/local.

macOS targets the GTK4 Quartz backend, so HeaderBar / Toast / native dialog chrome will look like libadwaita on macOS rather than native Cocoa. Build/test cycles are fully supported; Flatpak distribution is Linux-only.

Installation

Install the system packages above first, then add this package to your Package.swift:

dependencies: [
    .package(url: "https://github.com/makoni/swift-adwaita.git", branch: "main"),
],
targets: [
    .executableTarget(
        name: "MyApp",
        dependencies: [
            .product(name: "Adwaita", package: "swift-adwaita"),
        ]
    ),
]

Quick Start

import Adwaita

@MainActor
func buildApp() {
    let app = Application(id: "com.example.HelloWorld")

    app.onActivate {
        let window = ApplicationWindow(application: app)
        window.title = "Hello"
        window.defaultWidth = 400
        window.defaultHeight = 300

        let box = Box(orientation: .vertical, spacing: 12)
        box.setMargins(24)

        let label = Label("Hello from swift-adwaita!")
            .cssClass(.title1)
        box.append(label)

        let button = Button(label: "Click Me")
            .cssClass(.suggestedAction)
            .cssClass(.pill)
            .halign(.center)
        button.onClicked {
            label.text = "Button clicked!"
        }
        box.append(button)

        window.setContent(box)
        window.present()
    }

    app.run()
}

buildApp()

Architecture

Three-layer design:

CAdwaita          System library (pkg-config: libadwaita-1)
  │
GObjectSupport    GObject lifecycle (ARC), signals, Variant, GValue
  │
Adwaita           Widget wrappers (74 generated + 103 hand-written)

Key Types

Type	Description
`GObjectRef`	Base class — GObject lifecycle with ARC
`Widget`	Base for all GTK/Adwaita widgets
`SignalConnection`	Handle for signal connections
`Application`	App entry point (`AdwApplication`)
`ApplicationWindow`	Main window

Protocols

Protocol	Purpose	Conforming Types
`ListModelConvertible`	Pass models to list views	`ListStore`, `StringList`, `FilterListModel`, `SortListModel`, `MapListModel`, `FlattenListModel`, `TreeListModel`, `SelectionFilterModel`
`SelectionModelConvertible`	Pass selection to views	`SingleSelection`, `MultiSelection`, `NoSelection`
`Container`	Widgets with append/remove	`Box`, `ListBox`, `FlowBox`, `WrapBox`, `Carousel`
`Swipeable`	Swipe gesture target	`Carousel`, `NavigationView`, `OverlaySplitView`

Type-Safe Enums

Enum	Replaces	Example
`SignalName`	`"clicked"`	`.clicked`, `.changed`, `.notify("title")`
`PropertyName`	`"active"`	`.active`, `.title`, `.custom("my-prop")`
`CSSClass`	`"suggested-action"`	`.suggestedAction`, `.pill`, `.title1`
`IconName`	`"go-next-symbolic"`	`.goNext`, `.dialogError`, `.custom("my-icon")`

Widget Categories

Layout: Box, Stack, Grid, Overlay, FlowBox, Clamp, Paned, WrapBox, CenterBox, Fixed

Navigation: NavigationView, NavigationSplitView, OverlaySplitView, TabView, ViewSwitcher, Notebook, Carousel

Input: Button, Entry, Switch, CheckButton, ToggleButton, Scale, SpinRow, SearchEntry, DropDown, Calendar, ToggleGroup

Display: Label, Image, Picture, Spinner, ProgressBar, LevelBar, Avatar, Banner, Separator, Video

Lists: ListBox, ActionRow, ExpanderRow, ComboRow, SwitchRow, ButtonRow, PreferencesGroup

Virtualized Lists: ListView, GridView, ColumnView + ListStore, StringList, SignalListItemFactory, TreeListModel, FilterListModel, SortListModel

Containers: ScrolledWindow, ToolbarView, HeaderBar, BottomSheet, Frame, Expander, Revealer, ActionBar

Dialogs: AlertDialog, Dialog, AboutDialog, PreferencesDialog, FileDialog

Menus: MenuButton, PopoverMenu, PopoverMenuBar, SplitButton, GMenuRef, SimpleAction

Event Controllers: GestureClick, GestureDrag, GestureLongPress, GestureSwipe, EventControllerKey, EventControllerMotion, EventControllerScroll, EventControllerFocus, DragSource, DropTarget, ShortcutController

Feedback: Toast, ToastOverlay, EmojiChooser

Styling: CSSProvider, CSSClass, StyleManager, TextAttributes

Animation: TimedAnimation, SpringAnimation, CallbackAnimationTarget, PropertyAnimationTarget

Media: MediaStream, Video, MediaControls

Drawing: DrawingArea, CairoContext

System: Clipboard, Display, Monitor, UriLauncher, Settings

Examples

Fluent Setters

let label = Label("Welcome")
    .halign(.center)
    .vexpand()
    .margins(24)
    .cssClass(.title1)
    .tooltip("A greeting label")

let button = Button(icon: .goNext)
    .cssClass(.suggestedAction)
    .cssClass(.circular)

Safe markup and range styling

let title = PangoMarkup.escape(userVisibleTitle)
let label = Label("")
label.markup = "<b>\(title)</b>"

let searchText = "Search results"
let attrs = TextAttributes()
attrs.addBackgroundColor(
    RGBA(red: 1.0, green: 0.93, blue: 0.6),
    range: searchText.startIndex..<searchText.index(searchText.startIndex, offsetBy: 6),
    in: searchText
)

let highlighted = Label(searchText)
highlighted.attributes = attrs

GTK-friendly async scheduling

MainContext.task {
    statusLabel.text = "Saved"
}

MainContext.task(after: .seconds(1)) {
    toast.dismiss()
}

Do not use Task { @MainActor in ... } from a running GTK app. GLib does not drive the dispatch main queue.

Type-Safe Icons and CSS

let img = Image(icon: .dialogInformation)
let btn = Button(icon: .documentSave, onClicked: { print("Saved!") })

label.addCSSClass(.dimLabel)
list.addCSSClass(.boxedList)
button.addCSSClass(.destructiveAction)

Dialogs, clipboard, URI launching

Every async-looking surface in swift-adwaita ships in two shapes:

A callback form — …(parent: window) { result in … }. The closure runs on the main actor from the GLib main loop. Use this inside a running GTK application (any handler called from onClicked / onActivate / a GTK signal in general).
An async form — try await …. Convenient in tests, macOS CLIs, or anywhere something else is draining Swift's DispatchQueue.main. Don't use it inside a g_application_run app.

Why the split

Swift's default MainActor executor is DispatchQueue.main, and the GLib main loop does not drain it — so a Task { @MainActor in await dialog.open(...) } kicked off from a button click just sits there and the dialog never appears. The callback forms side-step Swift Concurrency entirely and go through a GLib-native GAsyncReadyCallback, which GLib's loop does dispatch.

Callback form (prefer this in GTK apps)

let dialog = FileDialog()
dialog.title = "Open a File"

openButton.onClicked {
    dialog.open(parent: window) { result in
        switch result {
        case let .success(path?): print("Selected: \(path)")
        case .success(nil):       print("User cancelled")
        case let .failure(error): print("Error: \(error.message)")
        }
    }
}

// Clipboard — same idea, no Result wrapping because there's no error domain.
widget.clipboard.readText { text in
    label.text = text ?? ""
}

// URI launcher.
UriLauncher(uri: "https://gnome.org").launch(parent: window) { success in
    print("Launched: \(success)")
}

The same shape is available on FileDialog.save/selectFolder, ColorDialog.chooseRGBA, FontDialog.chooseFont, Clipboard.readTexture, Clipboard.readFiles, and Texture.load(from:completion:).

Intercepting paste

Widget.onPasteClipboard lets a TextView/SourceView-backed editor decide what to do with a paste before GTK's default text insertion runs. Pair it with the synchronous probes Clipboard.containsImage / Clipboard.containsFiles, then either let the default fire or call Widget.stopSignalEmission(named:) and handle the payload yourself via Clipboard.readTexture / Clipboard.readFiles. Texture.encodedPNGData() re-encodes a clipboard image as PNG Data for content-import pipelines.

editor.onPasteClipboard { [weak self] in
    guard let self else { return }
    if editor.clipboard.containsImage {
        editor.stopSignalEmission(named: "paste-clipboard")
        editor.clipboard.readTexture { texture in
            guard let pngData = texture?.encodedPNGData() else { return }
            // ... save the bytes, insert a markdown reference, etc.
        }
    }
}

Async form (tests / non-GTK)

let path = try await dialog.open(parent: window) // ok in XCTest, don't do this inside onClicked.

Adaptive Layout

let bp = Breakpoint.maxWidth(500)
bp.addSetter(box, property: .custom("orientation"), value: "vertical")
bp.onApply { sidebar.visible = false }
bp.onUnapply { sidebar.visible = true }
window.addBreakpoint(bp)

Drawing

let da = DrawingArea()
da.contentWidth = 200
da.contentHeight = 200
da.setDrawFunc { cr, width, height in
    cr.setSourceRGB(0.2, 0.4, 0.8)
    cr.roundedRectangle(x: 10, y: 10, width: 180, height: 180, radius: 20)
    cr.fill()
}

Keyboard Shortcuts

button.addKeyboardShortcut(key: .s, modifiers: .control) {
    print("Save!")
    return true
}

widget.addKeyboardShortcut(key: .z, modifiers: [.control, .shift]) {
    print("Redo!")
    return true
}

Menus & Actions

let menu = GMenuRef()
menu.append("Cut", action: "win.cut")
menu.append("Copy", action: "win.copy")

let menuBtn = MenuButton()
menuBtn.iconName = "open-menu-symbolic"
menuBtn.setMenuModel(menu)

let action = SimpleAction(name: "cut")
action.onActivate { print("Cut!") }
window.addAction(action)

Localization

setTextDomain("myapp")
let greeting = localized("Hello")
let label = Label("Welcome".localized)

Virtualized Lists

var items = ["Apple", "Banana", "Cherry"]
let store = ListStore()
for _ in items { store.appendPlaceholder() }

let factory = SignalListItemFactory()
factory.onSetup { listItem in
    listItem.child = Label("")
}
factory.onBind { listItem in
    listItem.child?.cast(Label.self).text = items[listItem.position]
}

let selection = SingleSelection(model: store)
let listView = ListView(model: selection, factory: factory)

Drag & Drop

let drag = DragSource()
drag.setTextContent("Hello!")
sourceWidget.addController(drag)

let drop = DropTarget.forText()
drop.onDrop { text in
    if let text { label.text = text }
    return true
}
targetWidget.addController(drop)

Custom CSS

CSSProvider.loadGlobal("""
.my-widget {
    background: linear-gradient(135deg, @accent_bg_color, @headerbar_bg_color);
    border-radius: 12px;
    padding: 24px;
}
""")
widget.addCSSClass("my-widget")

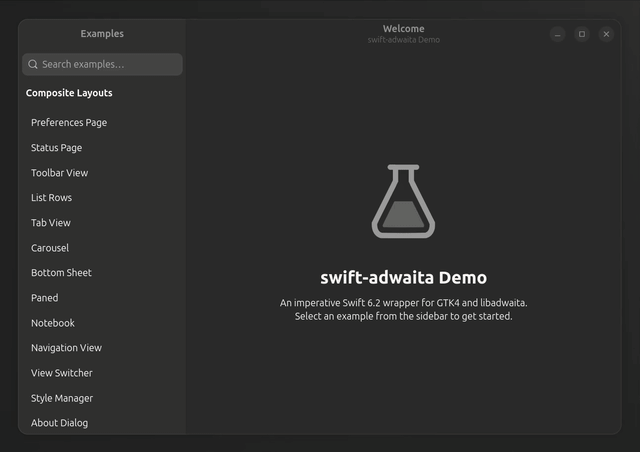

Demo App

An interactive gallery with 78 examples showcasing every widget:

swift run DemoApp

Features sidebar navigation with search, source code viewer, and windowed demos for navigation/window-level widgets.

Building

Linux

swift build                      # Build library
xvfb-run swift test --no-parallel   # Run the test suite under a virtual display
swift run DemoApp                # Launch demo gallery

macOS

swift build                      # Build library

# Tests need GSettings schemas at runtime.
XDG_DATA_DIRS=/opt/homebrew/share swift test --no-parallel

# DemoApp likewise:
XDG_DATA_DIRS=/opt/homebrew/share swift run DemoApp

For an Xcode-driven build that produces a regular macOS .app bundle (Cmd+R, breakpoints, Archive), see examples/macos/DemoApp/ — it's a working starter project that wraps the demo gallery via the DemoAppLib library product.

Linux runs the test suite via swift-testing; macOS runs an XCTest mirror suite under Tests/AdwaitaTests/macOS/ because swift-testing's per-test autorelease pool transitions corrupt memory after gtk_init registers Cocoa CFRunLoop callbacks. Both paths exercise the same logic. If you add a new test, place the swift-testing version under Tests/AdwaitaTests/ (gated #if !os(macOS)) and an XCTest mirror under Tests/AdwaitaTests/macOS/ (gated #if os(macOS)).

Distribution with Flatpak

Flatpak is the recommended way to distribute GTK4/libadwaita apps on Linux. The GNOME runtime provides GTK4 and libadwaita, and the Swift SDK extension provides the compiler — your app only ships its own binary.

Prerequisites

Install Flatpak tools and runtimes:

# Install flatpak-builder
sudo apt install flatpak-builder   # Ubuntu/Debian
sudo dnf install flatpak-builder   # Fedora

# Install GNOME SDK and Swift extension
flatpak install flathub org.gnome.Sdk//48 org.freedesktop.Sdk.Extension.swift6//24.08

Flatpak Manifest

Create a manifest file (e.g., com.example.MyApp.yml):

app-id: com.example.MyApp
runtime: org.gnome.Platform
runtime-version: "48"
sdk: org.gnome.Sdk
sdk-extensions:
  - org.freedesktop.Sdk.Extension.swift6
command: MyApp

finish-args:
  - --share=ipc
  - --socket=fallback-x11
  - --socket=wayland
  - --device=dri

build-options:
  append-path: /usr/lib/sdk/swift6/bin
  prepend-ld-library-path: /usr/lib/sdk/swift6/lib

modules:
  - name: MyApp
    buildsystem: simple
    sources:
      - type: dir
        path: .
    build-commands:
      - swift build -c release --product MyApp --static-swift-stdlib
      - install -Dm755 .build/release/MyApp /app/bin/MyApp
      - install -Dm644 com.example.MyApp.desktop /app/share/applications/com.example.MyApp.desktop
      - install -Dm644 com.example.MyApp.metainfo.xml /app/share/metainfo/com.example.MyApp.metainfo.xml
      - install -Dm644 com.example.MyApp.svg /app/share/icons/hicolor/scalable/apps/com.example.MyApp.svg

Key points:

--static-swift-stdlib links the Swift runtime statically — the SDK extension is only needed at build time
The GNOME runtime provides GTK4 and libadwaita at runtime
You also need a .desktop file, metainfo.xml, and an app icon

Build and Run

# Build and install locally
flatpak-builder --force-clean --user --install build-dir com.example.MyApp.yml

# Run
flatpak run com.example.MyApp

Demo App Flatpak

The included DemoApp has a complete Flatpak setup in the flatpak/ directory:

flatpak-builder --force-clean --user --install build-dir flatpak/io.github.makoni.SwiftAdwaitaDemo.yml
flatpak run io.github.makoni.SwiftAdwaitaDemo

For more details, see the doc:FlatpakDistribution guide.

License

MIT License. See LICENSE.txt.

Name		Name	Last commit message	Last commit date
Latest commit History 206 Commits
.github		.github
.vscode		.vscode
LICENSES		LICENSES
Sources		Sources
Tests/AdwaitaTests		Tests/AdwaitaTests
Tools/AdwaitaCodeGen		Tools/AdwaitaCodeGen
examples/macos		examples/macos
flatpak		flatpak
.gitignore		.gitignore
.swift-version		.swift-version
.swiftformat		.swiftformat
CONTRIBUTING.md		CONTRIBUTING.md
LICENSE.txt		LICENSE.txt
Package.swift		Package.swift
README.md		README.md
REUSE.toml		REUSE.toml
buildDocs.sh		buildDocs.sh
test_override		test_override

Uh oh!

Folders and files

Latest commit

History

Repository files navigation

swift-adwaita

Apps built with swift-adwaita

Demo app

Features

Requirements

Ubuntu/Debian

Fedora

macOS (Homebrew)

Installation

Quick Start

Architecture

Key Types

Protocols

Type-Safe Enums

Widget Categories

Examples

Fluent Setters

Safe markup and range styling

GTK-friendly async scheduling

Type-Safe Icons and CSS

Dialogs, clipboard, URI launching

Why the split

Callback form (prefer this in GTK apps)

Intercepting paste

Async form (tests / non-GTK)

Adaptive Layout

Drawing

Keyboard Shortcuts

Menus & Actions

Localization

Virtualized Lists

Drag & Drop

Custom CSS

Demo App

Building

Linux

macOS

Distribution with Flatpak

Prerequisites

Flatpak Manifest

Build and Run

Demo App Flatpak

License

About

Topics

Resources

License

Contributing

Uh oh!

Stars

Watchers

Forks

Releases 11

Sponsor this project

Uh oh!

Packages 0

Uh oh!

Uh oh!

Contributors

Uh oh!

Languages

Packages
