MPG

Use three BC337 (NPN) to switch Axis (1 Port toggle) and Feedrate (2 Ports mux):

```
Mach3 Port ---c b e ---[2k2]--GND
```
```
                |
```
```
                _
```
```
                2
```
```
                k
```
```
                2
```
```
                -
```
```
                |
```
```
           Arduino-Port
```

Jogwheel Mach3 A low : Pin 10 B high : Pin 11 VCC : PC 5V GND : 0V
GND also to GND under P15

Arduino

Digital 2, 3, 6 : switching transistors (see source) Digital 4,5 : Inputs for Buttons Axis and Feedrate to GND

Couple all GND, Arduino and Mach3 together !

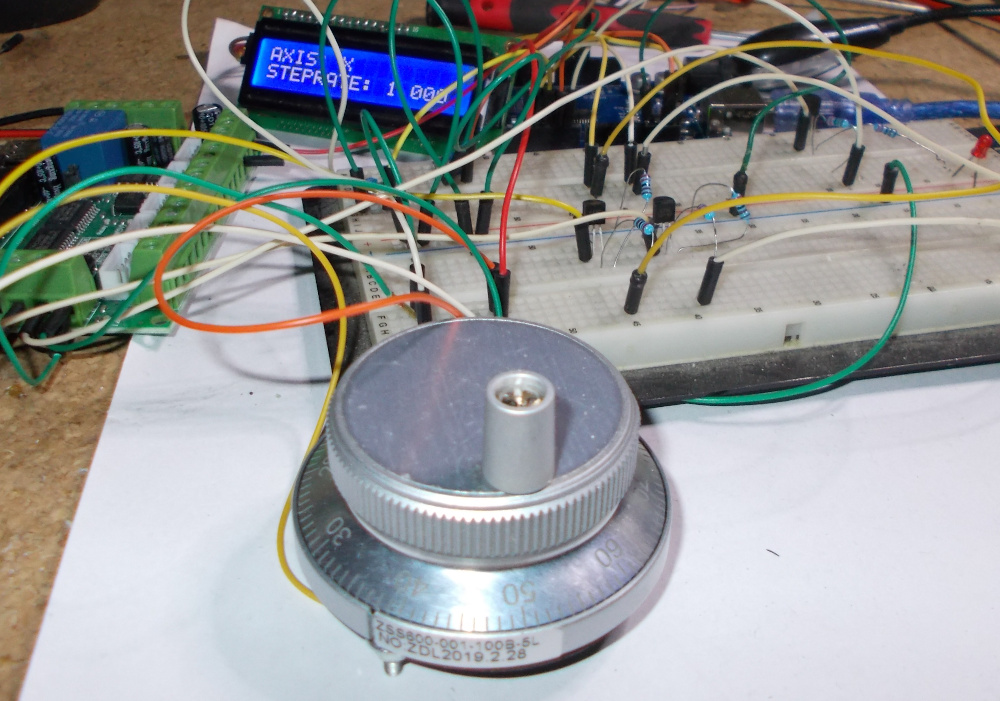

It works !
