tufte-data-viz

An agent skill that applies Edward Tufte's data visualization principles when generating charts, plots, and graphs. Produces clean, honest, high-data-ink-ratio visualizations across multiple charting libraries — extended with modern screen-first standards for accessibility, responsiveness, and interactivity.

Fair warning

This skill is opinionated by design. It will remove your gridlines, delete your legends, reject your pie charts, and insist on serif fonts. It enforces a specific visual philosophy — Tufte's — not a neutral one. If you want total creative freedom over your chart styling, this is not the skill for you. If you want every chart to come out clean, honest, and readable without thinking about it, read on.

Install

npx skills add caylent/tufte-data-viz

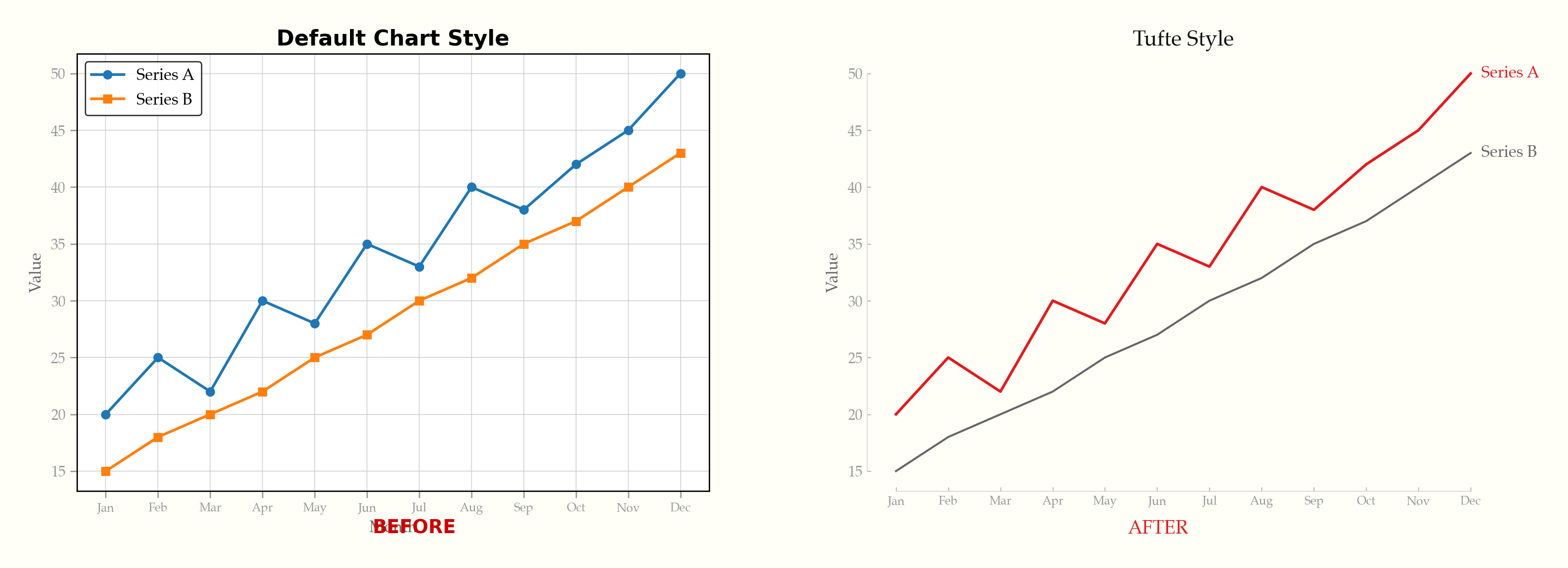

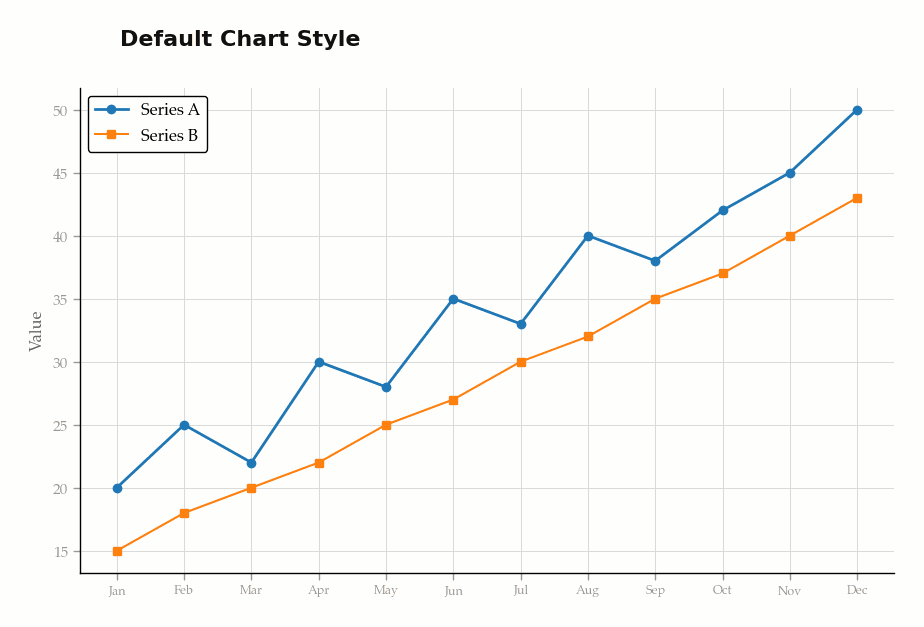

Before & After

The same data, default styling vs. Tufte principles applied:

See it happen live — gridlines fade, legends become direct labels, chartjunk dissolves:

Interactive Demo

Try the live demo — toggle between default and Tufte styling across ECharts, Chart.js, Plotly, and D3.js. Includes dark mode.

Examples

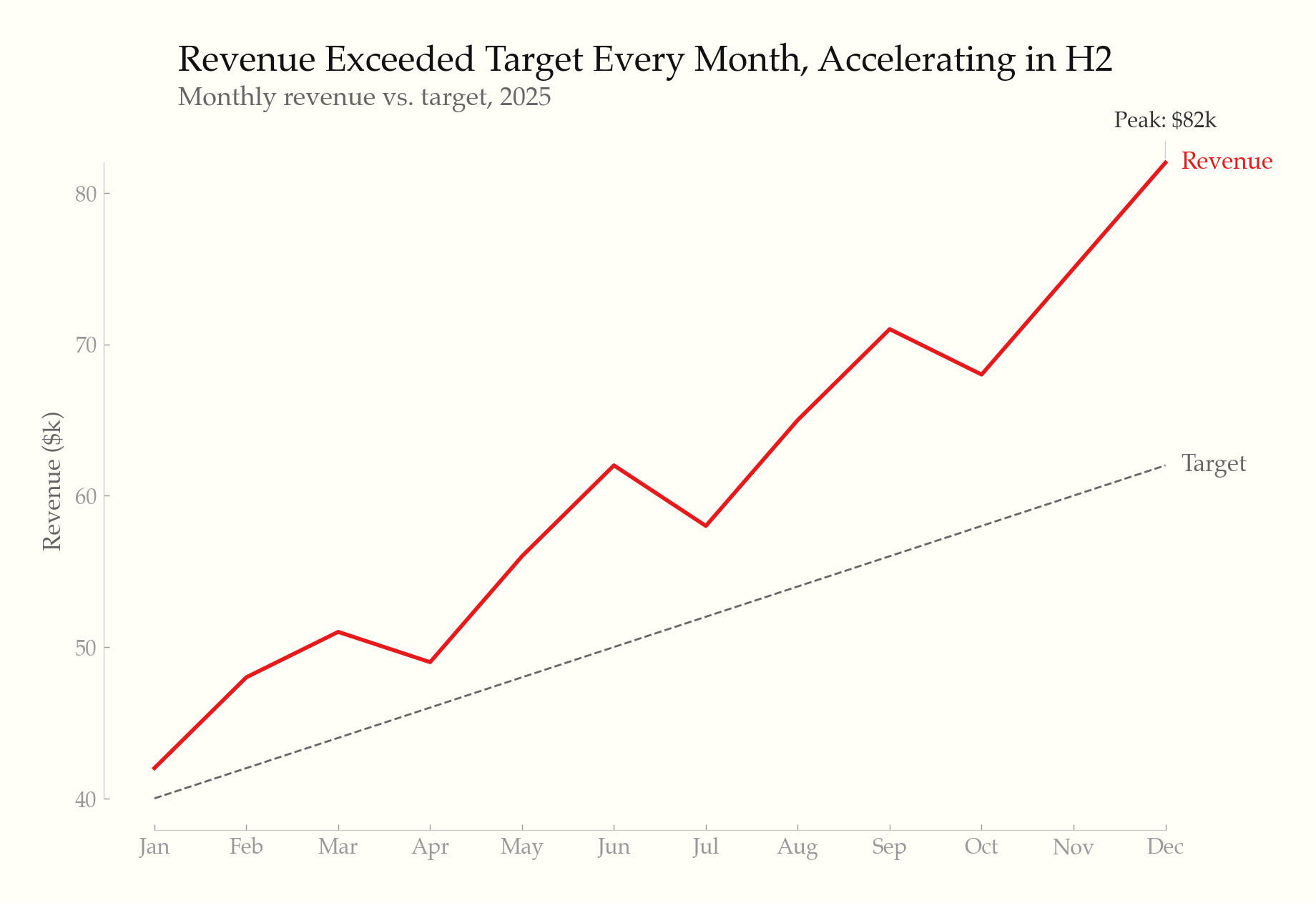

Line chart — direct labels, range-frame axes, annotation

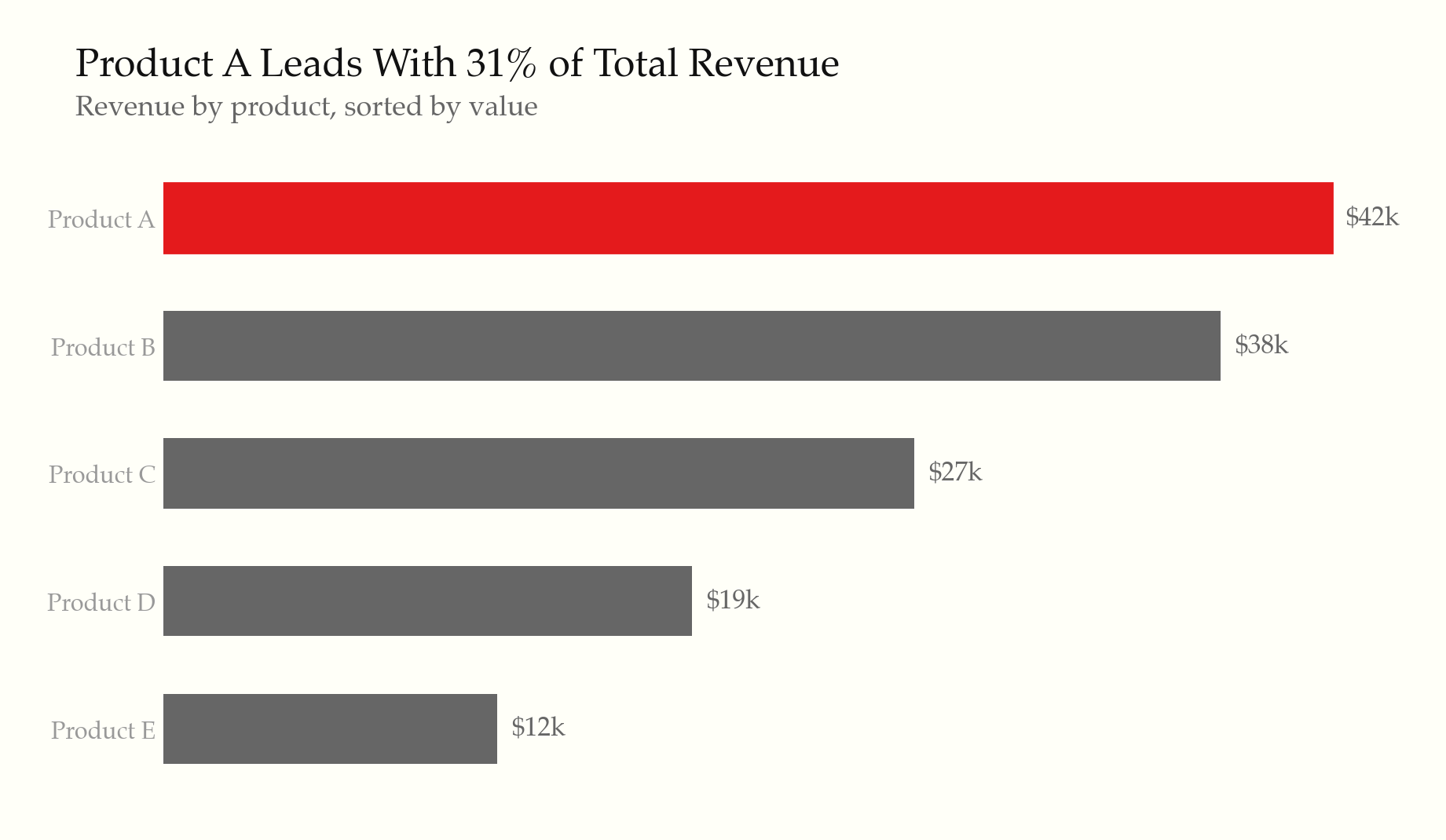

Horizontal bar chart — sorted by value, highlighted leader

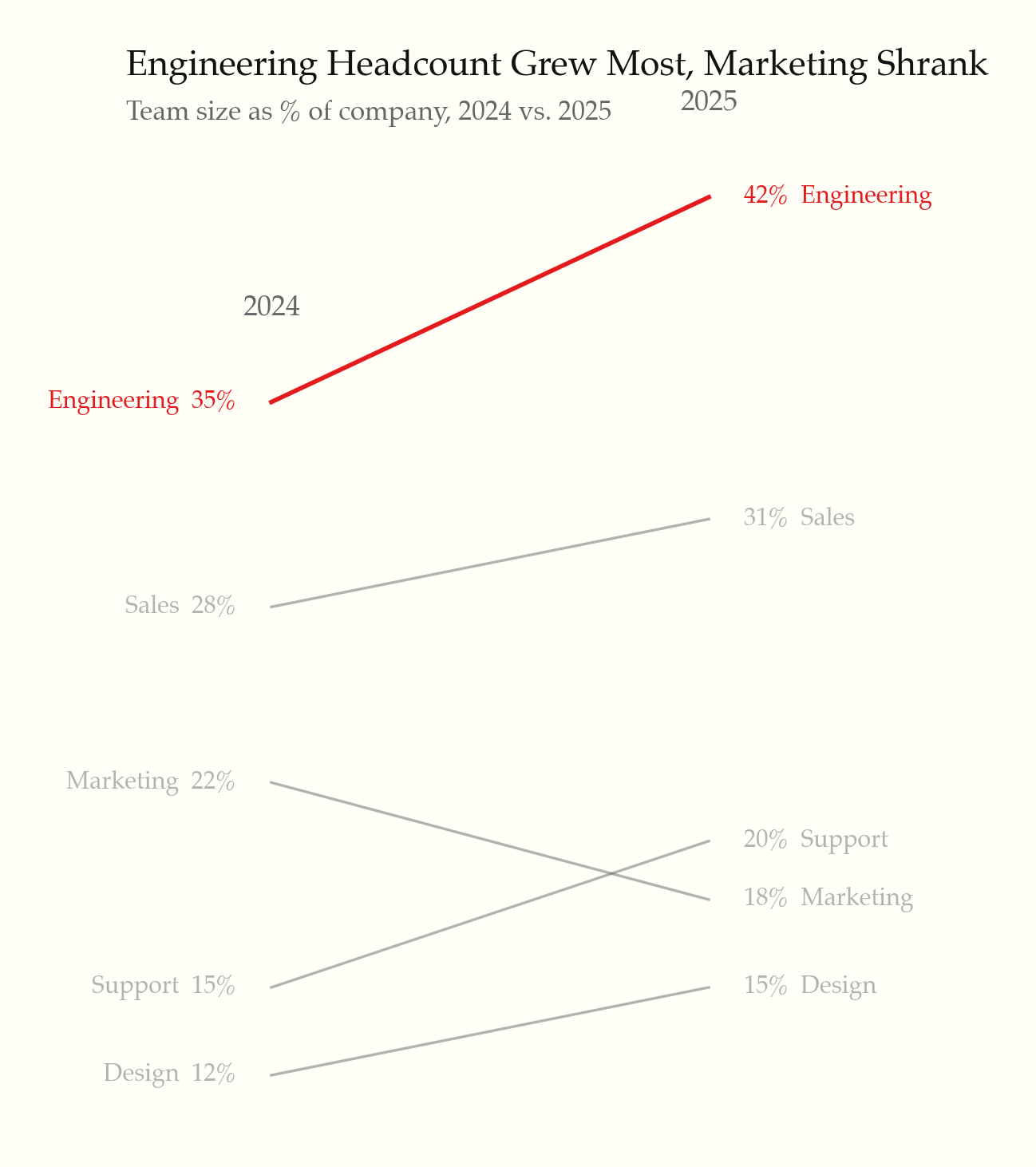

Slopegraph — before/after comparison

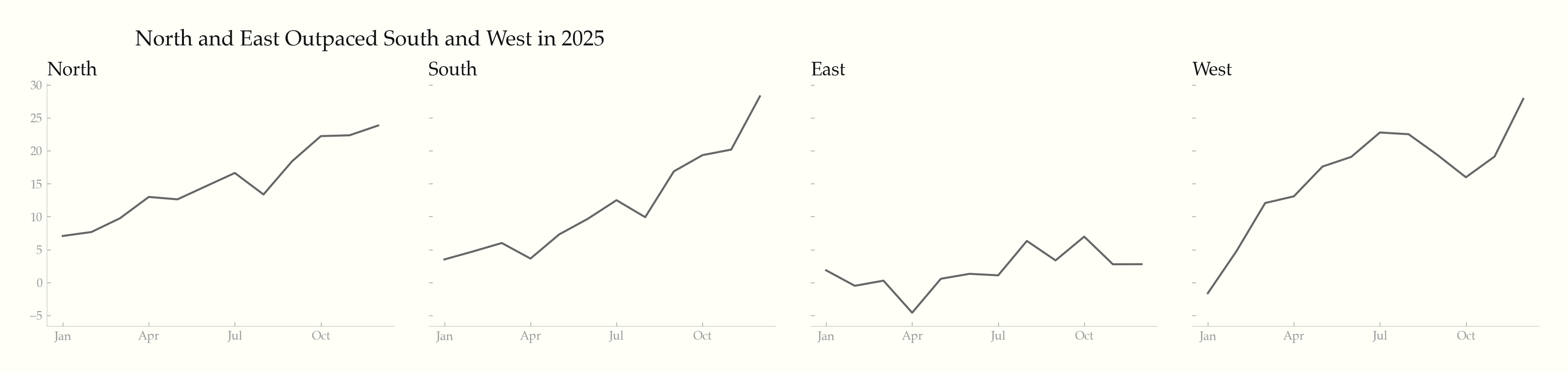

Small multiples — shared scale, minimal chrome

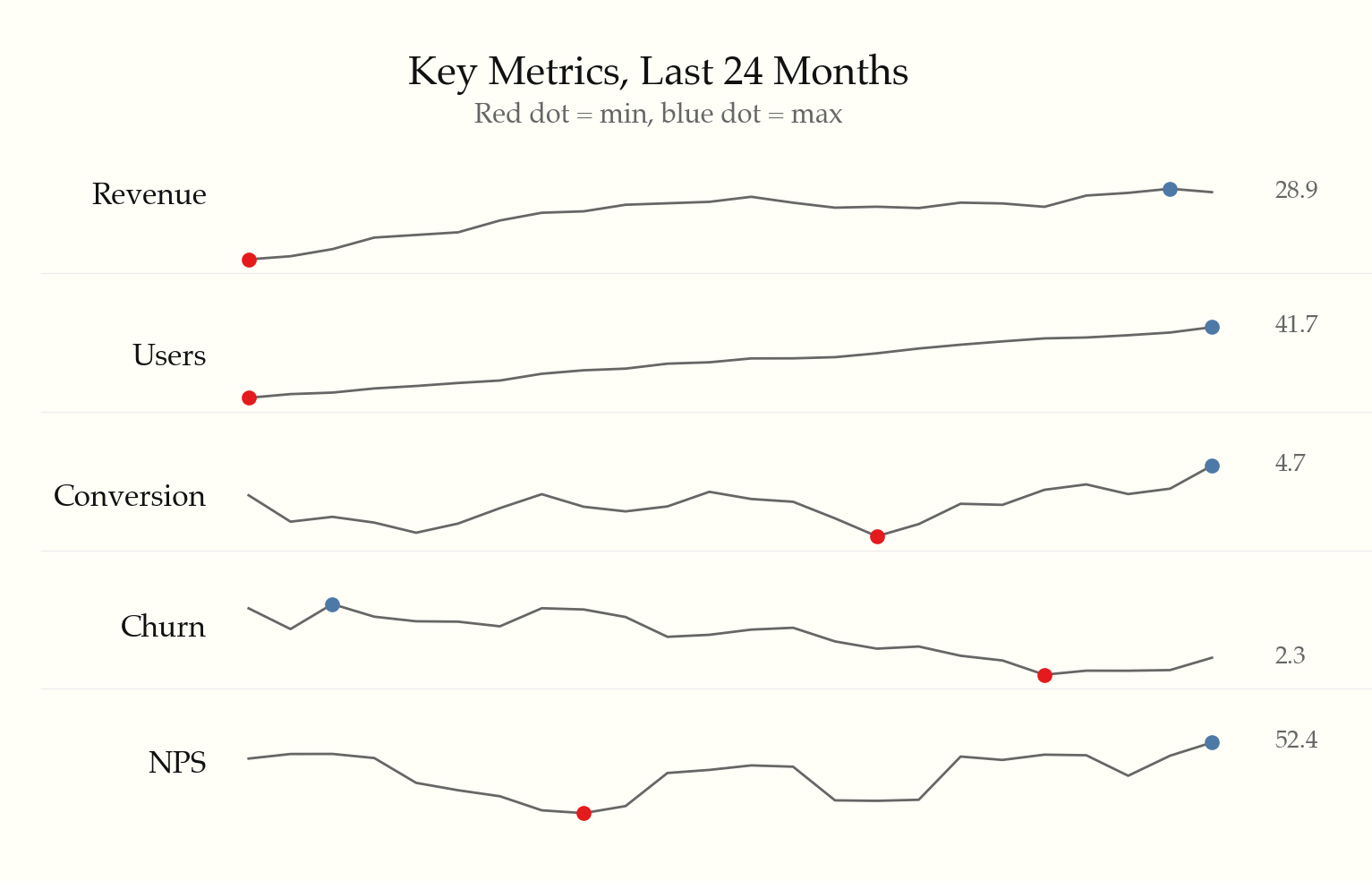

Sparklines — word-sized charts with min/max markers

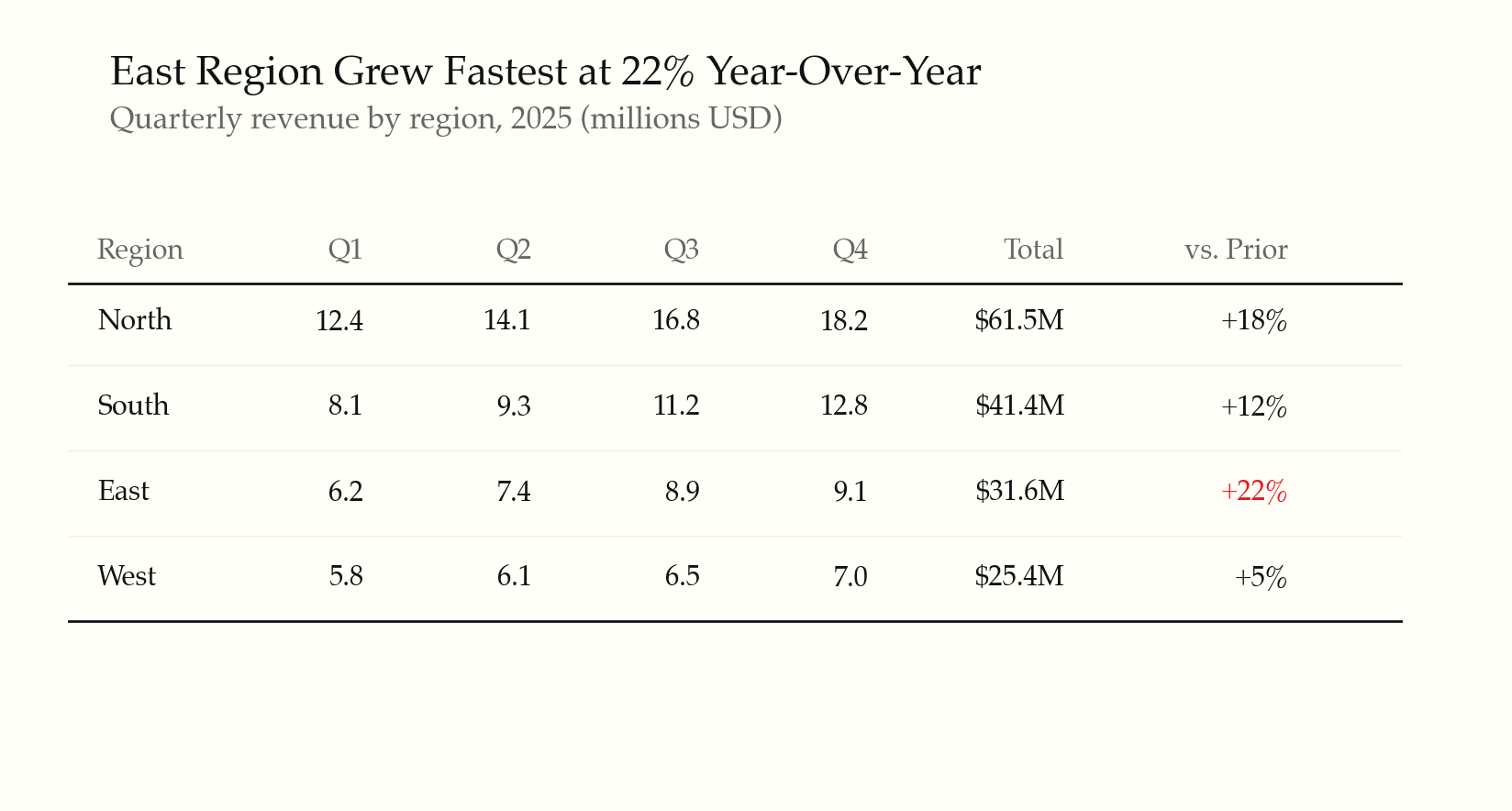

Data table — whitespace, thin rules, highlighted outlier

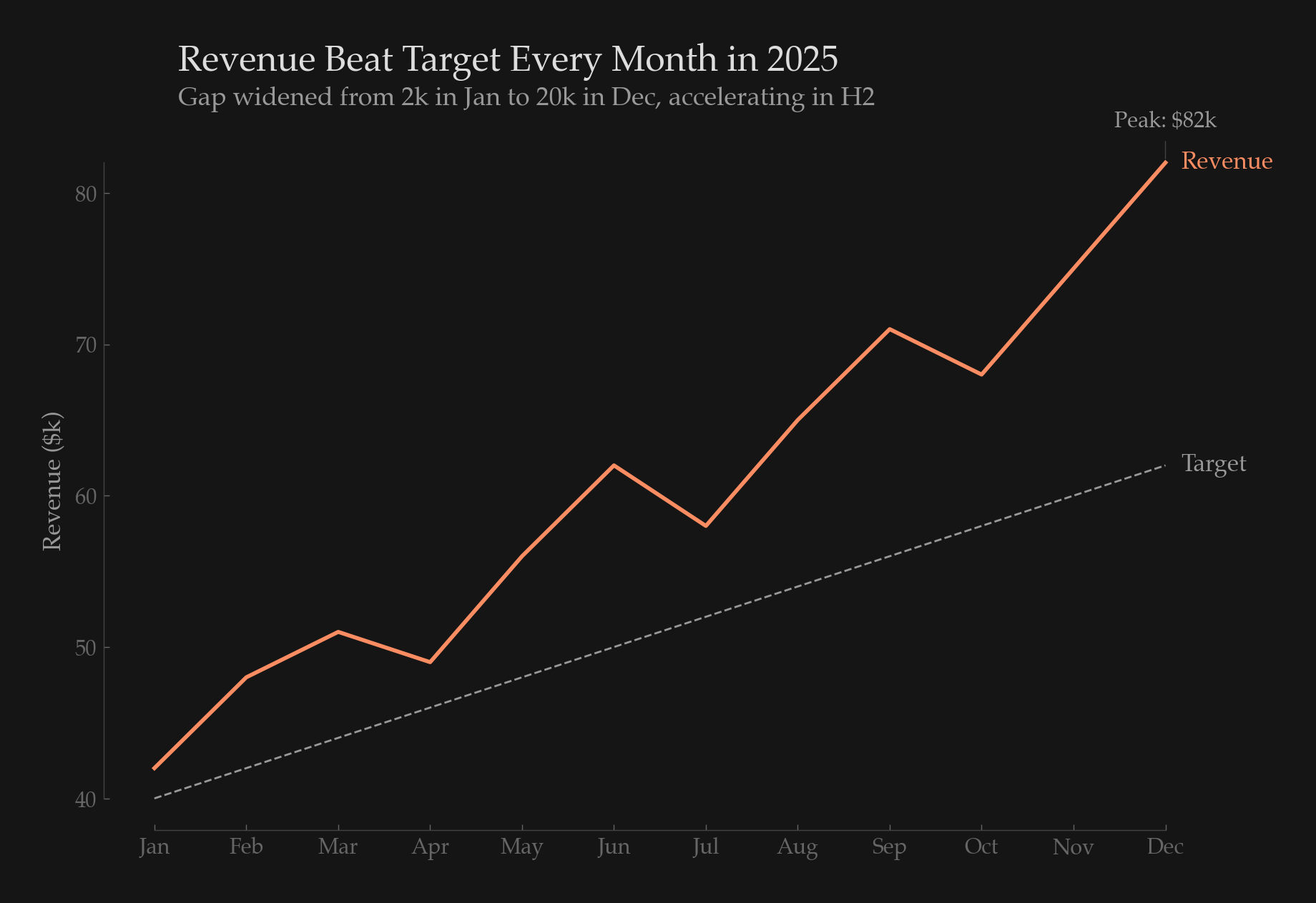

Dark mode — intentional palette, not inverted

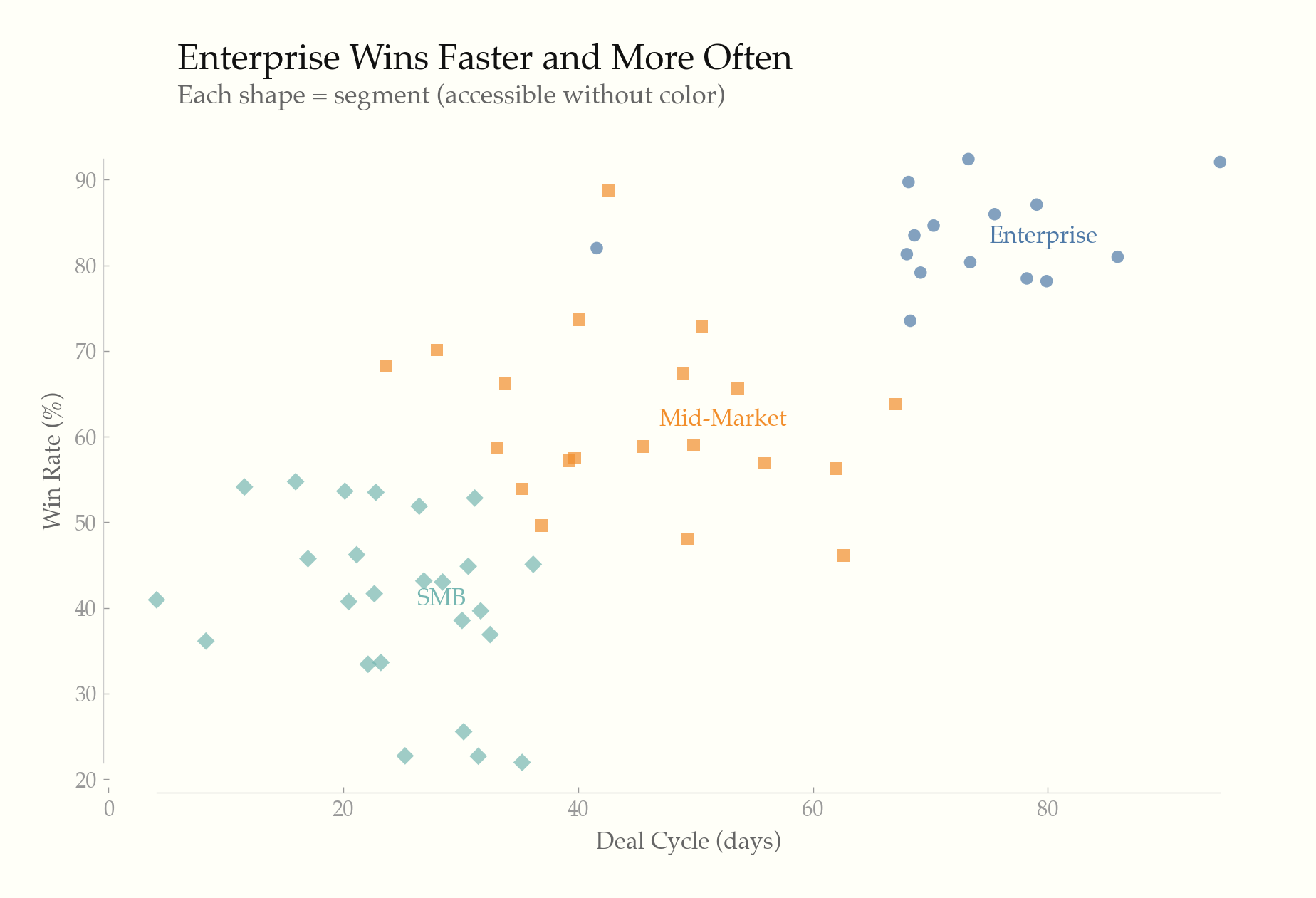

Accessible scatter — dual-encoded with shape + color

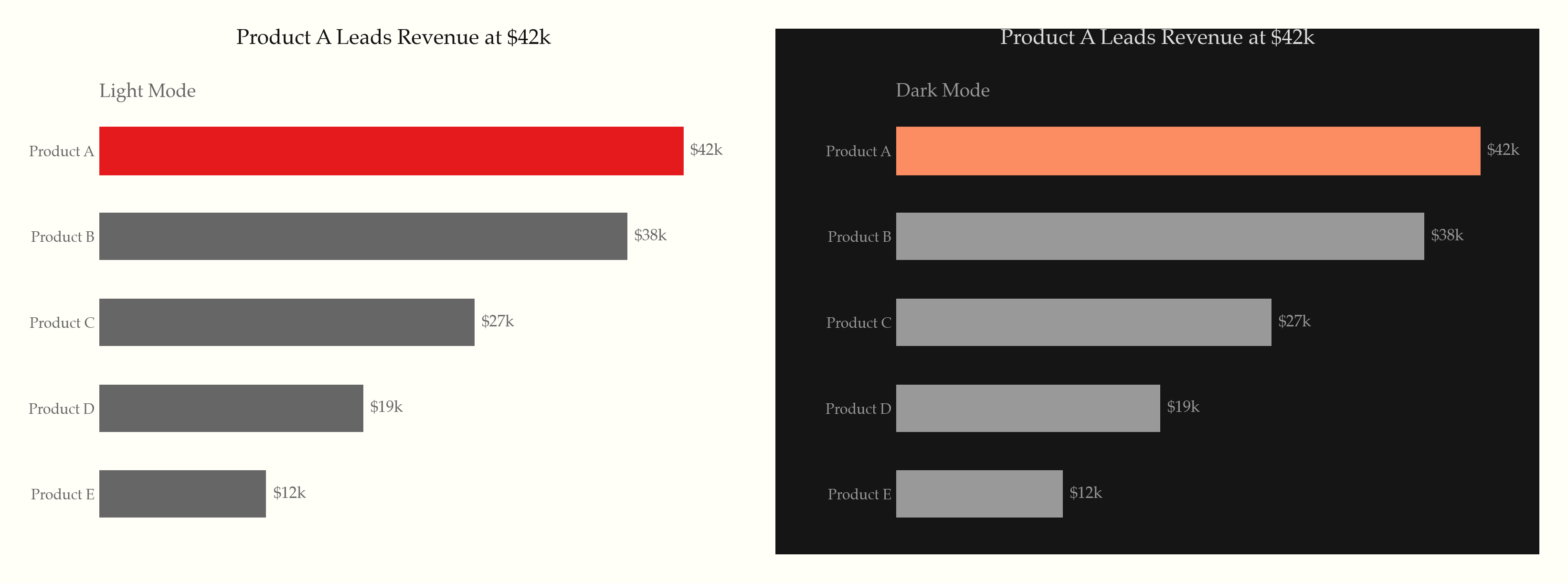

Light & dark — same chart, both themes

What it does

22 universal rules applied to every chart, organized in three tiers:

Static principles (rules 1–14) — the Tufte foundation:

• Maximize data-ink ratio — remove gridlines, borders, legends, and decoration that don't convey data
• Direct labeling, range-frame axes, no 3D, no pie charts (unless forced), no dual y-axes
• Serif typography, off-white backgrounds, gray as primary color with selective highlighting
• Annotate notable features, show comparison context, minimal tooltips

Screen-first principles (rules 15–19) — modern interactive contexts:

• Progressive disclosure (overview first, details on hover/tap/click)
• WCAG accessibility (contrast ratios, dual encoding, keyboard nav, screen reader text alternatives)
• Responsive design (fluid/adaptive strategies, touch targets, mobile-adapted chart types)
• Purposeful animation (data transitions only, respect prefers-reduced-motion)
• Intentional dark mode (semantic color tokens, never invert, reduce saturation)

Content & formatting (rules 20–22) — what Tufte assumed but never codified:

• Titles assert findings ("Revenue Surged 23%"), not axis descriptions
• Numbers formatted for humans ($1.2M, thousand separators, matched precision)
• Don't chart what a sentence or table can say better

Supported libraries

Library	Rule file	Language
Recharts	rules/recharts.md	React/JSX
ECharts	rules/echarts.md	JavaScript
Chart.js	rules/chartjs.md	JavaScript
matplotlib	rules/matplotlib.md	Python
Plotly	rules/plotly.md	Python/JS
D3.js / SVG / HTML	rules/svg-html.md	Web

Additional references

• rules/interactive-and-accessible.md — progressive disclosure, accessibility, responsive, animation, dark mode
• rules/typography-and-color.md — font stacks, palettes, hex values
• rules/anti-patterns.md — common violations and one-liner fixes
• rules/small-multiples-sparklines.md — small multiples, sparklines, slopegraphs

Based on

• The Visual Display of Quantitative Information (1983)
• Envisioning Information (1990)
• Visual Explanations (1997)
• Beautiful Evidence (2006)

License

MIT
