Custom ESP32 BLE HID controller + matching PCB design.
This project combines:
- ESP32 firmware (BLE composite keyboard + mouse)
- KiCad PCB layout for a dedicated 7-button controller
- Multi-mode input system for productivity + automation
Designed as a personal hardware controller that behaves like a wireless keyboard/mouse macro pad.
- BLE composite HID device (keyboard + mouse)
- 7 physical buttons
- Mode switching system
- Auto-click / auto-key spam mode
- Windows quick-launch macros
- Non-blocking firmware architecture
- Visual LED status patterns
- Custom PCB layout (KiCad)

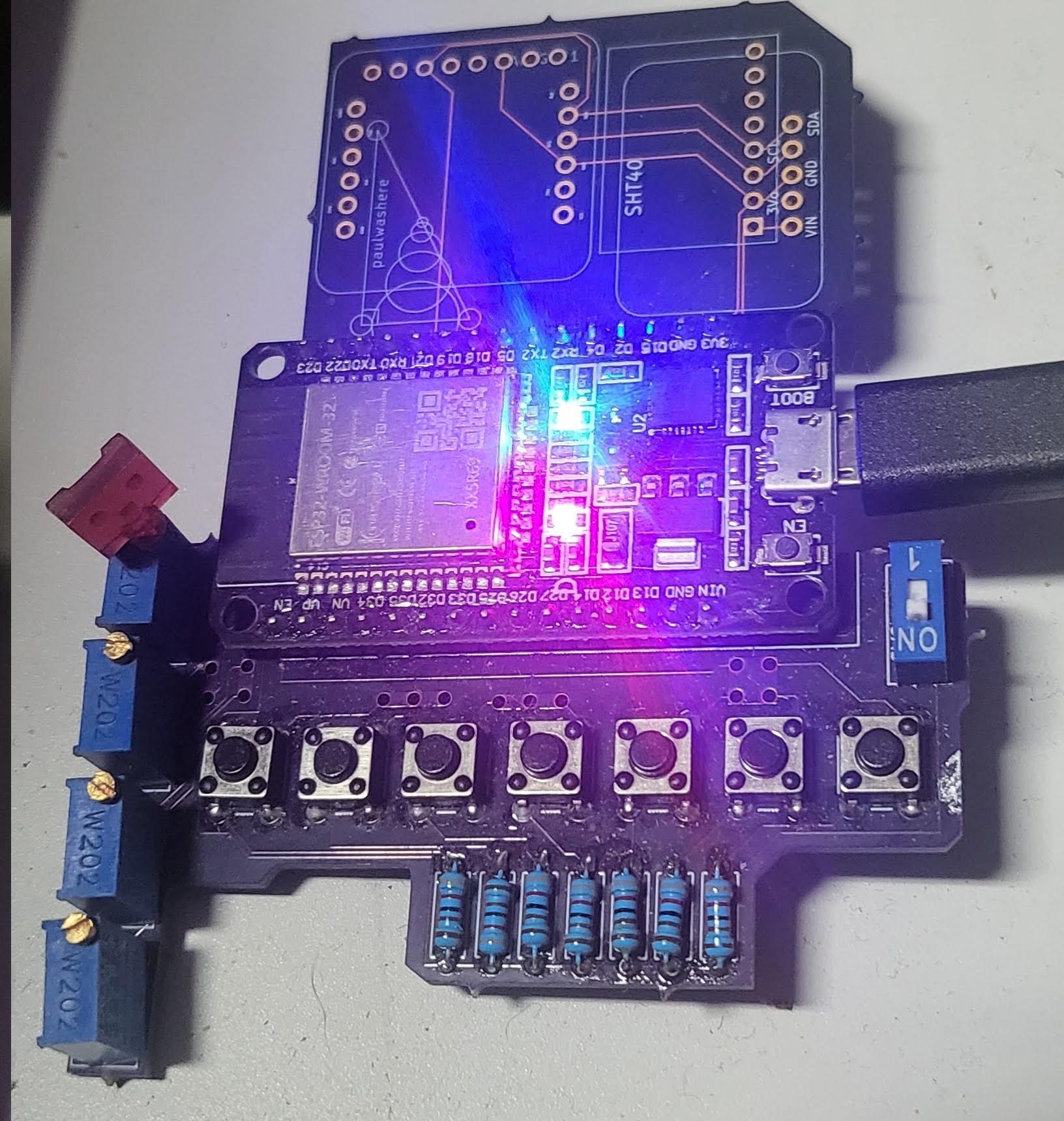

ESP32-based custom PCB with:
- 7 tactile switches
- Onboard LED status indicator
- ESP32 dev module header
- Dedicated GPIO routing per button

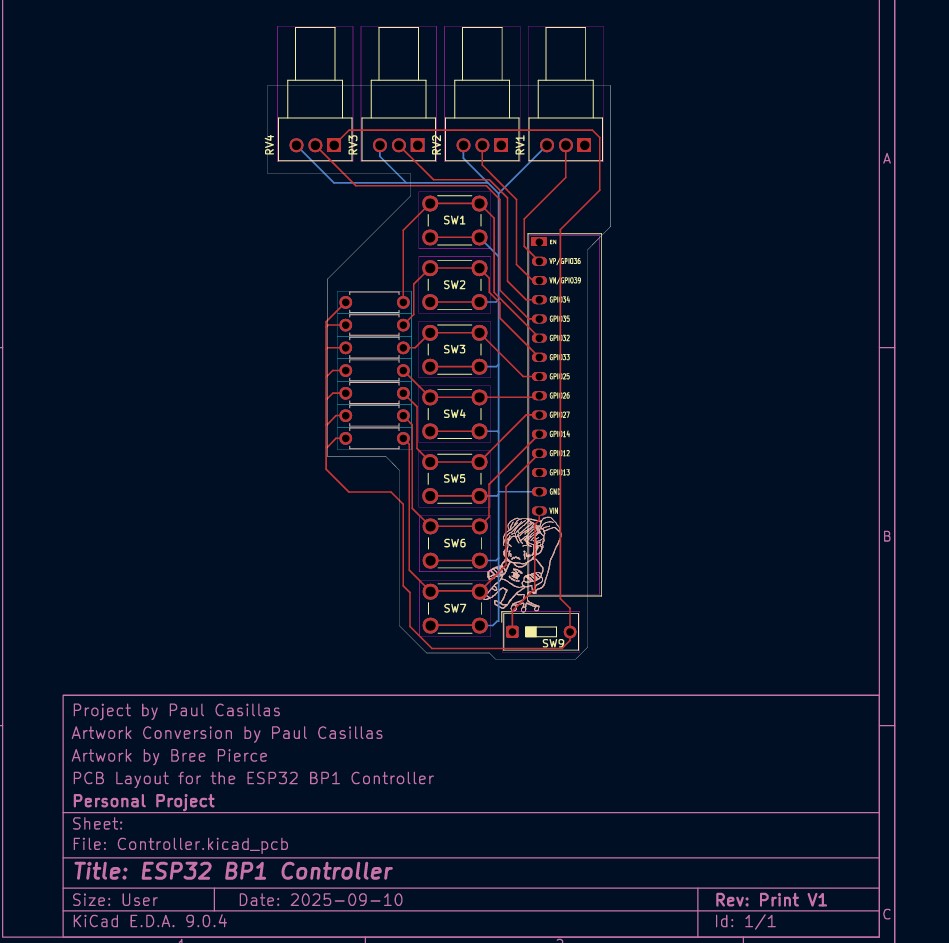

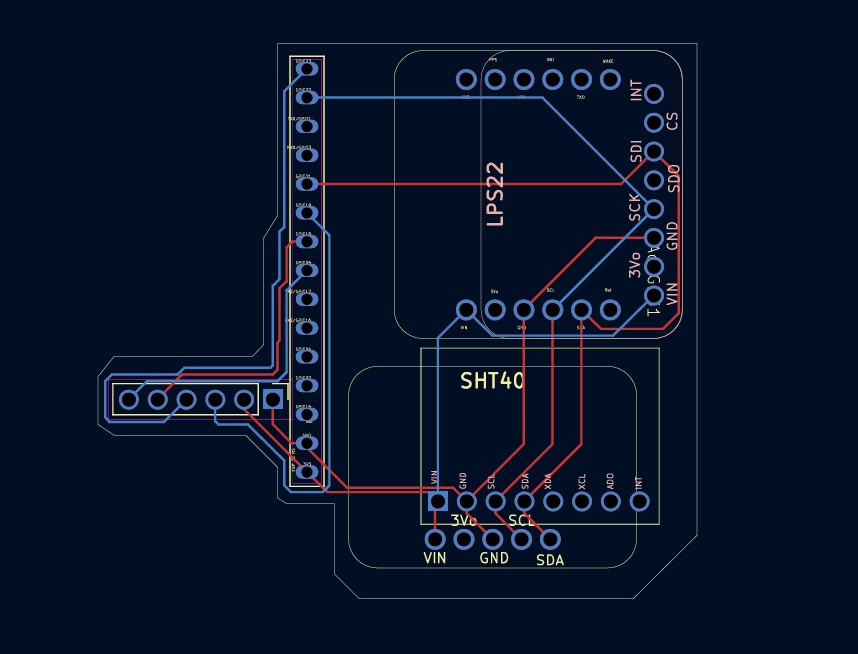

KiCad layout included in repository.
File:
hardware/Controller.kicad_pcb
This board is designed specifically to run the included firmware.
The controller has 3 operating groups.
Button 6 cycles groups.
Button 7 forces disconnect (reboot).
| Button | Action |
|---|---|
| B1 | Ctrl + C |
| B2 | Ctrl + V |
| B3 | Ctrl + X |
| B4 | Ctrl + Z |
| B5 | 8-second mouse movement run |
LED: solid ON when connected
| Button | Action |
|---|---|
| B1 | Windows search → cmd → ssh CB37 |
| B2 | Launch Edge |
| B3 | Launch Super |
| B4 | Launch Arduino |
| B5 | Launch Bluetooth |
LED: 2 blink pattern
Toggle behaviors:
| Button | Mode |
|---|---|
| B1 | Auto left click |
| B2 | Auto right click |
| B3 | Auto middle click |
| B4 | Spam key “E” |
| B5 | Spam key “F” |
Press the same button again to stop.
LED: 3 blink pattern
- Off → not connected
- Solid → group 1
- 2 blinks → group 2
- 3 blinks → group 3
Blink sequence repeats every 2 seconds.
- Arduino IDE
- ESP32 board package
- NimBLE / BLE HID libraries
Open:
firmware/PaulsESP32.ino
Compile and upload to the board.
- Power the controller
- Pair over Bluetooth
- Use button 6 to select mode
- Use buttons 1–5 for actions
Designed primarily for Windows but functions as a generic BLE HID device.
firmware/
PaulsESP32.ino
hardware/
Controller.kicad_pcb
schematics/
PCB + firmware design: Paul Casillas
Artwork: Bree Pierce
Personal project.
MIT — free to modify and build.
file is in
AutoClicker/AutoClickerbyController.ino
