College Library Management System

This project is a backend system for managing books, students, and book issuance for college library, with a React frontend.

TECH STACK

• Backend: FastAPI (Python)
• Database: PostgreSQL (Aiven Cloud)
• ORM: SQLAlchemy
• Frontend: React (with Vite)
• Styling: Tailwind CSS
• Validation: Pydantic

PROJECT STRUCTURE

Library-Management-System/
 │
 ├───backend/
 │   │   .env
 │   │   requirements.txt
 │   │
 │   └───app/
 │       │   dependencies.py
 │       │   main.py
 │       │   __init__.py
 │       │
 │       ├───core/
 │       │      config.py
 │       │      scheduler.py
 │       │      __init__.py
 │       │
 │       ├───crud/
 │       │      crud_book.py
 │       │      crud_book_issue.py
 │       │      crud_student.py
 │       │      __init__.py
 │       │
 │       ├───db/
 │       │      base_class.py
 │       │      database.py
 │       │      init_db.py
 │       │      session.py
 │       │      __init__.py
 │       │
 │       ├───email-templates/
 │       │       due_soon_reminder.html
 │       │       overdue_reminder.html
 │       │
 │       ├───models/
 │       │      book.py
 │       │      book_issue.py
 │       │      common.py
 │       │      student.py
 │       │      __init__.py
 │       │
 │       ├───routers/
 │       │   │   ai_assistant.py
 │       │   │   book_issue_routes.py
 │       │   │   book_routes.py
 │       │   │   health_check.py
 │       │   │   stats_routes.py
 │       │   │   student_routes.py
 │       │   │   __init__.py
 │       │   │
 │       │   ├───ai_assistant/
 │       │         ai_assistant_routes.py
 │       │         __init__.py
 │       │
 │       ├───schemas/
 │       │       ai_assistant.py
 │       │       book.py
 │       │       issue.py
 │       │       student.py
 │       │       __init__.py
 │       │
 │       ├───services/
 │       │       ai_assistant_service.py
 │       │       email_service.py
 │       │       library_analytics_service.py
 │       │       __init__.py
 │       │
 │       ├───utils/
 │               email_utils.py
 │
 ├───frontend/
       │    .env
       │    .gitignore
       |    eslint.config.js
       │    index.html
       │    package.json
       │    package-lock.json
       │    postcss.config.cjs
       │    tailwind.config.cjs
       |    vite.config.cjs
       ├───src/
       │   App.css
       │   App.jsx
       │   index.css
       │   main.jsx
       │
       ├───assets
       │   │
       │   └───textures
       │           leather.jpg
       │           linen.jpg
       │           parchment.jpg
       │
       ├───components
       │       AIAssistant.jsx
       │       BookCard.jsx
       │       ChatInterface.jsx
       │       Navbar.jsx
       │       ResponsiveContainer.jsx
       │
       ├───pages
       │       AddBookPage.jsx
       │       AddStudentPage.jsx
       │       AiAssistantPage.jsx
       │       BookDetailPage.jsx
       │       BooksPage.jsx
       │       EditBookPage.jsx
       │       EditStudentPage.jsx
       │       HomePage.jsx
       │       IssueBookPage.jsx
       │       StudentIssuedBooksPage.jsx
       │       StudentsPage.jsx
       │
       ├───services
               apiClient.js

SETUP INSTRUCTIONS

Prequisites

• Python 3.9+
• Node.js (v18+) and npm/yarn
• Access to the Aiven PostgreSQL database (credentials in backend/.env)
• Access to the Gemini API
• Access to Mailjet API

Configuration

To enable email notifications, the following environment variables must be set in your .env file (located in the backend/ directory or your deployment environment):

First create an account in Mailjet. Then, get the api and secret keys.

• MAIL_USERNAME=your_api_key
• MAIL_PASSWORD=your_secret_key
• MAIL_FROM=your_registered_mail
• MAIL_PORT=587
• MAIL_SERVER=in-v3.mailjet.com
• MAIL_FROM_NAME=Any Suitable Name
• TEMPLATE_FOLDER=./app/email-templates

git clone https://github.com/Subrojyoti/AI-Library-Management-System.git
cd AI-Library-Management-System

Backend Setup

1. Navigate to the backend/ directory: cd backend
2. Create a Python virtual environment: python -m venv .venv
3. Activate the virtual environment: .venv/Scripts/activate
4. Install dependencies: pip install -r requirements.txt
5. Create a .env file in the backend/ directory by copying backend/.env.example with proper credentials

Frontend Setup

1. Navigate to the frontend/ directory: cd frontend
2. Install dependencies: npm install (or yarn install)
3. Create a .env file in the frontend/ directory by copying frontend/.env.example

Run Locally

Create two terminals

• Teminal 1: Navigate to backend/ directory and run FAST API application uvicorn app.main:app --reload

• Terminal 2: Navigate to frontend/ directory and run the React application npm run dev

Frontend will be available at http://localhost:5173 (or other port specified by vite)

API endpoints will be available at http://localhost:8000/api/v1
Swagger UI will be available at http://localhost:8000/docs

Sample API Usage (Example)

Get Book by id:

• GET request
• API available as /api/v1/books/{book_id}
• Parameters: book_id

curl -X GET http://localhost:8000/api/v1/books/1

Response (example)

{
  "author": "Douglas Adams",
  "category": "Science Fiction",
  "created_at": "2023-01-01T10:00:00Z",
  "id": 1,
  "isbn": "9780345391803",
  "num_copies_available": 5,
  "num_copies_total": 5,
  "title": "The Hitchhiker's Guide to the Galaxy",
  "updated_at": "2023-01-01T10:00:00Z"
}

DB SCHEMA DESIGN

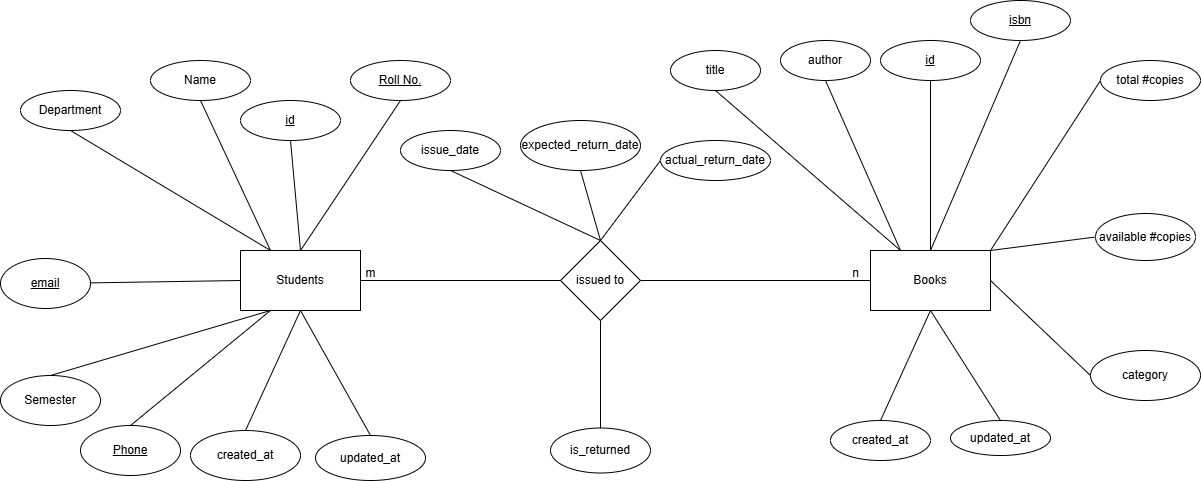

ER Diagram

Tables & Fields

1. Students

o	id (int, primary key, auto-incremented)
o	name (string)
o	roll_number(string, unique)
o	department(string)
o	semester(int)
o	phone(string, unique)
o	email(string, unique)
o	created_at(datetime, auto-generated)
o	updated_at(datetime, auto-generated)

2. Books

o	id(int, primary key)
o	title(string)
o	author(string)
o	isbn(string, unique)
o	num_copies_total(int)
o	num_copies_available(int)
o	category(string)
o	created_at(datetime, auto-generated)
o	updated_at(datetime, auto-generated)

Relationships

1. Book issue

o	book_id(int, foreign key)
o	student_id(int, foreign key)
o	issue_date(datetime)
o	expected_return_date(date)
o	actual_return_date(datetime, nullable)
o	is_returned(bool)

BONUS FEATURES

Overdue Tracking and Reminder System (Bonus)

The system includes a bonus feature to track overdue books and send email reminders to students.

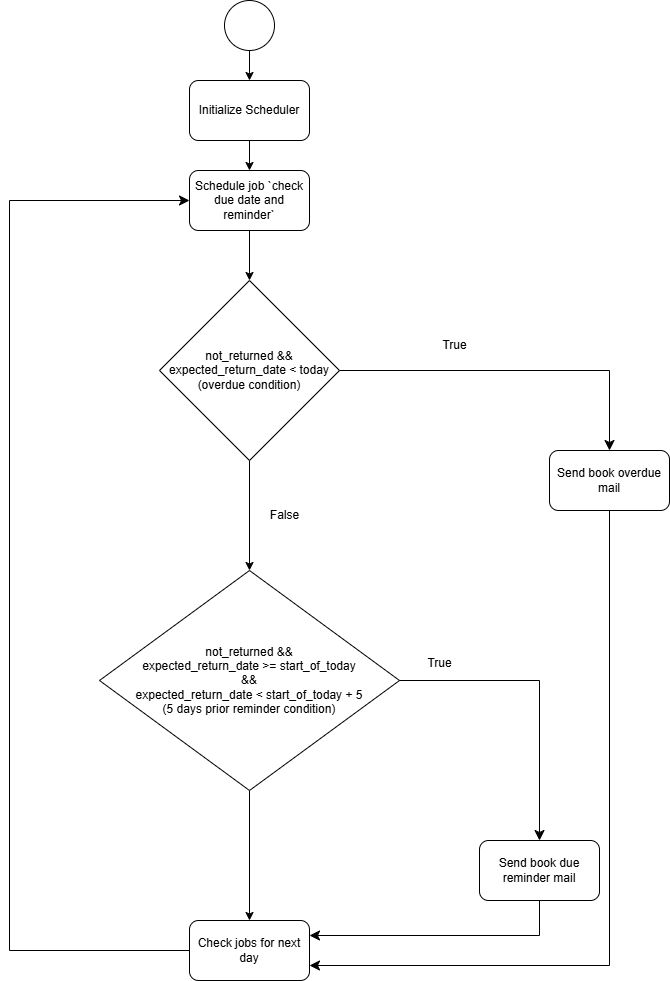

Design

Implementation

• Scheduling: APScheduler is used to run a daily job to check for overdue and due-soon books.
  • The scheduler (AsyncIOScheduler) is initialized and managed within the FastAPI application's lifespan events (see app/main.py and app/core/scheduler.py).
  • A single job (check_due_dates_and_send_reminders) is scheduled to run daily (default: 4:30 AM UTC (i.e 10:00 AM IST)).
• Email Notifications: fastapi-mail is used for sending HTML email reminders.
  • Email utility functions are located in app/utils/email_utils.py.
  • Email templates (Jinja2 HTML) are stored in the app/templates/ directory:
    • overdue_reminder.html: For books that are past their due date.
    • due_soon_reminder.html: For books due within a configurable window (next 5 days, including today).
• Logic:
  • CRUD functions in app/crud/crud_book_issue.py (get_overdue_book_issues, get_due_soon_book_issues) identify relevant book issues.
  • The scheduled job processes these issues and triggers email sending.

Conversational AI Agent (Super Bonus)

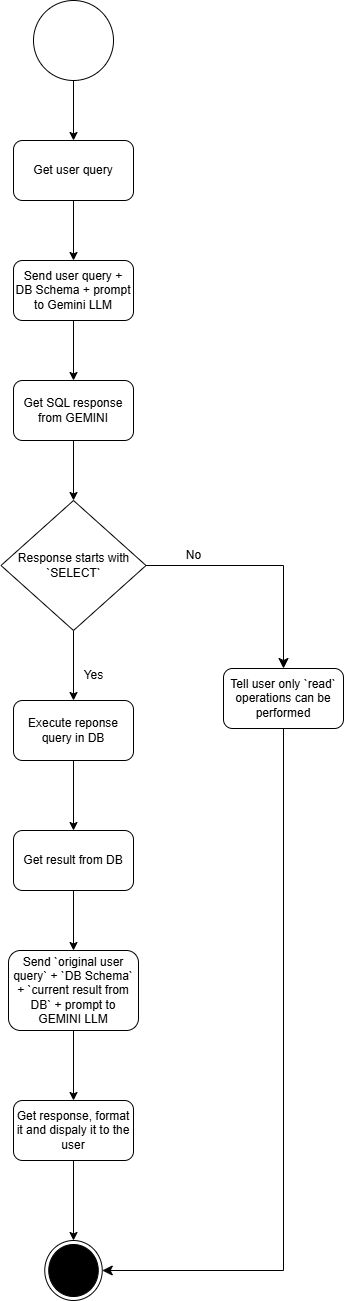

Design

Queries Supported (Examples)

• How many books are overdue ?
• Any Biology related books ?
• Which department borrowed the most books ?
• etc.

For the question, How many new books are added this week ?, according to my current system implementation, I would need to make another table. Books Log table, that keeps track of entry of books/copies into the library system. It should store fields book_id, isbn, copies_added, date_of_entry. This table schema will be used as prompt for the AI agent to generate the response, rest of the logic will be same as others.

DEPLOYMENT

The Backend (Fast API) is deployed on Render. The Frontend (React) is deployed on Vercel.

The Library Mangement System Application can be accessed at https://ai-library-management-system.vercel.app
