OpenGL_Loader

OpenGL-based 3D model viewer and animation tool for loading, visualizing, and manipulating FBX files. This application provides a comprehensive interface for multi-model animation, bone manipulation, and real-time skeleton visualization .

TL;DR

• Multi-Model Support: Load and animate multiple FBX files simultaneously with independent animation states.
• Advanced Bone Manipulation: Transform bones using PropertyPanel sliders or ImGuizmo 3D gizmo, featuring Maya-style shortcuts and automatic World-to-Local coordinate space conversion.
• Granular Bone Picking: Click individual bones directly in the viewport using distance-aware thresholds.
• Skeleton Visualization: 3D sphere impostor joints with customizable line width and professional rendering.
• Animation System: Independent playback per model with play/pause/stop controls and frame scrubbing.
• Auto-Focus Camera: Automatically frames selected models/bones with smooth camera transitions.
• Professional UI: Dockable ImGui panels (Viewport, Outliner, PropertyPanel, TimeSlider, DebugPanel) with JSON-based settings persistence.
• Performance Optimized: Scalable architecture using Hardware Instancing for mass rendering, with efficient OpenGL resource management and optimized skeleton data structures.
• Massive Crowd Rendering: Benchmark system capable of rendering thousands of animated characters with high frame rates using hardware-accelerated instancing.

Quick Demo: For a quick evaluation without building from source, you can download the pre-compiled binary (.exe) and sample FBX models directly from the [Releases] tab.

Quick Start:

mkdir build && cd build
cmake ..
cmake --build . --config Release
./OpenGL_loader  # or OpenGL_loader.exe on Windows

Video Showcase

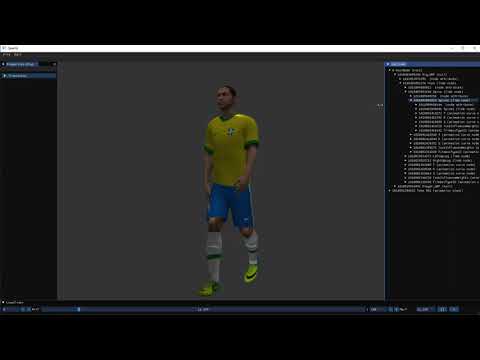

OpenGL loader V1

OpenGL loader V2

## Image Gallery

Core Features

Main Application View

Dockable UI Panels

Multi-Model Support

Model Showcase

AstroBoy Character

Spider Model

Walk Animation

---

Overview

OpenGL_Loader is a professional 3D model viewer and animation tool built with OpenGL, ImGui, and Assimp. It provides a comprehensive interface for loading, viewing, and animating multiple FBX files simultaneously, with advanced features for bone manipulation, skeleton visualization, and animation control.

Inspired by tooling gaps and pipeline challenges I identified during my tenure as a CG Engineer at Intel, this personal project was developed entirely from scratch to provide a professional animation editing experience similar to industry-standard tools like Maya and Blender.

Note on Compatibility: As development was frozen during the team's transition, the tool is primarily optimized for FBX versions 2016-2020. While it handles core rigging and skinning data effectively, newer FBX features or non-standard axis orientations (outside of Y-Up) may result in visual discrepancies. For the most stable experience, it is recommended to use the sample models provided in the /Assets directory.

The system follows a clean architecture with clear separation of concerns:

• Graphics Layer: Rendering, model loading, shader management, mathematical utilities
• IO Layer: Input handling, camera controls, settings persistence, UI components
• Application Logic: Scene management, animation system, transform pipeline

This architecture ensures the UI remains responsive during heavy operations (model loading, animation playback) while providing smooth, interactive user experience.

---

Core Features

Multi-Model Support

Load and display multiple FBX files simultaneously with independent animation states.

Features:

• Load multiple models via File → Import menu or drag-and-drop FBX files directly into the viewport
• Each model maintains independent animation state (play/pause/stop)
• Per-model root node transforms (isolated positioning)
• Visual bounding boxes with selection-based color coding (cyan for selected, yellow for unselected)
• Per-model visibility controls (skeleton, bounding box toggles)

How to Use:

1. Launch OpenGL_loader - it automatically loads settings from app_settings.json
2. Use File → Import to browse for FBX files, or drag-and-drop files directly into the viewport
3. Multiple models can be loaded simultaneously
4. Each model operates independently with its own animation state

Use Case: Compare animations side-by-side, work with multiple characters in the same scene, or analyze different model variations.

Animation System

Professional animation playback with independent state per model.

Features:

• Play/Pause Button (>): Toggles play state without resetting animation time (preserves current frame)
• Stop Button ([]): Stops animation AND resets to frame 0 (starts from beginning)
• Time Slider: Frame-by-frame scrubbing with visual timeline
• Independent FPS: Each model tracks its own animation FPS and duration
• Per-Vertex Bone Blending: Up to 4 bones per vertex for smooth deformation
• Animation Time Tracking: Precise frame control with millisecond accuracy

How to Use:

1. Play/Pause: Click > button to toggle playback (preserves current frame when paused)
2. Stop: Click [] button to stop and reset to frame 0
3. Scrub: Drag time slider to jump to specific frames
4. Frame Display: Current frame number shown in TimeSlider panel

Use Case: Preview animations, analyze motion, or manually adjust bone transforms at specific frames.

Hardware Instancing & Benchmark

A dedicated system for stress-testing and visualizing large-scale crowd simulations with full skeletal animation.

Features:

• Hardware-Accelerated Instancing: Utilizes glDrawElementsInstanced to render thousands of independent agents in a single draw call, significantly reducing CPU overhead.
• Heterogeneous Populations: Support for spawning a mixed grid of multiple distinct FBX models simultaneously.
• Real-Time Procedural Variation: UI-controlled sliders for per-instance variation of Position (XZ jitter), Rotation (Y-axis), and Scale.
• Adaptive Spacing Logic: Built-in spacing calculations to handle models of varying bounding box sizes within the same crowd.

How to Use:

1. Open the Benchmark tab in the Logger/Info panel.
2. Select one or more models from the source list via checkboxes.
3. Set the grid dimensions (Rows/Columns) and click Spawn Benchmark Grid.
4. Adjust the Randomization Controls to add organic variation to the crowd.

Use Case: Stress-test rendering performance, visualize crowd/city-scale scenes, or validate instancing pipelines with skeletal animation.

Bone Manipulation

Transform bones using PropertyPanel sliders or ImGuizmo 3D gizmo.

Features:

• PropertyPanel: Precise numeric controls for translation, rotation, and scale
• ImGuizmo Gizmo: Visual 3D manipulation with Maya-style shortcuts (W/E/R for translate/rotate/scale)
• World-to-Local Conversion: Automatic coordinate space conversion for rig roots
• Scale Compensation: 1:1 gizmo movement regardless of object scale
• Transform Persistence: Bone transforms saved in PropertyPanel bone maps
• Real-Time Updates: Gizmo and PropertyPanel stay synchronized during manipulation

How to Use:

1. PropertyPanel: Use sliders for precise numeric control (Translation, Rotation, Scale)
2. Gizmo: Use 3D gizmo for visual manipulation (W/E/R keys to switch modes)
3. Reset: Click "Reset" buttons in PropertyPanel to restore default transforms

Use Case: Adjust character poses, fix animation issues, or create custom poses for analysis.

Granular Bone Picking

Click individual bones in the viewport to select them directly.

Features:

• Distance-Aware Threshold: Picking threshold scales with character size and camera distance
• Dynamic Precision: Works on characters of any scale (tiny to massive)
• Ray-to-Segment Distance: Mathematical calculation for accurate bone selection
• Visual Feedback: Selected bone highlighted in Outliner and PropertyPanel
• Skeleton Requirement: Bone picking only active when skeleton is visible

How to Use:

1. Enable Skeleton: Toggle skeleton visibility for the model (per-model checkbox or Tools → Show Skeletons)
2. Viewport Click: Click directly on skeleton bones in the viewport (green lines, red joints)
3. Outliner Click: Alternatively, click on bone names in the Outliner panel
4. Keyboard Navigation: Use Arrow Keys (Up/Down) to navigate Outliner when viewport is hovered

Use Case: Quickly select bones for manipulation without navigating the Outliner hierarchy.

Skeleton Visualization

Professional 3D skeleton rendering with sphere impostor joints.

Features:

• Sphere Impostor Technique: 3D shaded spheres using fragment shader calculations (no geometry required)
• Customizable Line Width: Adjustable skeleton bone thickness (1.0 to 10.0)
• Proportional Joint Size: Joint radius scales with line width for visual consistency
• Professional Lighting: Fake 3D lighting creates realistic sphere appearance
• Optimized Skeleton Structure: Linear skeleton data layout for efficient traversal and rendering

How to Use:

1. Enable skeleton visibility via Tools → Show Skeletons or per-model checkbox
2. Adjust line width via Viewport Settings → Skeleton Line Width (1.0 to 10.0)
3. Joint size automatically scales with line width for visual consistency

Use Case: Visualize character rigs, debug bone hierarchies, or analyze skeleton structure.

Auto-Focus Camera

Automatically frames selected models/bones with smooth camera transitions.

Features:

• One-Shot Trigger: Framing triggered once when 'F' key is pressed or Auto-Focus detects selection change
• Mouse Interrupt: Manual camera control always takes priority over auto-framing
• Aspect Ratio Awareness: Adjusts framing distance based on viewport aspect ratio
• Smooth Transitions: Exponential interpolation for professional camera movement
• Bounding Box Based: Uses model/bone bounding boxes for accurate framing
• Configurable Multiplier: Adjustable framing distance multiplier (1.0 = tight, 10.0 = loose)

How to Use:

1. Manual Framing: Press 'F' key to auto-frame selected model/bone
2. Auto-Focus: Enable Tools → Auto Focus to automatically frame when gizmo is released
3. Camera Controls:
   • Orbit: Alt + Left Mouse Button (drag)
   • Zoom: Mouse Wheel or Alt + Right Mouse Button (drag)
   • Pan: Alt + Middle Mouse Button (drag)

Use Case: Quickly focus on specific models or bones without manual camera adjustment.

Professional UI

Dockable ImGui panels with comprehensive controls.

Features:

• Viewport Panel: 3D rendering with camera controls (orbit, zoom, pan)
• Outliner: Hierarchical view of all loaded models' bone structures with keyboard navigation
• PropertyPanel: Transform controls for selected nodes with reset buttons
• TimeSlider: Animation timeline with play/pause/stop controls and frame display
• DebugPanel: Structured logging system with color-coded messages and filtering
• Viewport Settings: Gradient background controls, skeleton line width, camera settings

Use Case: Customize workspace layout, access all features quickly, or debug application behavior.

Settings Persistence

JSON-based configuration with automatic saving.

Features:

• Recent Files: Tracks last 6 imported files with path canonicalization
• Camera State: Saves camera position, rotation, and zoom level
• Window Layout: Preserves ImGui docking layout between sessions
• Environment Settings: Gradient colors, skeleton line width, far clipping plane
• UI State Persistence: Essential application states, including camera configuration, window layout, Outliner filters (Geometry, Animations, Rigs), and Logger levels (Info, Warning, Error), are automatically persisted to app_settings.json
• Auto-Save: Throttled auto-save (60-second interval) prevents excessive disk writes
• Migration Logic: Handles missing keys and invalid values with sensible defaults

Use Case: Maintain workflow continuity, preserve camera positions, or share settings between machines.

---

Controls & Shortcuts

Shortcut	Action
W	Switch gizmo to Translate mode
E	Switch gizmo to Rotate mode
R	Switch gizmo to Scale mode
F	Frame selected model/bone (auto-focus)
Alt + Left Mouse	Orbit camera
Alt + Right Mouse	Zoom camera
Alt + Middle Mouse	Pan camera
Arrow Keys (Up/Down)	Navigate Outliner (when viewport is hovered)
Double-click Outliner	Select bone/node
Click Viewport	Select model (or bone if skeleton visible)

---

Architecture

The system follows a modular architecture with clear separation between graphics rendering, input handling, and application logic:

Graphics Layer Components

1. Model (src/graphics/model.h/cpp)

Purpose: Single FBX model loading and rendering with animation support

Key Features:

• Assimp-based FBX loading with bone hierarchy parsing
• Per-vertex bone blending (up to 4 bones per vertex)
• Linear skeleton optimization for performance
• Bone picking via ray-to-segment distance calculation
• Sphere impostor rendering for skeleton visualization

Performance: Linear skeleton structure provides efficient traversal for animation and rendering.

2. ModelManager (src/graphics/model_manager.h/cpp)

Purpose: Multi-model management with independent animation states

Key Features:

• Collection of ModelInstance objects (wraps Model with animation state)
• Independent animation playback per model
• Per-model root node transform isolation
• Global skeleton/bounding box visibility toggles
• Efficient rendering pipeline with shared shader uniforms

Design Decision: ModelInstance separates animation state from model data, allowing multiple instances of the same model with different animations.

3. Raycast (src/graphics/raycast.h/cpp)

Purpose: High-performance raycasting for viewport selection

Key Features:

• Screen-to-world ray conversion using inverse view/projection matrices
• Kay-Kajiya slab method for AABB intersection (O(1) complexity)
• Ray-to-line-segment distance calculation for bone picking
• Pre-calculated inverse direction for performance optimization

Performance: Pre-calculated inverse direction avoids divisions in hot path.

4. BoundingBox (src/graphics/bounding_box.h/cpp)

Purpose: Visual bounding box rendering with selection-based styling

Key Features:

• Bone-based bounding box calculation (O(Bones) complexity)
• Selection-based color coding (cyan for selected, yellow for unselected)
• Line thickness variation for visual feedback
• Per-model visibility control

Performance: Bone-based calculation is ultra-fast compared to vertex iteration.

IO Layer Components

1. Scene (src/io/scene.h/cpp)

Purpose: Main scene management and application logic coordination

Key Features:

• Viewport framebuffer rendering with gradient background
• Camera framing logic with one-shot trigger and mouse interrupt
• Auto-focus feature integration
• UI panel coordination and layout management
• Settings integration and persistence

Threading Model: Single-threaded with action-based event handling.

2. Camera (src/io/camera.h/cpp)

Purpose: Camera controls with smooth framing and aspect ratio awareness

Key Features:

• Orbit, zoom, and pan controls (Maya-style)
• Smooth camera framing with exponential interpolation
• Aspect ratio awareness for accurate framing
• Zoom clamping (1.0f to 90.0f) to prevent distortion
• Orbit distance safeguard (prevents division by zero)

Design Decision: Exponential interpolation provides smooth, professional camera movement.

3. AppSettings (src/io/app_settings.h/cpp)

Purpose: Settings persistence with JSON serialization

Key Features:

• JSON-based configuration (app_settings.json)
• Recent files tracking with path canonicalization
• Auto-save throttling (60-second interval)
• Migration logic for invalid values
• Missing key handling with fallback to defaults

File Location: app_settings.json in executable directory or project root.

4. UI Components (src/io/ui/)

Purpose: ImGui-based UI panels for user interaction

Key Components:

• Outliner: Hierarchical bone structure display with keyboard navigation
• PropertyPanel: Transform controls with bone maps and reset buttons
• TimeSlider: Animation timeline with transport controls
• GizmoManager: ImGuizmo integration with Maya-style shortcuts
• ViewportPanel: 3D viewport rendering with selection handling
• DebugPanel: Structured logging with filtering and copy-to-clipboard

Design Decision: Dockable windows provide flexible workspace layout.

Data Flow

Model Loading

User selects FBX file (File menu or drag-and-drop)
    ↓
Scene::setFilePath()
    ↓
ModelManager::loadModel()
    ↓
Model::loadModel() (Assimp parsing)
    ↓
Model::processNode() (hierarchy traversal)
    ↓
Model::processMesh() (vertex/bone data extraction)
    ↓
Model::updateLinearSkeleton() (performance optimization)
    ↓
Outliner::addFBXScene() (UI hierarchy update)
    ↓
PropertyPanel::initializeBoneMaps() (transform storage)

Bone Picking

User clicks viewport
    ↓
ViewportPanel::handleMouseClick()
    ↓
ViewportSelectionManager::performSelection()
    ↓
Raycast::screenToWorldRay() (mouse to world ray)
    ↓
Raycast::rayIntersectsAABB() (model selection)
    ↓
Model::pickBone() (bone segment testing)
    ↓
Raycast::rayToLineSegmentDistance() (distance calculation)
    ↓
Outliner::setSelectionToNode() (UI update)
    ↓
PropertyPanel::updateFromSelection() (transform display)

Animation Playback

User clicks Play button
    ↓
TimeSlider::getPlay_stop() returns true
    ↓
Application::updateAnimations()
    ↓
ModelInstance::setPlaying(true)
    ↓
ModelInstance::updateAnimation() (time accumulation)
    ↓
Model::updateLinearSkeleton() (bone transform calculation)
    ↓
Model::render() (bone matrix upload to shader)
    ↓
GPU per-vertex bone blending (shader)

Architecture Diagram

┌─────────────────────────────────────────────────────────────┐
│                    Application (main.cpp)                    │
│  ┌──────────────────────┐  ┌──────────────────────────────┐ │
│  │   Scene              │  │   ModelManager               │ │
│  │   (IO Layer)         │  │   (Graphics Layer)          │ │
│  │                      │  │                              │ │
│  │  ┌────────────────┐  │  │  ┌────────────────────────┐  │ │
│  │  │ Camera         │  │  │  │ ModelInstance[]        │  │ │
│  │  │ (Controls)     │  │  │  │  ┌──────────────────┐  │  │ │
│  │  └────────────────┘  │  │  │  │ Model           │  │  │ │
│  │                      │  │  │  │  │ (FBX Data)     │  │  │ │
│  │  ┌────────────────┐  │  │  │  │  └──────────────────┘  │  │ │
│  │  │ UI Manager     │  │  │  │  └────────────────────────┘  │ │
│  │  │  ├─ Outliner   │  │  │  │                              │ │
│  │  │  ├─ Property   │  │  │  │  ┌────────────────────────┐  │ │
│  │  │  │  Panel       │  │  │  │  │ Raycast                │  │ │
│  │  │  ├─ TimeSlider │  │  │  │  │ (Selection)             │  │ │
│  │  │  ├─ Gizmo      │  │  │  │  └────────────────────────┘  │ │
│  │  │  └─ Viewport   │  │  │  │                              │ │
│  │  └────────────────┘  │  │  └──────────────────────────────┘ │
│  │                      │  │                                    │
│  │  ┌────────────────┐  │  │  ┌──────────────────────────────┐ │
│  │  │ AppSettings    │  │  │  │ Shader Manager               │ │
│  │  │ (Persistence)  │  │  │  │ (Rendering)                  │ │
│  │  └────────────────┘  │  │  └──────────────────────────────┘ │
│  └──────────────────────┘  └──────────────────────────────────┘ │
└─────────────────────────────────────────────────────────────────┘
                              │
        ┌─────────────────────┼─────────────────────┐
        │                     │                     │
┌───────▼────────┐  ┌─────────▼────────┐  ┌─────────▼────────┐
│ OpenGL         │  │ GLFW             │  │ Assimp/openFBX   │
│ (Rendering)    │  │ (Window)         │  │ (FBX Loading)    │
│                │  │                  │  │                  │
│ - Shaders      │  │ - Input Events   │  │ - Model Parsing   │
│ - VAO/VBO/EBO  │  │ - Window Mgmt    │  │ - Bone Hierarchy │
│ - State Mgmt   │  │ - Context        │  │ - Animation Data │
└────────────────┘  └──────────────────┘  └──────────────────┘

---

Project Structure

📁 OpenGL_loader/
│
├── 📁 src/                    # C++ source code
│   ├── 📁 graphics/           # Graphics rendering and model management
│   │   ├── 📄 model.h/cpp     # Single model loading and rendering
│   │   ├── 📄 model_manager.h/cpp  # Multi-model management
│   │   ├── 📄 math3D.h/cpp   # Mathematical utilities
│   │   ├── 📄 shader.h/cpp   # Shader management
│   │   ├── 📄 grid.h/cpp     # Grid rendering
│   │   ├── 📄 bounding_box.h/cpp  # Bounding box rendering
│   │   ├── 📄 raycast.h/cpp  # Raycasting for viewport selection
│   │   └── 📄 defines.h      # Math constants
│   ├── 📁 io/                 # Input/Output and UI
│   │   ├── 📄 scene.h/cpp    # Main scene management
│   │   ├── 📄 camera.h/cpp   # Camera controls
│   │   ├── 📄 keyboard.h/cpp # Low-level keyboard input
│   │   ├── 📄 mouse.h/cpp    # Low-level mouse input
│   │   ├── 📄 app_settings.h/cpp  # Settings persistence
│   │   ├── 📄 fbx_rig_analyzer.h/cpp  # FBX rig analysis
│   │   └── 📁 ui/             # ImGui UI panels
│   │       ├── 📄 outliner.h/cpp  # Hierarchy display
│   │       ├── 📄 property_panel.h/cpp  # Transform controls
│   │       ├── 📄 timeSlider.h/cpp  # Animation timeline
│   │       ├── 📄 gizmo_manager.h/cpp  # Gizmo manipulation
│   │       ├── 📄 viewport_panel.h/cpp  # Viewport rendering
│   │       ├── 📄 viewport_settings_panel.h/cpp  # Viewport settings
│   │       ├── 📄 debug_panel.h/cpp  # Debug information
│   │       ├── 📄 ui_manager.h/cpp  # UI coordination
│   │       └── 📄 pch.h/cpp  # Precompiled header
│   ├── 📁 utils/              # Utility functions
│   │   └── 📄 logger.h/cpp   # Logging system
│   ├── 📄 application.h/cpp  # Main application class
│   ├── 📄 main.cpp            # Application entry point
│   ├── 📄 viewport_selection.h/cpp  # Viewport selection manager
│   └── 📄 version.h           # Version constants
│
├── 📁 Assets/                 # Shader files
│   ├── 📄 vertex.glsl         # Main vertex shader
│   ├── 📄 fragment.glsl       # Main fragment shader
│   ├── 📄 skeleton.vert.glsl  # Skeleton vertex shader
│   ├── 📄 skeleton.frag.glsl  # Skeleton fragment shader
│   ├── 📄 grid.vert.glsl      # Grid vertex shader
│   ├── 📄 grid.frag.glsl      # Grid fragment shader
│   ├── 📄 bounding_box.vert.glsl  # Bounding box vertex shader
│   ├── 📄 bounding_box.frag.glsl  # Bounding box fragment shader
│   ├── 📄 background.vert.glsl  # Background vertex shader
│   └── 📄 background.frag.glsl  # Background fragment shader
│
├── 📁 Dependencies/            # Third-party libraries
│   ├── 📁 imgui/               # ImGui UI framework
│   ├── 📁 ImGuizmo/            # 3D gizmo manipulation
│   ├── 📁 openFBX/             # FBX file parsing
│   ├── 📁 include/             # Header-only libraries (GLM, etc.)
│   └── 📁 lib/                 # Compiled libraries (Assimp, etc.)
│
├── 📁 MD/                      # Documentation files
│   └── 📄 *.md                 # Feature documentation (139 files)
│
├── 📁 media/                   # Screenshots and media
│
├── 📄 CMakeLists.txt           # CMake build configuration
├── 📄 app_settings.json        # Application settings (generated)
├── 📄 imgui.ini                 # ImGui layout (generated)
└── 📄 README.md                # This file

---

Installation

Prerequisites

• C++ Compiler:
  • Windows: MSVC 2017+ or MinGW
  • Linux: GCC 5.4+ or Clang 3.8+
  • macOS: Clang (Xcode)
• CMake: 3.14 or higher
• OpenGL: 3.3+ compatible graphics driver
• Git: For cloning dependencies (GLFW via FetchContent)

Setup Steps

1. Clone or download the project:

   git clone <repository-url>
   cd OpenGL_loader

2. Create build directory:

   mkdir build && cd build

3. Configure with CMake:

   cmake ..

   Windows (Visual Studio):

   cmake .. -G "Visual Studio 17 2022" -A x64

4. Build the project:

   cmake --build . --config Release

   Windows (Visual Studio):

   cmake --build . --config Release

   Linux/macOS:

   make -j4

5. Run the application:

   ./OpenGL_loader  # or OpenGL_loader.exe on Windows

   Note: On first run, the application will create app_settings.json with default settings. You can also copy app_settings.json.template to app_settings.json and customize it before running.

Verify Installation

• Application should start and display the viewport
• Check that ImGui panels are dockable and functional
• Verify File menu can load FBX files
• Test drag-and-drop FBX file loading
• Confirm app_settings.json is created in the executable directory

Dependencies

The project uses CMake's FetchContent to automatically download GLFW. Other dependencies are included in the Dependencies/ folder:

• GLFW 3.3.8: Window management (auto-downloaded)
• ImGui: UI framework (included)
• ImGuizmo: 3D gizmo manipulation (included)
• GLM: Mathematics library (header-only, included)
• Assimp: Model loading (precompiled, included)
• openFBX: FBX file parsing (included)
• GLAD: OpenGL loader (included)

---

Advanced Features

Bone Picking

• Enable: Toggle skeleton visibility for the model (per-model checkbox or global toggle)
• Click: Click directly on skeleton bones in the viewport
• Precision: Distance-aware threshold scales with character size and camera distance
• Feedback: Selected bone highlighted in Outliner and PropertyPanel

Auto-Focus

• Enable: Check Tools → Auto Focus in viewport menu
• Behavior: Camera automatically frames selected model/bone when gizmo is released
• Manual Override: Right mouse button interrupts auto-focus (manual control takes priority)
• Configurable: Adjust framing distance multiplier in Viewport Settings

Gradient Background

• Enable: Check Viewport Settings → Use Gradient Background
• Customize: Adjust top and bottom colors via color pickers
• Presets: Use preset buttons (Dark Gray, Light Gray, Black, White, Default)
• Persistence: Settings saved automatically to app_settings.json

Settings Management

• Recent Files: Last 6 imported files tracked in File menu
• Auto-Save: Settings automatically saved every 60 seconds (throttled)
• Manual Save: Settings saved on application shutdown
• Location: app_settings.json in executable directory or project root

Debug Panel

• Open: Click log icon or access via View menu
• Filter: Toggle Info/Warning/Error messages via checkboxes
• Copy: Click any log line to copy to clipboard
• Clear: Click "Clear" button to clear log history

---

Configuration

The tool is configured via app_settings.json:

{
    "recentFiles": [
        "F:/Work_stuff/Assets/models/Walk.fbx",
        "F:/Work_stuff/Assets/models/Run.fbx"
    ],
    "camera": {
        "position": [0.0, 5.0, 20.0],
        "yaw": -90.0,
        "pitch": -20.0,
        "zoom": 45.0
    },
    "environment": {
        "useGradient": true,
        "viewportGradientTop": [0.2, 0.3, 0.4],
        "viewportGradientBottom": [0.1, 0.15, 0.2],
        "skeletonLineWidth": 2.0,
        "farClipPlane": 5000.0,
        "framingDistanceMultiplier": 1.5,
        "autoFocusEnabled": false,
        "boundingBoxesEnabled": true,
        "skeletonsEnabled": false
    },
    "grid": {
        "centerLineColor": [0.2, 0.2, 0.2],
        "gridLineColor": [0.1, 0.1, 0.1]
    }
}

Configuration Parameters

Parameter	Description	Example
recentFiles	Array of recently imported file paths (max 6)	["F:/Models/character.fbx"]
camera.position	Camera world position (x, y, z)	[0.0, 5.0, 20.0]
camera.yaw	Camera horizontal rotation (degrees)	-90.0
camera.pitch	Camera vertical rotation (degrees)	-20.0
camera.zoom	Camera field of view (degrees)	45.0
environment.useGradient	Enable gradient background	true
environment.viewportGradientTop	Top color for gradient (RGB)	[0.2, 0.3, 0.4]
environment.viewportGradientBottom	Bottom color for gradient (RGB)	[0.1, 0.15, 0.2]
environment.skeletonLineWidth	Skeleton bone thickness (1.0 to 10.0)	2.0
environment.farClipPlane	Maximum clipping distance	5000.0
environment.framingDistanceMultiplier	Camera framing distance multiplier	1.5
environment.autoFocusEnabled	Enable auto-focus on gizmo release	false
environment.boundingBoxesEnabled	Global bounding box visibility	true
environment.skeletonsEnabled	Global skeleton visibility	false

Settings File Discovery

The application automatically searches for app_settings.json in multiple locations:

1. Same directory as executable (for deployment)
2. Project root directory (for development)
3. Current working directory

This allows the same executable to work in different deployment scenarios without modification.

Recent Files

Recent files are automatically tracked with:

• Path Canonicalization: Absolute paths with forward slashes (/) for cross-platform compatibility
• Duplicate Prevention: Opening the same file multiple times results in only one entry (moved to top)
• Existence Check: Non-existent files are automatically removed from the list
• Capacity Limit: Maximum of 6 recent files (oldest removed when limit exceeded)

---

Performance

Optimizations

• Linear Skeleton Structure: Optimized flat skeleton layout for efficient traversal

  • Pre-computed flat array of bone transforms
  • O(Bones) complexity instead of O(Bones × Depth)
  • Eliminates recursive parent chain traversal during rendering

• RAII Resource Management: Move semantics for GPU resources

  • Automatic cleanup of VAO/VBO/EBO on object destruction
  • Prevents resource leaks and double-deletion
  • Efficient resource transfer without expensive copies

• Shared Shader Uniforms: Moved outside model loop

  • View, projection, and lighting uniforms set once per frame
  • Reduces redundant OpenGL state changes
  • Improves rendering performance for multiple models

• Bone-Based Bounding Box: O(Bones) calculation instead of O(Vertices)

  • Ultra-fast bounding box updates
  • Enables real-time bounding box calculation for camera framing
  • Works regardless of mesh complexity

• Pre-Calculated Inverse Direction: Raycasting optimization

  • Inverse direction computed once during Ray construction
  • Avoids repeated divisions in AABB intersection tests
  • Critical for performance in bone picking hot path

• Double-Buffered Image Loading: (Conceptual - for future image loading)

  • Prevents flicker during rapid frame changes
  • Smooth transitions with background loading

Performance Metrics

• Skeleton Rendering: < 1ms for typical character (100 bones)
• Bone Picking: < 5ms for ray-to-segment distance calculation
• Model Loading: Varies by FBX complexity (typically 100-500ms)
• Animation Playback: Smooth frame rates with multiple models
• Memory Usage: Minimal (~50MB base + ~10MB per model)

---

Dependencies

Core Libraries

• OpenGL 3.3+: Graphics rendering API
• GLFW 3.3.8: Window management and input handling
• GLAD: OpenGL function loader
• GLM: Mathematics library (header-only, vector/matrix operations)

Model Loading

• Assimp: FBX/OBJ model loading and parsing
• openFBX: FBX file parsing (used by Assimp)

UI Framework

• ImGui: Immediate mode GUI framework
• ImGuizmo: 3D gizmo manipulation widget

Build System

• CMake 3.14+: Build configuration and dependency management
• FetchContent: Automatic GLFW download and integration

System Requirements

• Operating System: Windows 7+, Linux, macOS
• RAM: 4GB minimum, 8GB recommended
• Graphics: OpenGL 3.3+ compatible GPU
• Disk Space: ~100MB for application and dependencies

---

Troubleshooting

Application Won't Start

Issue: "Failed to initialize GLFW"

• Verify graphics drivers are up to date
• Check that OpenGL 3.3+ is supported
• Ensure no other application is using exclusive fullscreen mode

Issue: "Shader compilation failed"

• Verify Assets/ folder contains all shader files
• Check that shader files are not corrupted
• Ensure shader file paths are correct relative to executable

Issue: "DLL not found" (Windows)

• Verify assimp-vc142-mt.dll is in the same directory as executable
• Check that all required DLLs are present (Assimp, OpenGL drivers)

Models Not Loading

Issue: "FBX file fails to load"

• Verify FBX file is not corrupted
• Check that file path contains no special characters
• Ensure Assimp DLL is accessible (Windows)
• Check Debug Panel for detailed error messages

Issue: "Model loads but appears invisible"

• Verify skeleton is visible (check per-model skeleton checkbox)
• Check that camera is positioned correctly (press 'F' to frame)
• Verify bounding box is visible to confirm model is loaded
• Check far clipping plane setting (may be too small)

Issue: "Textures not loading"

• Verify texture files are in the same directory as FBX
• Check that texture paths in FBX are relative (not absolute)
• Ensure texture file formats are supported (PNG, JPG, TGA)
• Check Debug Panel for texture loading errors

Animation Issues

Issue: "Animation doesn't play"

• Verify model has animation data (check TimeSlider for duration > 0)
• Check that Play button is pressed (not just Pause)
• Ensure model FPS is set correctly (check PropertyPanel)
• Verify animation time slider is not at 0 (unless intentionally stopped)

Issue: "Animation plays but character doesn't move"

• Check that skeleton is visible (green lines should be moving)
• Verify bone transforms are not all zero (check PropertyPanel)
• Ensure animation data is valid (some FBX files have empty animations)

Bone Picking Issues

Issue: "Can't select bones by clicking"

• Verify skeleton is visible (per-model checkbox or global toggle)
• Check that model is selected (bounding box should be cyan)
• Try adjusting camera distance (picking threshold scales with distance)
• Verify bone segments are large enough to click (very small bones may be hard to select)

Issue: "Wrong bone selected"

• This is expected behavior - bone picking selects the parent joint of the clicked segment
• Use Outliner for precise bone selection if needed
• Check that skeleton hierarchy is correct (some FBX files have unusual bone structures)

Camera Issues

Issue: "Camera framing doesn't work"

• Verify model/bone is selected (bounding box should be cyan)
• Check that Auto-Focus is enabled (Tools → Auto Focus)
• Ensure right mouse button is not pressed (manual control takes priority)
• Try pressing 'F' key manually to trigger framing

Issue: "Camera movement is jittery"

• Check that frame rate is stable
• Verify VSync is enabled (Viewport Settings)
• Reduce number of loaded models if performance is poor
• Check Debug Panel for performance warnings

UI Issues

Issue: "Panels are not dockable"

• Verify ImGui docking is enabled (should be enabled by default)
• Check imgui.ini file is writable (may need to delete and restart)
• Try resetting layout (delete imgui.ini and restart application)

Issue: "Gizmo doesn't appear"

• Verify bone/node is selected in Outliner
• Check that gizmo operation mode is set (W/E/R keys)
• Ensure gizmo is not hidden (check Viewport Settings)
• Verify model is not too far from camera (gizmo may be outside viewport)

---

Version

Current Version: 2.0.0
OpenGL Compatibility: OpenGL 3.3+
Platform: Windows (primary), Linux/Mac (should work)
C++ Standard: C++17

Version History

v2.0.0 (Current)

• Formal versioning system established
• Centralized version constants (src/version.h)
• Bone picking with distance-aware threshold
• Skeleton sphere impostor rendering
• Gradient background system
• Animation transport controls (separate pause/stop)
• Linear skeleton optimization
• RAII resource management (move semantics)
• Professional logging system
• Settings persistence improvements

Status

Production-ready tool.
Designed for professional 3D model viewing, animation analysis, and bone manipulation.
Features comprehensive error handling, logging, and performance optimizations.

License

PROPRIETARY - All Rights Reserved

Copyright (c) 2024. All Rights Reserved.

This software and associated documentation files (the "Software") are the proprietary and confidential property of the copyright holder.

Restrictions

• You may NOT copy, modify, distribute, publish, sell, or sublicense the Software
• You may NOT reverse engineer, decompile, or disassemble the Software
• You may NOT use the Software for commercial purposes without explicit written permission
• You may NOT remove or alter any copyright notices

Permitted Use

• Viewing the source code for portfolio/educational purposes
• Reviewing the code structure and architecture for learning purposes

Disclaimer

This Software is provided "AS IS", without warranty of any kind, express or implied, including but not limited to the warranties of merchantability, fitness for a particular purpose and noninfringement. In no event shall the authors or copyright holders be liable for any claim, damages or other liability, whether in an action of contract, tort or otherwise, arising from, out of or in connection with the Software or the use or other dealings in the Software.
