The PdfFrame crops PDF files with PyMuPDF.
PdfFrame is a desktop tool to crop or frame PDF pages with visual selection, margin trimming, and reusable margin presets.

Quick Start | Feature Highlights | Acknowledgments

🚧 DRAFT:Preliminary Version 📝 - Work in Progress 🏗️ 🚧
⚠️ IMPORTANT NOTICE: Created with useReq/req 🤖✨ ⚠️

Feature Highlights

• Toolbar actions Trim Margins, Save Margins, and Go! use dedicated bundled icons for consistent appearance.
• Save Margins is placed next to Trim Margins, and Go! is placed at the far right of the toolbar.
• Extra operations on the final PDF includes Delete annotations fields (enabled by default).
• Conversion Mode supports Frame (keep original page size) and Crop (shrink page size to the selected area).
• Only one trim/selection area is supported at a time; grid values above one area are reduced to one area.
• Trim settings and Presets are available in the Basic tab, and Save Margins stores reusable presets.

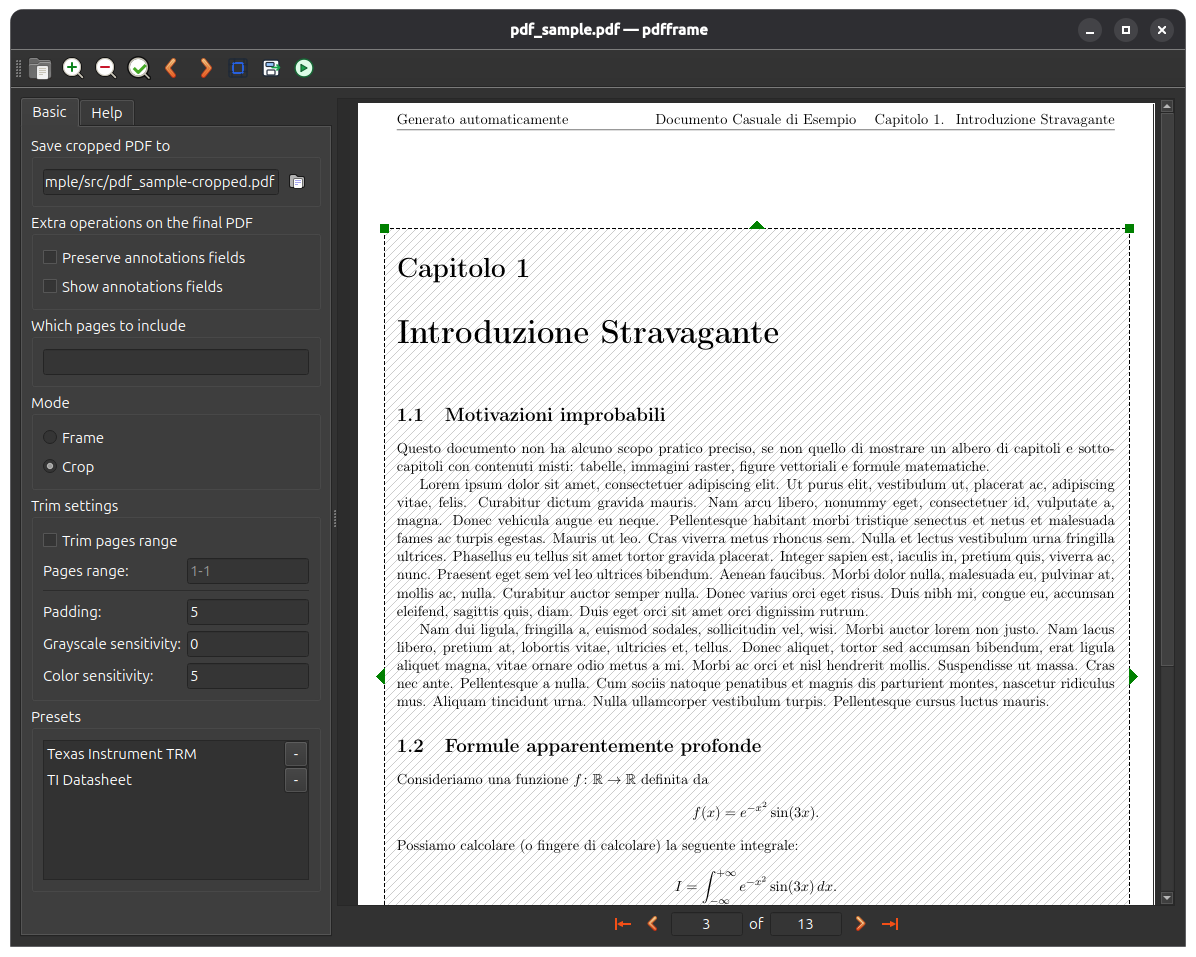

Screenshot

Quick Start

1. Open a PDF file.
2. Use Trim Margins to auto-trim the current page/selected range.
3. Select Mode:
   • Frame: keep the original page size and crop visible content.
   • Crop: resize each output page to the selected area.
4. (Optional) In Extra operations on the final PDF, uncheck Delete annotations fields if you want to keep annotations/widgets.
5. Use Save Margins to store the current crop/frame setup as a preset.
6. Click Go! to generate the output PDF.

CLI usage

pdfframe [file] [options]

Core options

• -o, --output: output PDF path.
• --whichpages: one page range to process (N, N-, -N, N-M).
• --mode {frame,crop}: conversion mode.
• --grid: initial selection grid; only one selection area is kept.
• --initialpage: page opened initially (1-based).
• --go: run conversion immediately without opening the GUI window.

Logging and compatibility options

• --verbose: enable console progress output.
• --debug: enable extra crop debug output (effective with --verbose).
• --use-qt5: force PyQt5 (default is PyQt6 when available).
• --use-pymupdf: use PyMuPDF rendering (default).
• --use-poppler: use Poppler rendering (PyQt5 only).
• --use-pikepdf, --use-pypdf, --use-pypdf2: legacy compatibility flags (no crop backend effect).

Configuration file

PdfFrame stores runtime options and trim presets in ~/.pdfframe/config.json. The file is auto-created on first run and normalized to this shape:

{
  "config": {
    "PDF/DeleteAnnots": true,
    "PDF/Mode": "frame",
    "Trim/Padding": "0",
    "Trim/GrayscaleSensitivity": "0",
    "Trim/Sensitivity": "5",
    "Trim/PagesRangeEnabled": false,
    "Trim/PagesRange": "1-1"
  },
  "presets": []
}

Install with Astral uv

Install

uv tool install pdfframe --force --from git+https://github.com/Ogekuri/PdfFrame.git

Uninstall

uv tool uninstall pdfframe

Live execution with uvx

Run PdfFrame directly from the current repository checkout without prior installation:

uvx --from git+https://github.com/Ogekuri/PdfFrame.git pdfframe

You can pass CLI options as usual, for example:

uvx --from git+https://github.com/Ogekuri/PdfFrame.git pdfframe input.pdf -o output.pdf --go

Acknowledgments

• Thanks to Prof. Armin Straub for developing Krop.
