fix(ui): wire the /surfaces public_safe/auth/rate_limited filter shortcuts (#3975)

[rust-toml]

Summary

Closes #3975

The nav mega-menu links to /surfaces?public_safe=1, ?auth=required, and ?rate_limited=1, but surfaces.tsx validated against the shared tableSearchSchema (no such params) and its predicate never read them — so all three shortcuts silently rendered the unfiltered list.

This adds a surfaces-local surfacesSearchSchema (extends the shared schema, so the sibling /subnets schema stays lean) and moves the row predicate into a pure, unit-tested matchesSurfaceFilters: public_safe→s.public_safe, auth→s.auth_required (required/none), rate_limited→ the per-row rate_limit_notes. Reset + active-filter indicator now cover them too.

Gates

typecheck ✓ · unit tests ✓ (8 new: every filter branch) · prettier ✓ · build ✓ · responsive-overflow e2e ✓

Screenshots

Shown on ?auth=required (the demonstrable case: 188 → 2 rows). All 3 filters are covered by the 8 unit tests.

Viewport · Theme	Before	After

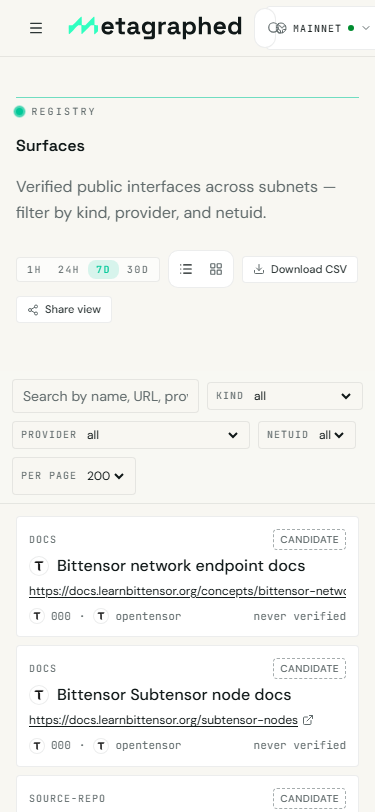

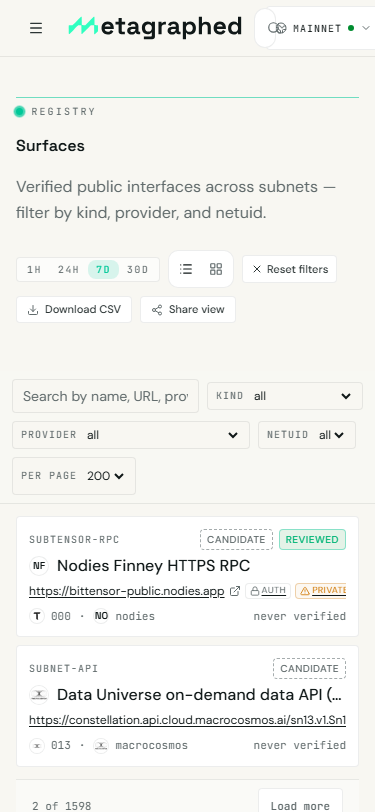

Mobile · Light	filter ignored — full list	2 auth-gated surfaces

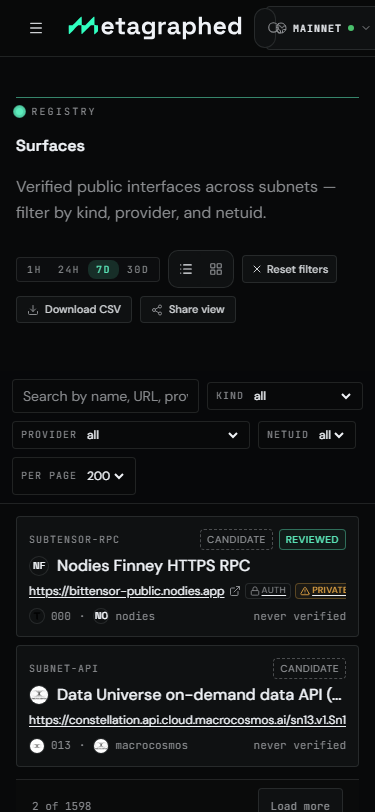

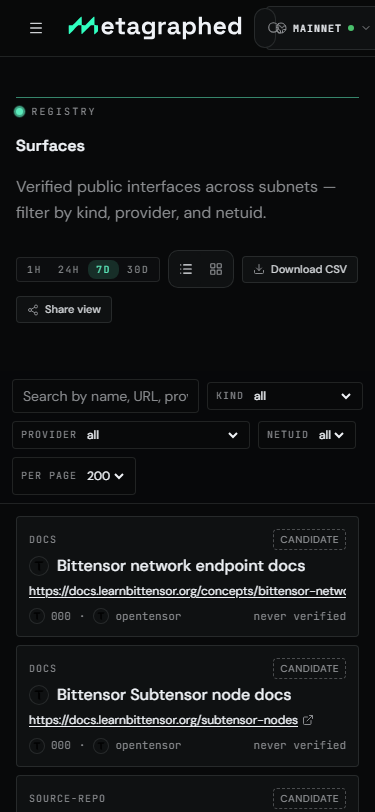

Mobile · Dark	filter ignored — full list	2 auth-gated surfaces

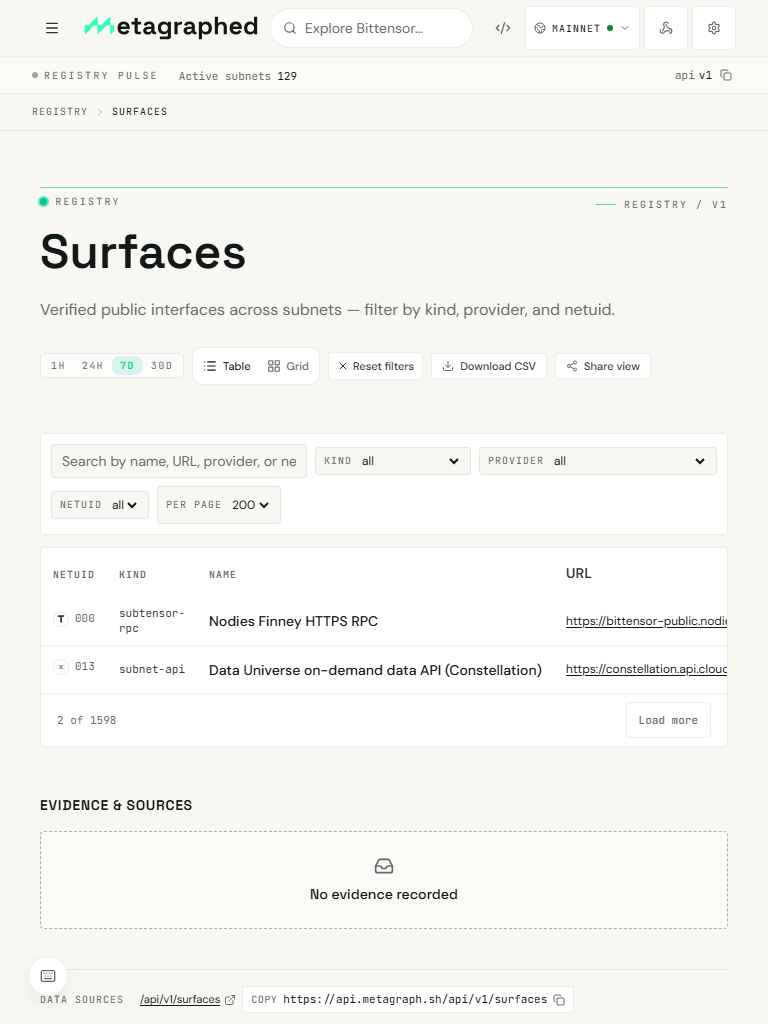

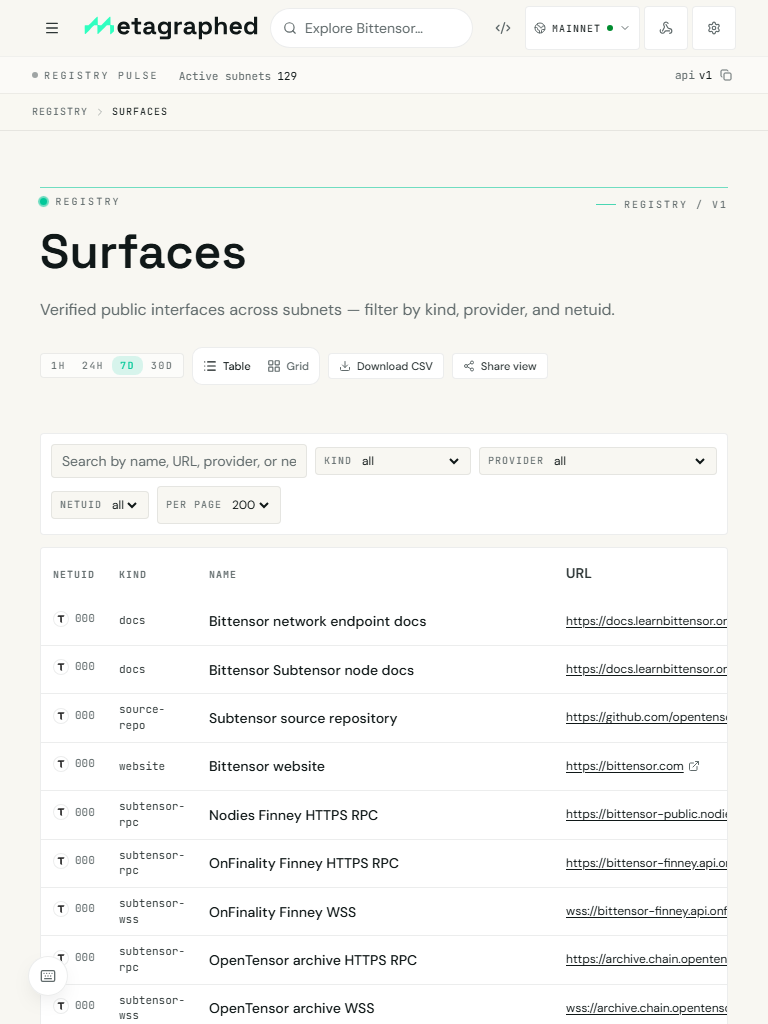

Tablet · Light	filter ignored — full list	2 auth-gated surfaces

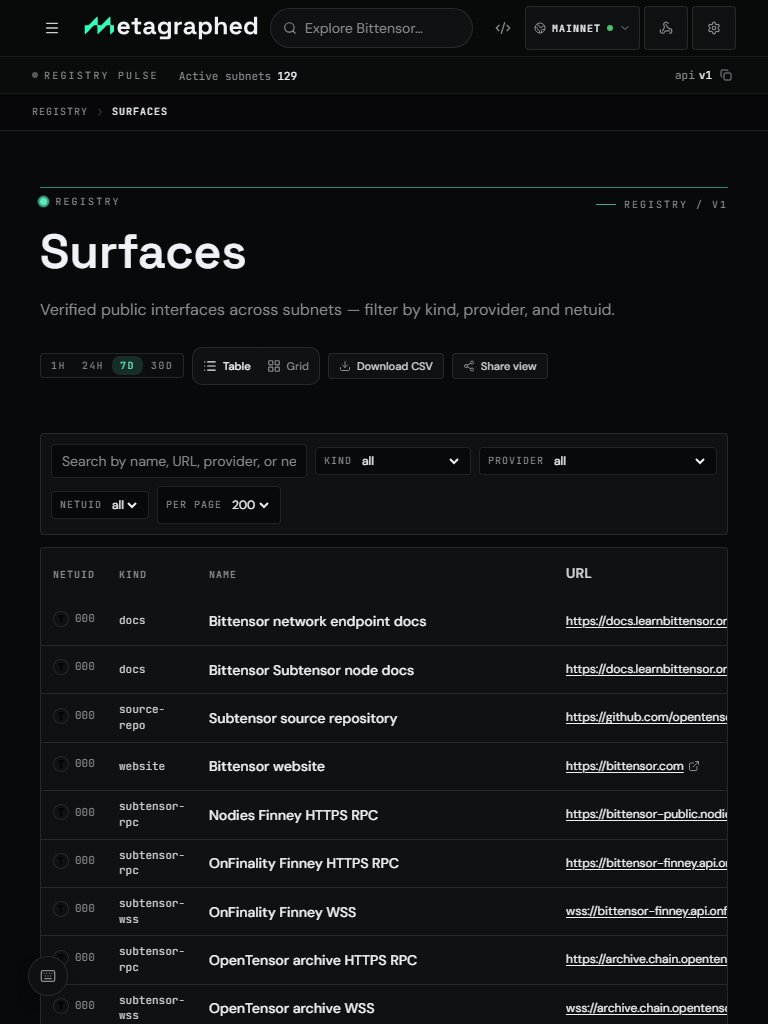

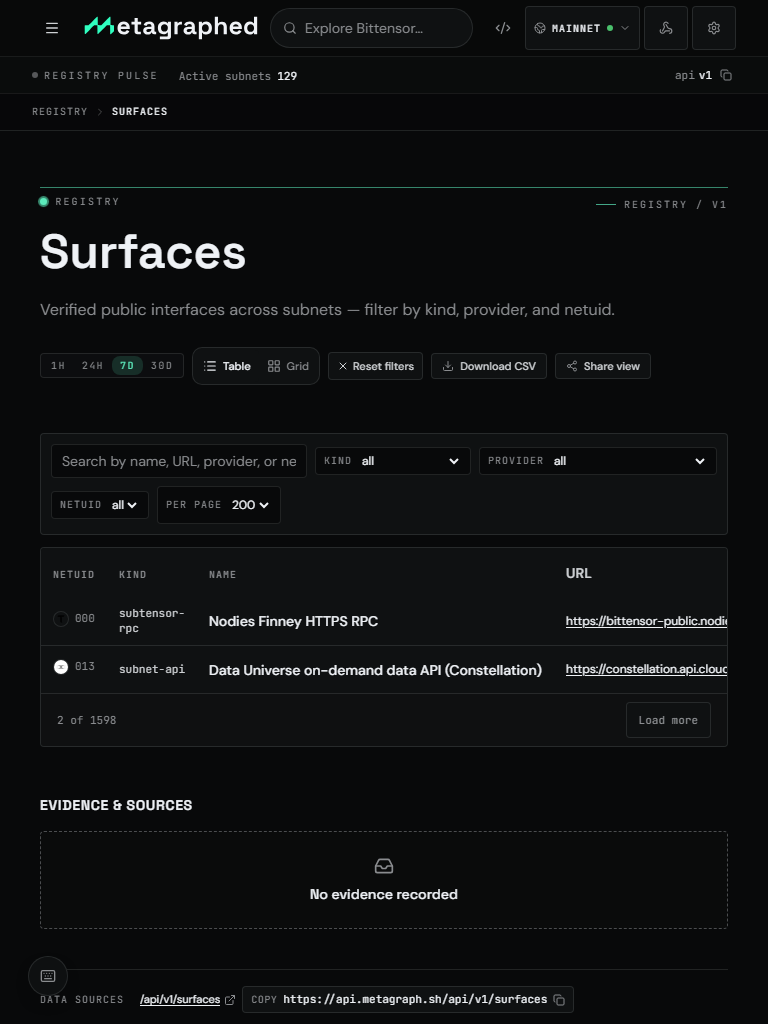

Tablet · Dark	filter ignored — full list	2 auth-gated surfaces

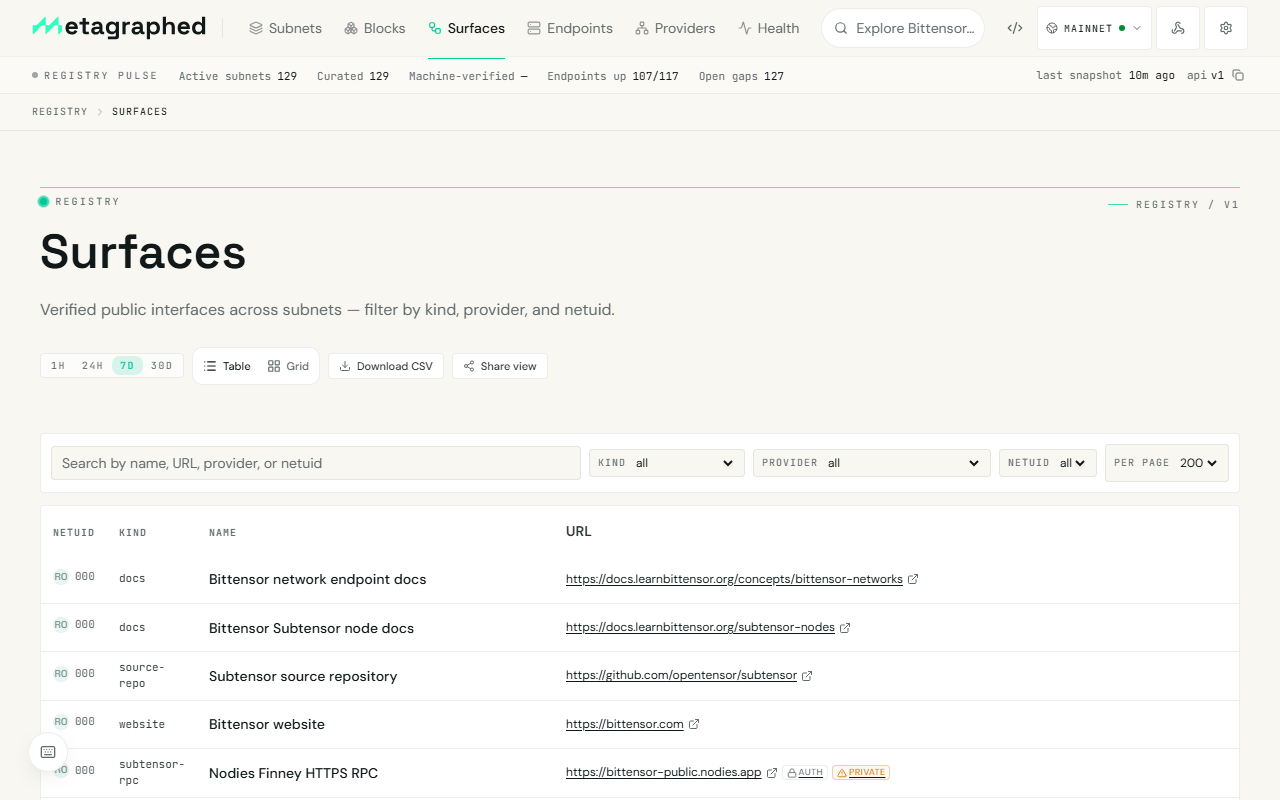

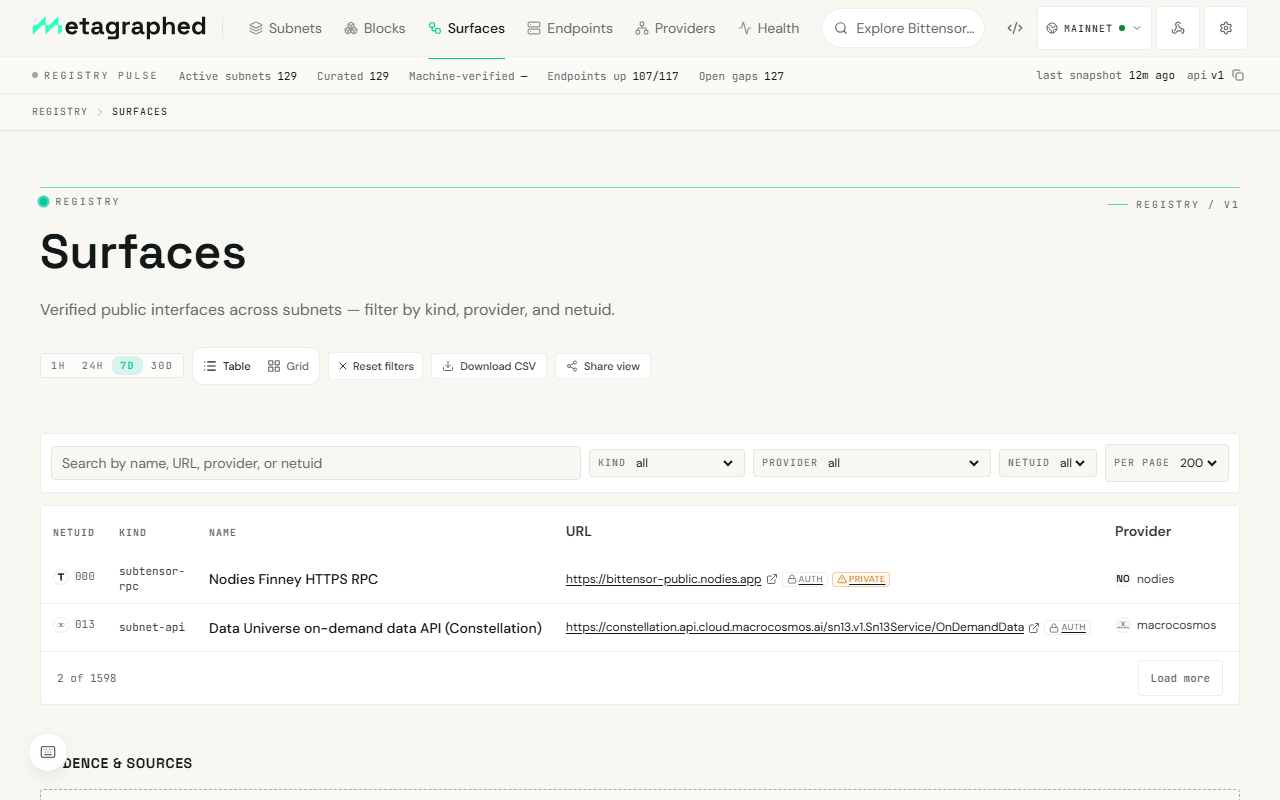

Desktop · Light	filter ignored — full list	2 of 1598

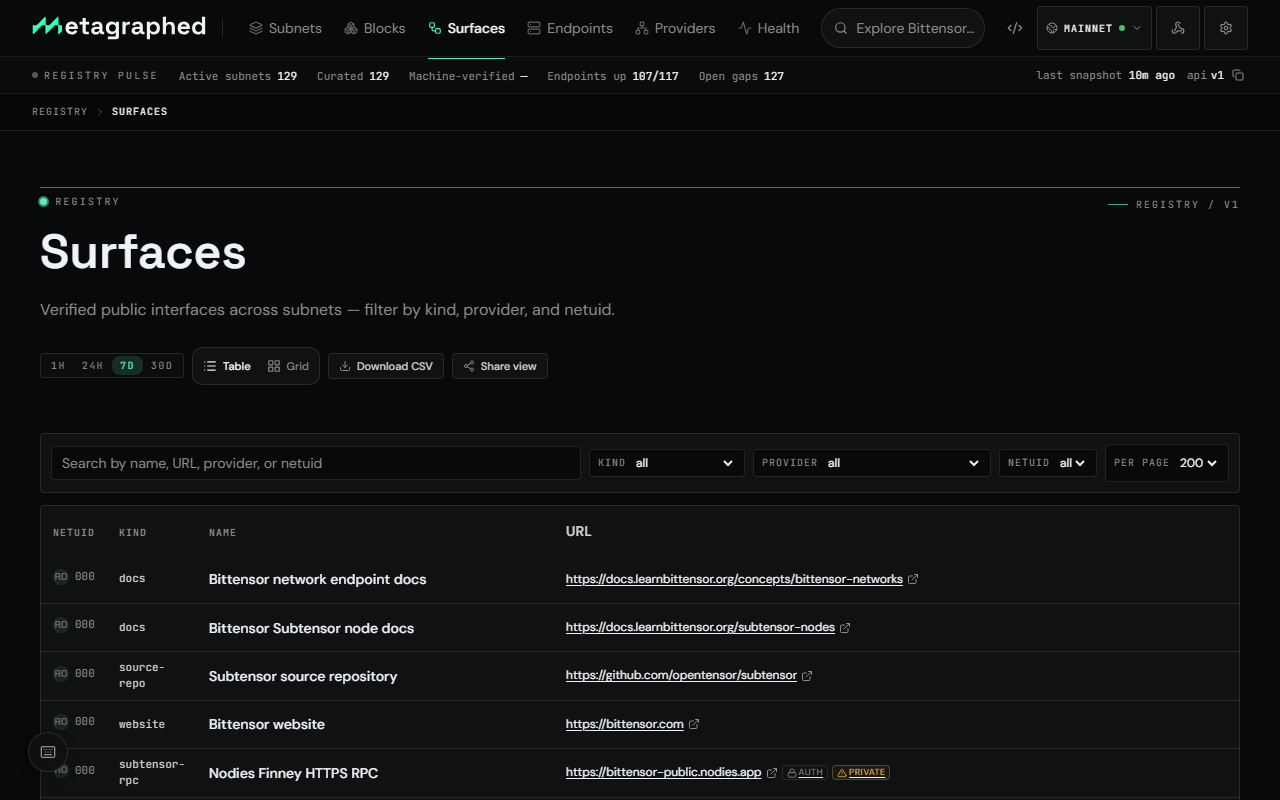

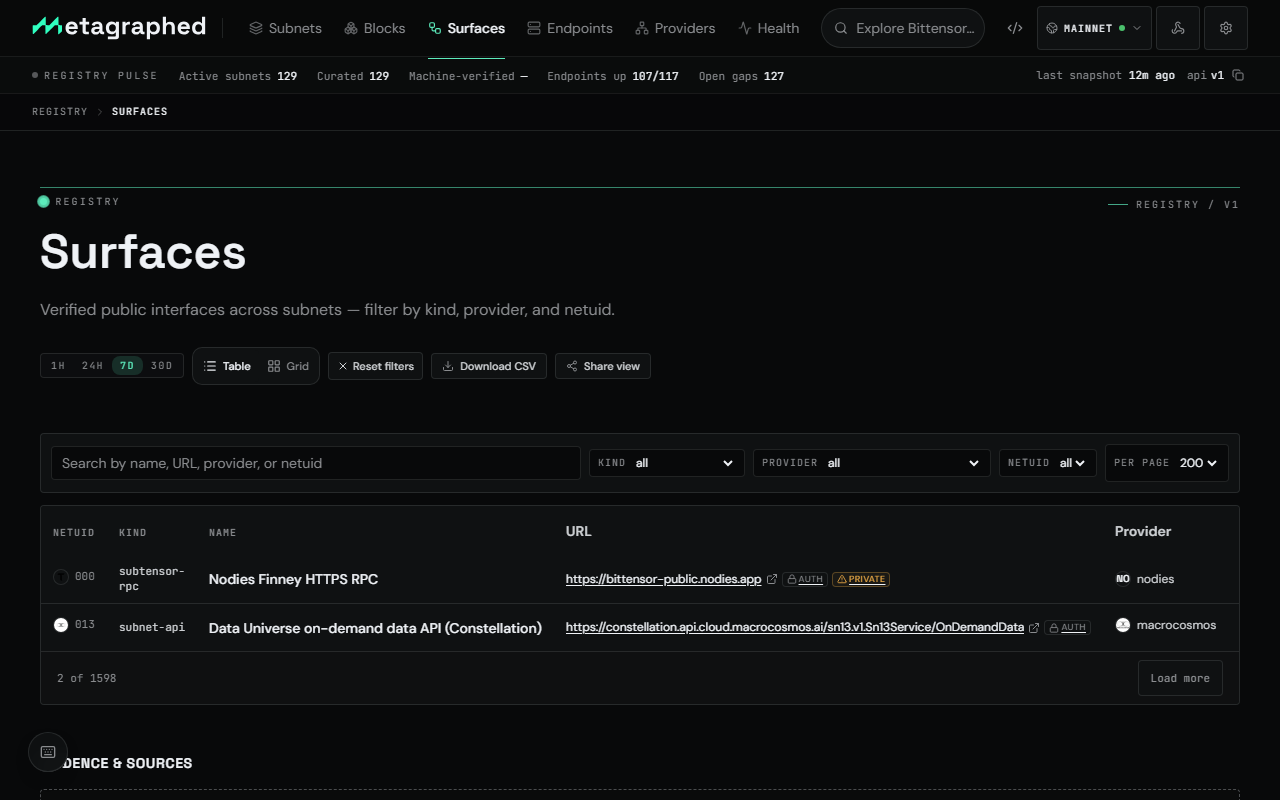

Desktop · Dark	filter ignored — full list	2 of 1598

[superagent-security]

Superagent didn't find any vulnerabilities or security issues in this PR.

[codecov]

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 97.93%. Comparing base (7f90522) to head (9cfcf5f).

Additional details and impacted files

@@           Coverage Diff           @@
##             main    #4950   +/-   ##
=======================================
  Coverage   97.93%   97.93%
=======================================
  Files         163      163
  Lines       19389    19389
  Branches     7364     7364
=======================================
  Hits        18989    18989
  Misses         53       53
  Partials      347      347

🚀 New features to boost your workflow:

• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[loopover-orb]

Warning

🟨🟨🟨🟨🟨🟨🟨🟨🟨🟨🟨🟨

⏸️ Gittensory review result - manual review recommended

_{Review updated: 2026-07-13 00:34:02 UTC}

4 files · 1 AI reviewer · no blockers · readiness 100/100 · CI green · clean

⏸️ Suggested Action - Manual Review

• Touches a guarded path — held for manual review: This PR changes guardrail-protected path(s): apps/ui/src/lib/metagraphed/surface-filters.test.ts (matched apps/ui/**), apps/ui/src/lib/metagraphed/surface-filters.ts (matched apps/ui/**), apps/ui/src/lib/metagraphed/types.ts (matched apps/ui/**), apps/ui/src/routes/surfaces.tsx (matched apps/ui/**).

Review summary
This PR wires three previously-dead query params (public_safe, auth, rate_limited) into /surfaces filtering by extending the route's search schema and extracting the row predicate into a pure, unit-tested matchesSurfaceFilters function. The logic is correct: public_safe checks s.public_safe truthiness, auth=required/none checks s.auth_required, and rate_limited checks presence of the new rate_limit_notes field, with reset/active-filter indicators updated to match. The change is scoped, tested (8 new unit tests covering every branch), and keeps the sibling /subnets schema untouched as claimed.

Nits — 6 non-blocking

• types.ts adds rate_limit_notes as a new optional Surface field without evidence it's actually returned by the API — confirm the backend/schema source populates this field, otherwise the rate_limited filter will always evaluate false.
• surfacesSearchSchema uses free-form z.string() for public_safe/auth/rate_limited rather than a stricter enum/literal union, so e.g. auth=bogus silently falls through to 'no filter applied' instead of being rejected or surfaced as invalid.
• Consider a z.enum(['required','none','']) for `auth` to make invalid query values fail closed/visible rather than silently no-op.
• surface-filters.ts could re-export SurfacesSearch from a shared location if /subnets later needs similar shortcuts, though current single-file placement is appropriate for now.
• apps/ui/src/lib/metagraphed/surface-filters.ts:13 accepts any non-empty public_safe or rate_limited value, so ?public_safe=0 and ?rate_limited=0 still enable those filters; consider narrowing these shortcut params to the documented "1" value.
• Touches a guarded path — held for manual review — A maintainer must review and merge this change.

Signal	Result	Evidence
Code review	✅ No blockers	1 reviewer
Linked issue	✅ Linked	#3975
Related work	✅ No active overlap found	No same-issue or scoped active PR overlap found.
Change scope	✅ 20/20	Low review scope from cached public metadata (1 linked issue).
Validation posture	✅ 25/25	PR body includes validation/test evidence.
Contributor workload	✅ 10/10	Author activity: 17 registered-repo PR(s), 8 merged, 5 issue(s).
Contributor context	✅ Confirmed Gittensor contributor	rust-toml; Gittensor profile; 17 PR(s), 5 issue(s).
Gate result	⚠️ Not blocking	Advisory; not blocking this PR.

Review context

• Author: rust-toml
• Role context: outside_contributor
• Public audience mode: oss maintainer
• Lane context: Repository is configured for direct PR review.
• Public profile languages: not available
• Official Gittensor activity: 17 PR(s), 5 issue(s).
• PR-specific overlap: none found.

Contributor next steps

• Keep the PR focused and include validation evidence before maintainer review.

Signal definitions

• Related work = same linked issue, overlapping active PRs, or title/path similarity.
• Change scope = cached public metadata such as size labels, draft state, and review-burden hints.
• Validation posture = whether the PR provides enough public validation/test evidence for maintainer review.
• Contributor workload = public contributor activity and cleanup pressure, not a repo-wide quality failure.
• Contributor context = public GitHub/Gittensor identity context; non-Gittensor status is not a blocker.

[BETA] Chat with Gittensory

Ask Gittensory a question about this PR directly in a comment — grounded only in the same cached, public-safe facts shown above, never a new claim.

• @gittensory ask <question> answers contribution-quality Q&A with source citations and freshness.
• @gittensory chat <question> answers in natural prose from cached decision-pack facts via local inference (maintainer/collaborator; read-only).
• A plain-language @gittensory mention with a real question is routed to the closest matching read-only command automatically -- no exact syntax required.

Full command reference: https://gittensory.aethereal.dev/docs/gittensory-commands

Visual preview

Route	Viewport	Before (production)	After (this PR's preview)	Diff

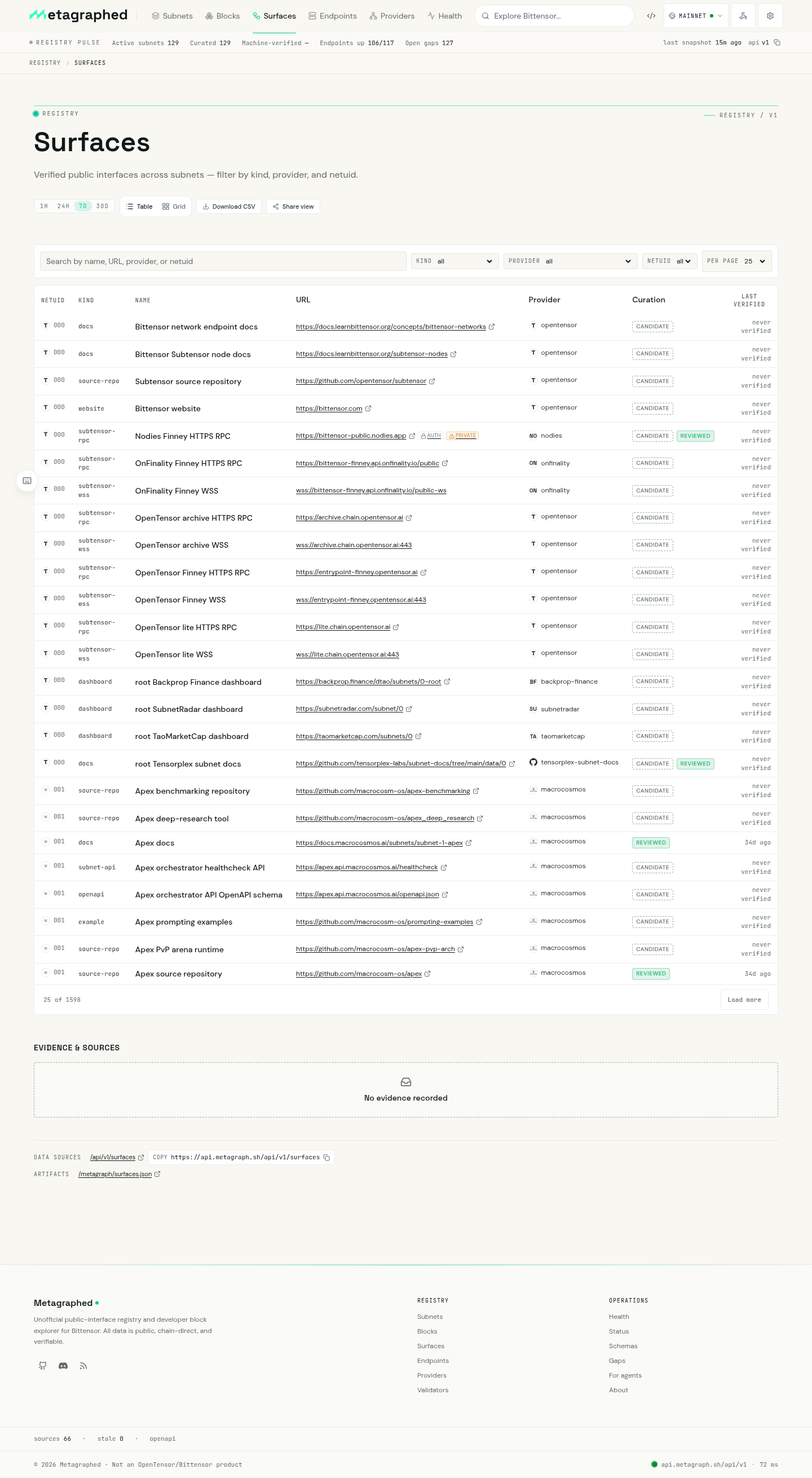

/surfaces	desktop			—

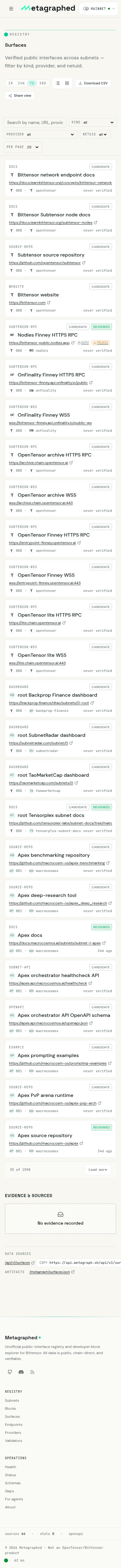

/surfaces	mobile			—
