SDK Infrastructure: Base Classes, Attributes, and Core Concepts

VS Templates

Note

Please make sure to update the nuget packages. The templates are always behind the nuget packages.

https://marketplace.visualstudio.com/items?itemName=BlueByteSystemsInc.SWSDK32

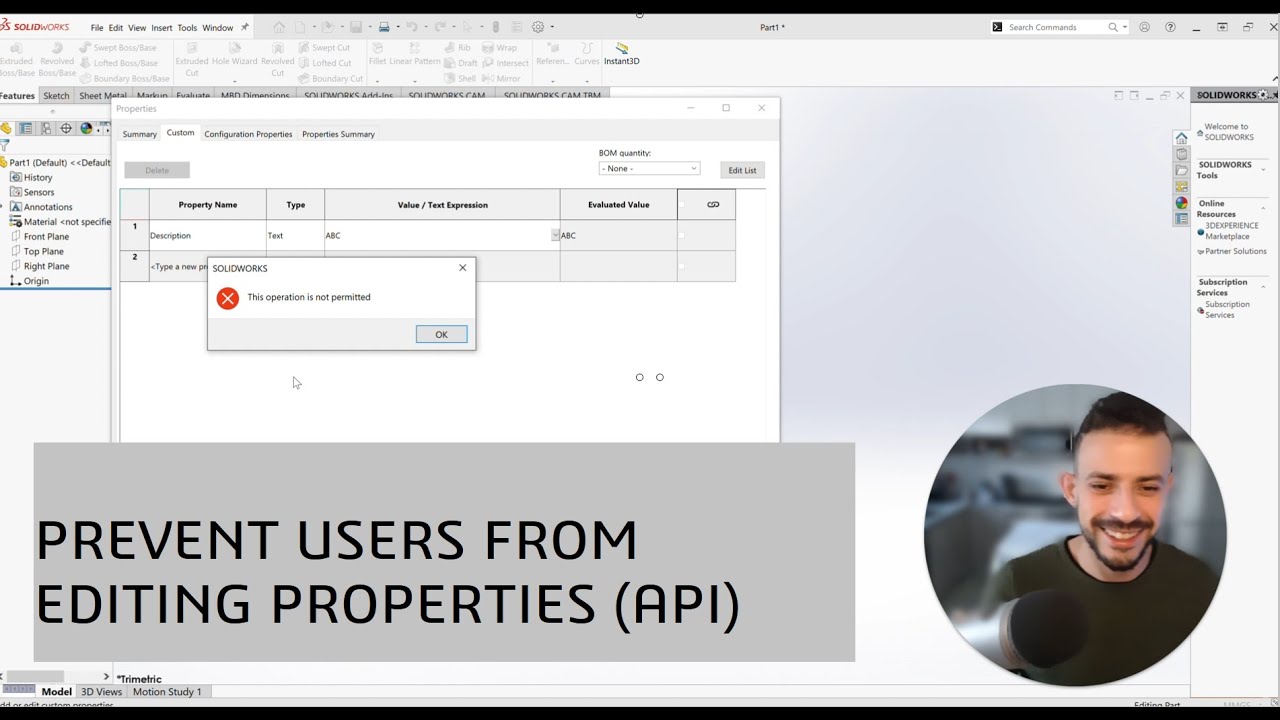

▶️ YouTube AddIn Example

AddInBase (Base Class of Your Addin)

All SOLIDWORKS add-ins using this SDK inherit from AddInBase, which provides:

• Key Properties:

  • Identity: Holds your add-in's Name, Description, and Startup flag (see below).
  • DocumentManager: Lets you track and interact with SOLIDWORKS documents and events.
  • Application: Access to the SOLIDWORKS application object.
  • CustomPropertyManager: Interface for custom properties in a document.
  • Logger, LoggerType, Container: Diagnostic and dependency injection support.
  • Cookie: Internal SOLIDWORKS connection identifier.

• Initialization:
  The AddInBase constructor reads your class attributes (Name, Description, StartUp) and populates Identity.

• Connect/Disconnect Methods:

  • OnConnectToSOLIDWORKS(SldWorks app): Entry point called when SOLIDWORKS loads your add-in. You override this to set up menus, events, and any state.
  • OnDisconnectFromSOLIDWORKS(): Called when your add-in is unloaded. Use this to release resources or unsubscribe from events.

Attributes: Name, Description, Startup, Icon, and MenuItem

• NameAttribute
  Decorates your add-in class to specify the display name.

  [Name("Addin")]

• DescriptionAttribute
  Provides a user-friendly description visible in SOLIDWORKS Add-ins manager.

  [Description("This is the description")]

• StartUpAttribute
  Controls whether your add-in loads by default upon SOLIDWORKS startup.

  [StartUp(true)]

• IconAttribute
  Associates a custom icon (16x16) for your add-in, shown in UI.

  [Icon("icon.ico")]

• MenuItemAttribute
  Used to declaratively add menus and menu items to SOLIDWORKS, specifying document type, item label, click handler, and icon.

  [MenuItem("SDK", swDocumentTypes_e.swDocNONE, true)]
  [MenuItem("Click Me...@SDK", swDocumentTypes_e.swDocNONE, false, nameof(OnMenuClick), "ToolbarSmall.bmp")]

  • Parameters:
    • Text/Name: The menu or item label.
    • Document type: Parts, Assemblies, Drawings, or "none" for global.
    • IsMenu: True for parent menu, false for menu item.
    • Handler method name: For menu item click actions.
    • Icon file (optional): To show alongside item.

Menu Concepts

• Menus in AddInBase:
  Use [MenuItem] attributes to build hierarchical menus.
  Handler methods, like OnMenuClick, implement response logic.

The Identity, Name, and Description System

• Identity struct
  Built from your class attributes, ensures every add-in has a unique and displayable name and description.
  • Name: Provided via [Name] attribute.
  • Description: Provided via [Description] attribute.

Display Concepts

• Icons and DisplayText
  • IconAttribute and DisplayText (in properties, menu items, or custom UI elements) make your add-in visually user-friendly.

DocumentManager

• Purpose:
  Central access point for all open SOLIDWORKS documents, document events (open/close/save), and document-specific operations.

• Capabilities:

  • Subscribe to document lifecycle events like ActiveDocumentChanged, DocumentGotOpened, DocumentGotClosed.
  • Get info and collections with GetDocuments().
  • Access ActiveDocument for the currently focused file.

  Example usage:

  this.DocumentManager.ActiveDocumentChanged += DocumentManager_ActiveDocumentChanged;
  var docs = DocumentManager.GetDocuments();

  Acts as the “hub” for files and events in your add-in.

Connect/Disconnect Methods

• OnConnectToSOLIDWORKS(SldWorks app)

  • Called when SOLIDWORKS loads your add-in.
  • Setup document/event hooks, build menus, initialize your environment.

• OnDisconnectFromSOLIDWORKS()

  • Called before unloading.
  • Free resources, unsubscribe listeners, cleanup.

Other Concepts: Property Display, DI Container, Logger

• DisplayText:

  • Used in properties and menu items for UI presentation.

• Container (SimpleInjector):

  • Integrates dependency injection for advanced scenarios.

• Logger and LoggerType:

  • For logging diagnostics and errors.

---

Complete Explanation of TestAddIn Example

What is TestAddIn?

TestAddIn is a sample SOLIDWORKS add-in included in the SDK repository, showcasing best practices for building add-ins with Blue Byte Systems’ SDK. It serves as both a template and a functional example.

Key Features Demonstrated:

• How to declare add-in metadata (name, description, startup, icon)
• How to add custom menus and menu items using attributes
• How to interact with SOLIDWORKS documents and respond to their events
• How to handle menu clicks and show information to the user
• Connecting/disconnecting lifecycle hooks

Project Structure

• SWSDK.TestAddIn/AddIn.cs: Main add-in class. Decorated with attributes and inherits from AddInBase.
• SWSDK.TestAddIn/SWSDK.TestAddIn.csproj: Project file, references SDK, interops, and dependencies.
• SWSDK.TestAddIn/packages.config: NuGet dependencies for Interops and SimpleInjector.
• icon.ico, ToolbarSmall.bmp: Icon files for menu display.

How TestAddIn Works

• Uses SDK attributes to set its name, icon, description, and menus.
• The [MenuItem] attributes build an SDK menu for each document type (global, part, assembly).
• Upon connection (OnConnectToSOLIDWORKS), subscribes to document events (like activation).
• When the menu item "Click Me..." is clicked, the add-in finds all open documents, builds a list, and sends it to the SOLIDWORKS information bar.

Sample Handler:

public void OnMenuClick()
{
    var docs = DocumentManager.GetDocuments();
    var info = string.Join("\n", docs.Select(x => x.FileName));
    Application.SendInformationMessage(info);
}

Using TestAddIn as Your Starting Point

1. Clone the repository

   git clone https://github.com/BlueByteSystemsInc/BlueByte.SOLIDWORKS.SDK.git

2. Open in Visual Studio and build SWSDK.TestAddIn.

   • Restore NuGet packages if needed.
   • Build for Debug or Release.

3. Register the DLL with SOLIDWORKS

   • Release build registers it for COM automatically (RegisterForComInterop).

   • Or, use regasm to register manually:

     regasm /codebase SWSDK.TestAddIn.dll

4. Launch SOLIDWORKS and enable the add-in

   • Find "Addin" in Tools > Add-ins, enable it.

5. Try the custom menu

   • Open or create parts/assemblies.
   • Use the SDK menu and "Click Me..." item to see document info.

Customizing for Your Own Add-In

• Copy TestAddIn project as your template.
• Change [Name], [Description], [Icon] attributes.
• Adjust menu structure using [MenuItem] attributes.
• Implement your own menu handlers and event logic, using DocumentManager and Application features.
• Expand functionality by leveraging SDK base classes and core features.

Why Use TestAddIn?

TestAddIn illustrates all the foundational SDK features.

• Minimal boilerplate—focus on functionality, not setup.
• Demonstrates robust SOLIDWORKS event handling.
• Shows simple menu/UI extension.

Best Practice:
Start with TestAddIn, build and register, then iteratively add your add-in features, event handlers, and custom menu commands.

---

TestAddIn is your gateway example for SOLIDWORKS add-ins with Blue Byte Systems SDK.
