CSS Layout management with barc

Presets

There are several layouts available as preset parameters, loosely modeled after the presets defined in https://tokbox.com/developer/beta/archive-custom-layout/

A notable addition is the preset auto, which will selectively use different presets from the above. At each frame, a layout is chosen by the following rubric:

  • If a stream is assigned the focus class, either explicitly or automatically from a classless screenshare (see Quirks, below), stylesheet preset pip is used, only if 0 or 1 non-focus streams accompany the focus stream.
  • If a focus class stream is present along with more than one other stream, preset horizontalPresentation is used.
  • If there are no focus streams on the frame, bestfit is used.

CSS Attributes

border

The solid border type is supported. See quirks below.

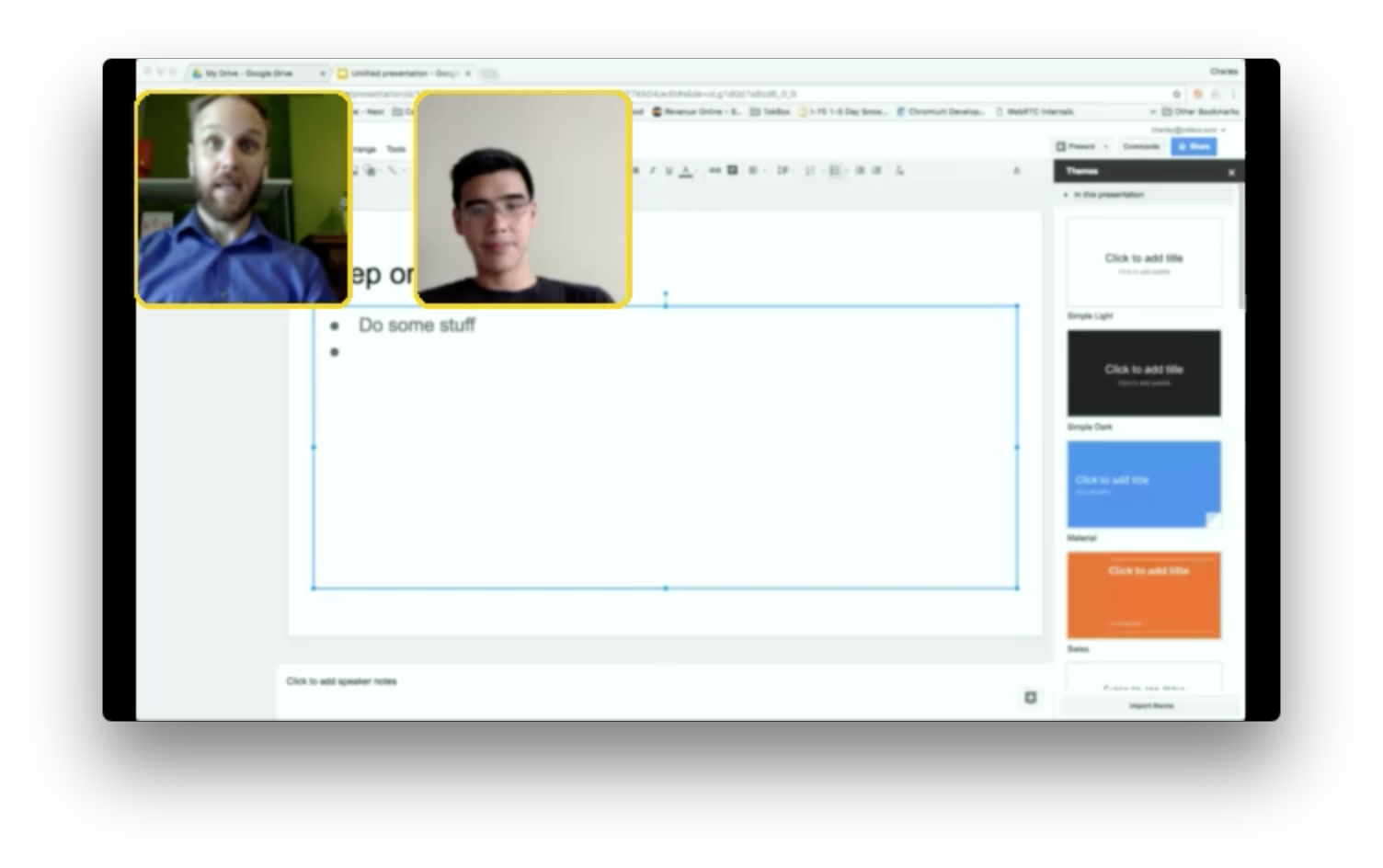

borders
border-radius: 10px; border: 6px solid #FFCC00;

border-radius

Use border-radius to round the edges of a stream. Setting this value equal to the height and width of the stream will produce a circle.

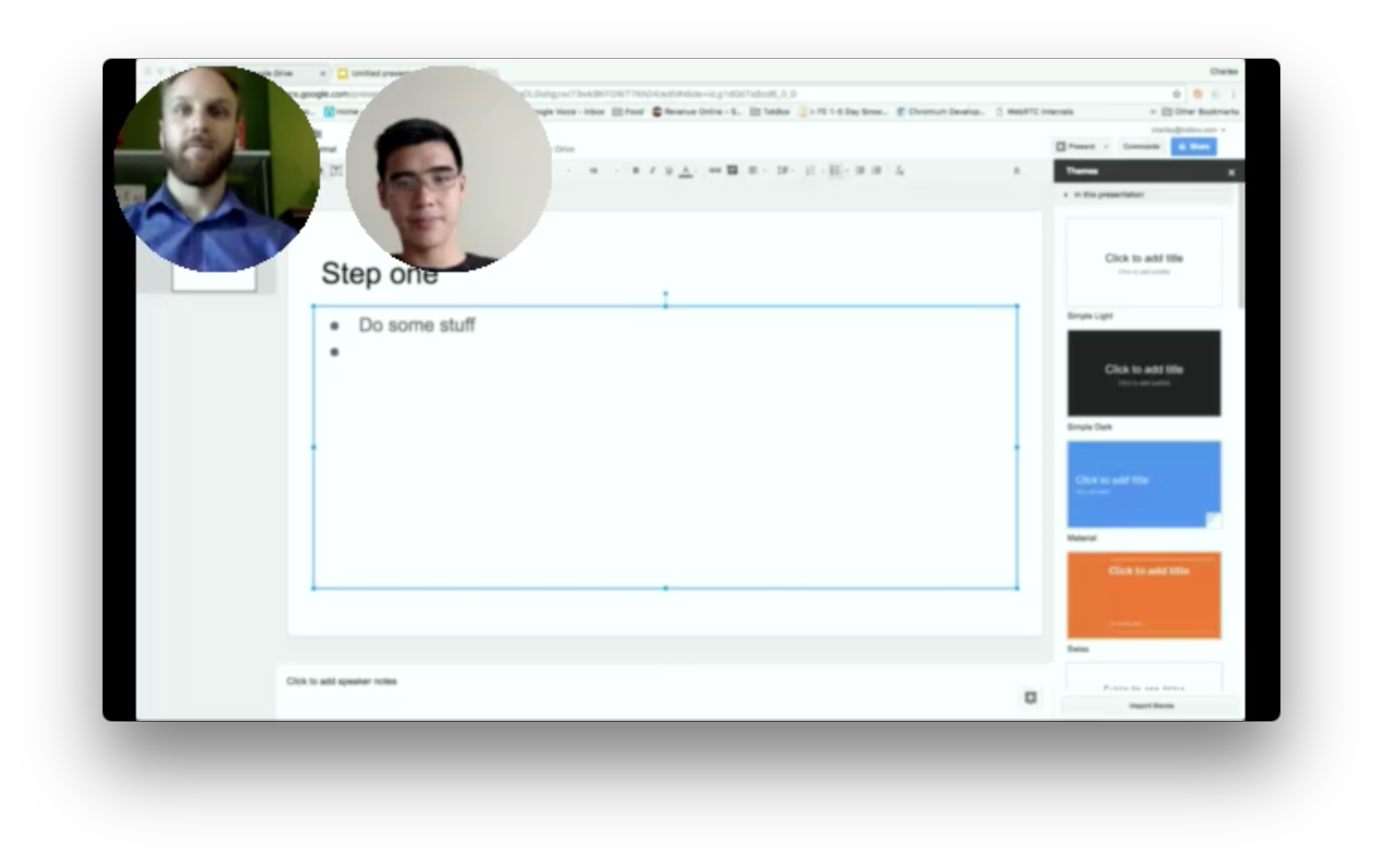

border-radius
border-radius: 120px; width: 120px; height: 120px;

object-fit

Use object-fit to define scaling behavior. The most common values are contain, which will show all pixels from the source stream at the expense of not always displaying the same dimensions as the element it is contained in, and cover, which guarantees element size by cropping the source image to fit. fill is also implemented, and will distort aspect ratio if the source video does not match the size of the element.

Quirks

There are a few behaviors to watch out for while using barc layout management.

Height as percentage

When specifiying height as a percentage, the height of the output container is used for the calculation, rather than the width. For example:

stream.unfocus {
  width: 20%;
  height: 20%;
  object-fit: cover;
}

In proper CSS, stream elements matching the unfocus class would render as squares, equal in height and width to 20% of the parent container's width (the output rendering size). In barc, this spec will produce elements that match the aspect ratio of the container view. Using the same example, a 1280x720 pixel container will have 256x144 pixel stream elements with the unfocus class.

Automatic focus assignment

If a stream is tagged as a screenshare in the manifest via videoType: screen, and no layout class has been assigned to it, barc will automatically tag the element with the focus class.

Borders

Even if border: none is specified, a non-zero (inherited) border thickness will produce padding and can move the stream element. Use border: 0px to clear border inheritence.

Only the solid border style is supported.

In order to properly handle image masking, border thickness is computed by shrinking the element and applying a backdrop, not a traditional stroke. As a result, the pixel thickness might not look the same as it would in a browser.
