🔐 PDB2JSON Scripting Examples

The world's largest hash database for memory integrity validation 🌍

Quick Start · Architecture · Workflows · Examples · Contributing

🎯 What is PDB2JSON?

PDB2JSON is an Azure Functions-based application that provides memory integrity validation through Just-In-Time (JIT) hashing. This repository contains scripts and tools that interface with the cloud-hosted Code+PDB analysis server.

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#667eea','primaryTextColor':'#fff','primaryBorderColor':'#764ba2','lineColor':'#4ecdc4','secondaryColor':'#45b7d1'}}}%%
graph LR
    A[💻 Your System<br/>Memory Scanner] -->|SHA256 Hashes| B[🌐 HTTPS/JSON<br/>Encrypted]
    B -->|Query| C[☁️ Azure Functions<br/>pdb2json.azurewebsites.net]
    C -->|JIT Calculation| D[(🗄️ 5TB Database<br/>Microsoft Software)]
    D -->|Results| C
    C -->|Validation| B
    B -->|✅ Valid/❌ Invalid| A

    style A fill:#667eea,stroke:#764ba2,color:#fff
    style B fill:#4ecdc4,stroke:#2c7873,color:#fff
    style C fill:#fa709a,stroke:#fee140,color:#fff
    style D fill:#30cfd0,stroke:#330867,color:#fff

✨ Key Features

Feature	Description
🔒 Privacy-First	Only SHA256 hash values transmitted - no binary data uploaded
⚡ JIT Hashing	Dynamic hash calculation for any virtual address
🌍 Massive Scale	5TB+ of Microsoft software pre-indexed
🆓 Free & Unlimited	No cost, no rate limits, fully accessible
🔐 Secure	TLS encryption, certificate validation
🚀 High Performance	Parallel processing up to 512 threads

🚀 Quick Start

30-Second Setup

# Clone the repository
git clone https://github.com/K2/Scripting.git
cd Scripting

# For PowerShell users
Install-Module ShowUI -Scope CurrentUser

# For Python users (Volatility plugin)
pip install -r requirements.txt

# For Bash users
# Ensure llvm-readobj and curl are installed

First Scan (PowerShell)

# Basic remote memory scan
.\Test-AllVirtualMemory.ps1 `
    -TargetHost "192.168.1.100" `
    -aUserName "Administrator" `
    -aPassWord "YourPassword" `
    -GUIOutput

First Analysis (Python/Volatility)

# Analyze a memory dump
python vol.py --plugins=. -f memory.vmem \
    --profile=Win10x64_14393 invterojithash

First Symbol Lookup (Bash)

# Extract structure definition
./dt.sh -i ntoskrnl.exe -t _EPROCESS

👉 For detailed setup instructions, see QUICKSTART.md

📚 Documentation

We've created comprehensive documentation to help you get started:

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#f093fb','primaryTextColor':'#fff','primaryBorderColor':'#f5576c','lineColor':'#4facfe','secondaryColor':'#30cfd0'}}}%%
mindmap
  root((📚 Documentation))
    🚀 Quick Start Guide
      Installation
      First Scan
      Common Tasks
      Troubleshooting
    🏗️ Architecture
      System Design
      Component Details
      Data Flow
      Security Model
    🔄 Workflows
      Live Analysis
      Forensic Investigation
      Incident Response
      Threat Hunting
    💡 Examples
      PowerShell Scripts
      Python Plugins
      Bash Tools
      Integration Patterns
    🤝 Contributing
      Code Style
      Pull Requests
      Reporting Issues
      Security

Document	Description
📖 QUICKSTART.md	Get started in 5 minutes with step-by-step examples
🏗️ ARCHITECTURE.md	Deep dive into system architecture and design
🔄 WORKFLOWS.md	Common workflows and process guides
💡 examples/	Ready-to-use example scripts and templates
🤝 CONTRIBUTING.md	Guidelines for contributing to the project

🛠️ Tools & Scripts

PowerShell Scripts

🔷 Test-AllVirtualMemory.ps1

Remote memory integrity scanning and validation

Remotely scans all virtual memory in a target system and validates it against the hash database.

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#4facfe','primaryTextColor':'#fff','primaryBorderColor':'#00f2fe','lineColor':'#f093fb','secondaryColor':'#30cfd0'}}}%%
graph TD
    A[Connect to Target] --> B[Enumerate Processes]
    B --> C[Read Memory Pages]
    C --> D[Calculate SHA256]
    D --> E[Send to Server]
    E --> F{Validation<br/>Result}
    F -->|Valid| G[✅ Mark Green]
    F -->|Invalid| H[❌ Mark Red]
    G --> I[TreeMap Visualization]
    H --> I

    style A fill:#4facfe,stroke:#00f2fe,color:#fff
    style D fill:#f093fb,stroke:#f5576c,color:#fff
    style E fill:#fa709a,stroke:#fee140,color:#fff
    style G fill:#96ceb4,stroke:#618833,color:#fff
    style H fill:#ff6b6b,stroke:#c92a2a,color:#fff
    style I fill:#667eea,stroke:#764ba2,color:#fff

Key Features:

🌐 Remote scanning via PSRemoting
🔄 Parallel processing (up to 512 threads)
🎨 Interactive TreeMap visualization with heat mapping
🔐 Optional SYSTEM-level privilege escalation
💾 Binary diff viewer for modified pages

Example Usage:

# Comprehensive scan with GUI
.\Test-AllVirtualMemory.ps1 `
    -TargetHost "Server2016" `
    -aUserName "admin" `
    -aPassWord "password" `
    -MaxThreads 256 `
    -ElevatePastAdmin `
    -GUIOutput

# Filter specific processes
.\Test-AllVirtualMemory.ps1 `
    -TargetHost "192.168.1.100" `
    -aUserName "admin" `
    -aPassWord "pass" `
    -ProcNameGlob @("chrome.exe", "iexplore.exe") `
    -GUIOutput

🔷 Invoke-Parallel.ps1

High-performance parallel processing framework

Enables concurrent execution of script blocks across multiple runspaces for maximum performance.

Features:

⚡ Up to 512 concurrent threads
🔄 Automatic runspace management
📊 Progress tracking and logging
⏱️ Timeout and retry handling
💾 Memory-efficient batching

🔷 Out-SquarifiedTreeMap.ps1

Advanced data visualization with TreeMap algorithm

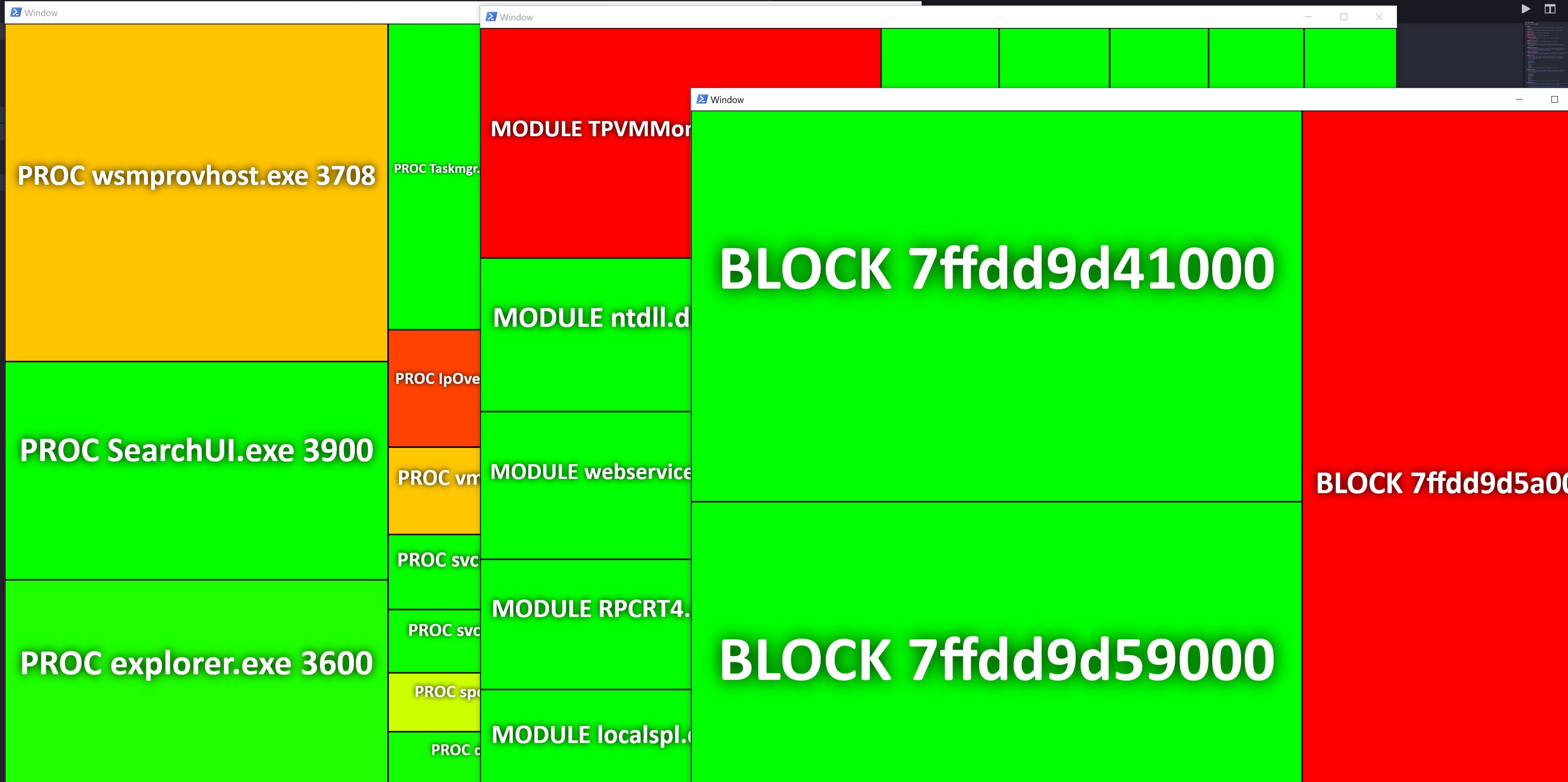

Creates interactive squarified TreeMap visualizations with heat mapping for memory validation results.

Features:

🎨 Squarified layout algorithm
🌈 Heat map color coding
🖱️ Interactive tooltips and drill-down
📊 Size by memory, color by validation percentage
🔍 Binary diff viewer on right-click

Python Tools

🐍 inVteroJitHash.py

Volatility Framework plugin for memory dump analysis

Validates memory dumps against the PDB2JSON hash database using the Volatility Framework.

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#fa709a','primaryTextColor':'#fff','primaryBorderColor':'#fee140','lineColor':'#4facfe','secondaryColor':'#30cfd0'}}}%%
sequenceDiagram
    participant V as 🔬 Volatility
    participant P as 🐍 Plugin
    participant M as 💾 Memory Dump
    participant S as ☁️ Server

    V->>P: Load inVteroJitHash
    P->>M: Parse Memory Image
    M-->>P: Process List + Modules
    P->>P: Check NX Bits (Skip non-executable)
    loop For Each Executable Page
        P->>P: Calculate SHA256
        P->>S: Send Hash Batch
        S-->>P: Validation Results
        P->>P: Update Statistics
    end
    P->>V: Generate Report
    V->>V: Display Color-Coded Results

Key Features:

🔍 NX-bit aware validation (only executable pages)
🎨 ANSI color-coded terminal output
📊 Real-time progress bars (tqdm)
🔄 Retry logic with exponential backoff
💾 Optional failed block dumping
📝 Comprehensive logging

Example Usage:

# Basic scan
python vol.py --plugins=. -f memory.vmem \
    --profile=Win10x64_14393 invterojithash

# Advanced scan with extra details
python vol.py --plugins=. -f suspicious.raw \
    --profile=Win7SP1x64 invterojithash \
    -x -s -D /output/failed -F failures.txt

Command-Line Options:

-x, --ExtraTotals: Display per-module statistics
-s, --SuperVerbose: Show per-page validation details
-D, --DumpFolder: Directory to dump failed blocks
-F, --FailFile: Output file for failure details

Bash Scripts

🐚 dt.sh

Symbol extraction and PDB query tool

Extract JSON symbol information from Windows binaries without downloading PDB files.

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#30cfd0','primaryTextColor':'#fff','primaryBorderColor':'#330867','lineColor':'#4facfe','secondaryColor':'#f093fb'}}}%%
flowchart LR
    A[📁 PE Binary] --> B[llvm-readobj]
    B --> C[Extract Debug Info]
    C --> D{Query Type}
    D -->|typedef| E[Structure Definition]
    D -->|SymFromName| F[Symbol Lookup]
    D -->|SymFromAddr| G[Address Resolution]
    D -->|Relocs| H[Relocation Data]
    E --> I[📡 cURL HTTPS]
    F --> I
    G --> I
    H --> I
    I --> J[☁️ Azure API]
    J --> K[📋 JSON Response]

    style A fill:#4facfe,stroke:#00f2fe,color:#fff
    style D fill:#f093fb,stroke:#f5576c,color:#fff
    style I fill:#fa709a,stroke:#fee140,color:#fff
    style J fill:#667eea,stroke:#764ba2,color:#fff
    style K fill:#96ceb4,stroke:#618833,color:#fff

Example Usage:

# Get structure definition
./dt.sh -i ntoskrnl.exe -t _EPROCESS

# Find symbols by name pattern
./dt.sh -i kernel32.dll -X "CreateFile*"

# Resolve symbol at address
./dt.sh -i ntdll.dll -A 0x1400

# Extract relocations
./dt.sh -i app.exe -r -o relocations.bin

Command-Line Options:

-i FILE: Input PE file (required)
-t TYPE: Type definition query (_EPROCESS, etc.)
-X PATTERN: Symbol name with wildcards
-A ADDR: Address to resolve
-r: Get relocation data
-b BASE: Optional base virtual address
-o FILE: Output file

🌐 Server API Endpoints

The PDB2JSON server provides several REST API endpoints:

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#667eea','primaryTextColor':'#fff','primaryBorderColor':'#764ba2','lineColor':'#4ecdc4','secondaryColor':'#45b7d1'}}}%%
graph TB
    subgraph "🔌 API Endpoints"
        A[📋 /api/typedef/x<br/>Type Definitions]
        B[🔍 /api/SymFromName/x<br/>Symbol by Name]
        C[📍 /api/SymFromAddr/x<br/>Symbol by Address]
        D[🔄 /api/Relocs/x<br/>Relocation Data]
        E[#️⃣ /api/PageHash/x<br/>Hash Validation]
    end

    F[☁️ pdb2json.azurewebsites.net]

    A --> F
    B --> F
    C --> F
    D --> F
    E --> F

    style A fill:#4facfe,stroke:#00f2fe,color:#fff
    style B fill:#f093fb,stroke:#f5576c,color:#fff
    style C fill:#fa709a,stroke:#fee140,color:#fff
    style D fill:#30cfd0,stroke:#330867,color:#fff
    style E fill:#96ceb4,stroke:#618833,color:#fff
    style F fill:#667eea,stroke:#764ba2,color:#fff

📋 typedef - Type Definitions

Get JSON-formatted structure definitions for automatic profile generation.

Endpoint: https://pdb2json.azurewebsites.net/api/typedef/x

Use Cases:

Volatility/Rekall profile generation
inVtero.net automation
Structure reverse engineering

🔍 SymFromName - Symbol Lookup

Returns symbol information based on name (e.g., _EPROCESS).

Endpoint: https://pdb2json.azurewebsites.net/api/SymFromName/x

📍 SymFromAddr - Address Resolution

Returns the symbol located at the specified virtual address.

Endpoint: https://pdb2json.azurewebsites.net/api/SymFromAddr/x

🔄 Relocs - Relocation Information

Returns relocation data needed to reconstruct binaries from memory.

Endpoint: https://pdb2json.azurewebsites.net/api/Relocs/x

Use Case: Recover the exact binary that the OS loaded into memory by combining dumped code with relocation data.

#️⃣ PageHash - Hash Validation

JIT hash validation for memory pages.

Endpoint: https://pdb2json.azurewebsites.net/api/PageHash/x

Request Format:

{
    "HdrHash": "QUTB1TPisyVGMq0do/CGeQb5EKwYHt/vvrMHcKNIUR8=",
    "TimeDateStamp": 3474455660,
    "AllocationBase": 140731484733440,
    "BaseAddress": 140731484737536,
    "ImageSize": 1331200,
    "ModuleName": "ole32.dll",
    "HashSet": [
        {"Address": 140731484798976, "Hash": "+REyeLCxvwPgNJphE6ubeQVhdg4REDAkebQccTRLYL8="},
        {"Address": 140731484803072, "Hash": "xQJiKrNHRW739lDgjA+/1VN1P3VSRM5Ag6OHPFG6594="}
    ]
}

Response Format:

[
    {"Address": 140731484733440, "HashCheckEquivalant": true},
    {"Address": 140731484798976, "HashCheckEquivalant": true},
    {"Address": 140731484803072, "HashCheckEquivalant": false}
]

⚡ JIT Hashing Explained

Traditional Pre-Computed Hashing ❌

Must calculate hashes for every possible load address
Requires ~100TB of storage for Windows alone
Inflexible when new addresses are encountered

JIT (Just-In-Time) Hashing ✅

Calculates hashes on-demand based on client's virtual address
Requires only ~5TB for base images + relocation data
Works instantly for any load address

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#4ecdc4','primaryTextColor':'#fff','primaryBorderColor':'#2c7873','lineColor':'#ffd93d','secondaryColor':'#ff6b6b'}}}%%
graph TB
    subgraph "Traditional Approach"
        A1[All Possible<br/>Load Addresses] --> A2[Pre-compute<br/>All Hashes]
        A2 --> A3[Store 100TB+<br/>of Hashes]
        A3 --> A4[❌ Inflexible<br/>❌ Massive Storage]
    end

    subgraph "JIT Approach"
        B1[Base Image<br/>+ Relocations] --> B2[Client Sends<br/>Virtual Address]
        B2 --> B3[Calculate Hash<br/>On-Demand]
        B3 --> B4[✅ Flexible<br/>✅ 5TB Storage]
    end

    style A1 fill:#ff6b6b,stroke:#c92a2a,color:#fff
    style A2 fill:#ff6b6b,stroke:#c92a2a,color:#fff
    style A3 fill:#ff6b6b,stroke:#c92a2a,color:#fff
    style A4 fill:#c92a2a,stroke:#5c0002,color:#fff
    style B1 fill:#4ecdc4,stroke:#2c7873,color:#fff
    style B2 fill:#4ecdc4,stroke:#2c7873,color:#fff
    style B3 fill:#4ecdc4,stroke:#2c7873,color:#fff
    style B4 fill:#96ceb4,stroke:#618833,color:#fff

🔐 Security & Privacy

Privacy by Design

%%{init: {'theme':'dark', 'themeVariables': { 'primaryColor':'#ff6b6b','primaryTextColor':'#fff','primaryBorderColor':'#c92a2a','lineColor':'#4ecdc4','secondaryColor':'#45b7d1'}}}%%
graph LR
    A[💻 Local System] -->|1. Read Memory| B[💾 Memory Pages]
    B -->|2. Calculate| C[#️⃣ SHA256 Hash]
    C -->|3. Send ONLY Hashes| D[🔒 TLS Encrypted]
    D -->|4. HTTPS POST| E[☁️ Cloud Server]
    E -->|5. Validation| D
    D -->|6. Results| A

    F[🚫 NO Binary Data<br/>🚫 NO Source Code<br/>🚫 NO Credentials<br/>🚫 NO PII] -.->|Never Transmitted| D

    style A fill:#667eea,stroke:#764ba2,color:#fff
    style C fill:#f093fb,stroke:#f5576c,color:#fff
    style D fill:#4ecdc4,stroke:#2c7873,color:#fff
    style E fill:#fa709a,stroke:#fee140,color:#fff
    style F fill:#ff6b6b,stroke:#c92a2a,color:#fff

Security Guarantees:

🔒 TLS 1.2+ Required - All communications encrypted
✅ Certificate Validation - Server authenticity verified
#️⃣ Hash-Only Transmission - No binary data ever uploaded
🔐 No PII Storage - Zero personal information collected
📊 Audit Trail - Comprehensive logging for accountability

🎨 Visualization Example

The PowerShell GUI provides an interactive TreeMap visualization:

TreeMap Color Coding

Validation %	Color	Interpretation
100%	🟦 Blue	✅ Fully Validated - No Issues
90-99%	🟩 Green	⚠️ Mostly Valid - Minor Issues
70-89%	🟨 Yellow	⚠️ Some Modifications
50-69%	🟧 Orange	🚨 Multiple Issues Detected
20-49%	🟥 Red	🚨 Serious Problems
< 20%	🟪 Purple	💀 Critical - Likely Malware

💡 Use Cases

🔍 Incident Response

Rapidly assess system compromise by validating all running code against known-good hashes.

🛡️ Threat Hunting

Proactively hunt for code injection, process hollowing, and memory-resident malware.

🔬 Malware Analysis

Analyze memory dumps to identify modified or injected code regions.

🏗️ Forensic Investigation

Validate memory integrity as part of comprehensive forensic examination.

⚙️ Development & Debugging

Look up symbol information and structure definitions without downloading PDBs.

🤝 Contributing

We welcome contributions! Please see CONTRIBUTING.md for guidelines.

Areas for Contribution

📖 Documentation improvements
🐛 Bug fixes and enhancements
💡 New example scripts
🧪 Test cases and validation
🌍 Platform support (Linux binaries, macOS, etc.)

📜 License

This project is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0).

See LICENSE for full details.

🙏 Acknowledgments

Shane Macaulay (K2) - Original concept and implementation
Boe Prox - Invoke-Parallel and TreeMap algorithms
Volatility Foundation - Memory forensics framework
Microsoft - Symbol and PDB infrastructure
Azure Functions Team - Serverless platform

📞 Support & Contact

🐛 Issues: GitHub Issues
💬 Discussions: GitHub Discussions
📧 Email: See LICENSE for contact information

🔗 Related Projects

HashServer - Local JIT hash server for custom software
inVtero.net - Advanced memory analysis framework
Volatility - Memory forensics framework

Made with 💙 for the Security Community

⭐ Star this repository if you find it useful! ⭐

FilesExpand file tree

README_ENHANCED.md

Latest commit

History

README_ENHANCED.md

File metadata and controls

🔐 PDB2JSON Scripting Examples

🎯 What is PDB2JSON?

✨ Key Features

🚀 Quick Start

30-Second Setup

First Scan (PowerShell)

First Analysis (Python/Volatility)

First Symbol Lookup (Bash)

📚 Documentation

🛠️ Tools & Scripts

PowerShell Scripts

🔷 Test-AllVirtualMemory.ps1

🔷 Invoke-Parallel.ps1

🔷 Out-SquarifiedTreeMap.ps1

Python Tools

🐍 inVteroJitHash.py

Bash Scripts

🐚 dt.sh

🌐 Server API Endpoints

📋 typedef - Type Definitions

🔍 SymFromName - Symbol Lookup

📍 SymFromAddr - Address Resolution

🔄 Relocs - Relocation Information

#️⃣ PageHash - Hash Validation

⚡ JIT Hashing Explained

🔐 Security & Privacy

Privacy by Design

🎨 Visualization Example

TreeMap Color Coding

💡 Use Cases

🔍 Incident Response

🛡️ Threat Hunting

🔬 Malware Analysis

🏗️ Forensic Investigation

⚙️ Development & Debugging

🤝 Contributing

Areas for Contribution

📜 License

🙏 Acknowledgments

📞 Support & Contact

🔗 Related Projects
